Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Proman
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1500*650*2000mm
-
Hollow part volume:
-
2-20L
-
Power (kW):
-
11/21/36kw
-
Weight (KG):
-
600 KG
-
Product name:
-
Bottle Blowing Machine
-
Suitable bottle:
-
Drink Bottle
-
Capacity:
-
90/500/900/1800PCS/H
-
Bottle material:
-
PP PE PET PVC
-
Bottle type:
-
Pet Water Bottle
-
PLC:
-
SIMENS(Germany)
-
Bottle size:
-
2/5/20L
-
Product application:
-
Customized Bottle
-
Function:
-
Auto Blow Molding Machine
-
Processing:
-
Plastic Processing Machine
Quick Details
-
Neck Diameter(mm):
-
300 mm
-
Max.Bottle Diameter(mm):
-
300 mm
-
Max.Bottle Height(mm):
-
550 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Proman
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1500*650*2000mm
-
Hollow part volume:
-
2-20L
-
Power (kW):
-
11/21/36kw
-
Weight (KG):
-
600 KG
-
Product name:
-
Bottle Blowing Machine
-
Suitable bottle:
-
Drink Bottle
-
Capacity:
-
90/500/900/1800PCS/H
-
Bottle material:
-
PP PE PET PVC
-
Bottle type:
-
Pet Water Bottle
-
PLC:
-
SIMENS(Germany)
-
Bottle size:
-
2/5/20L
-
Product application:
-
Customized Bottle
-
Function:
-
Auto Blow Molding Machine
-
Processing:
-
Plastic Processing Machine

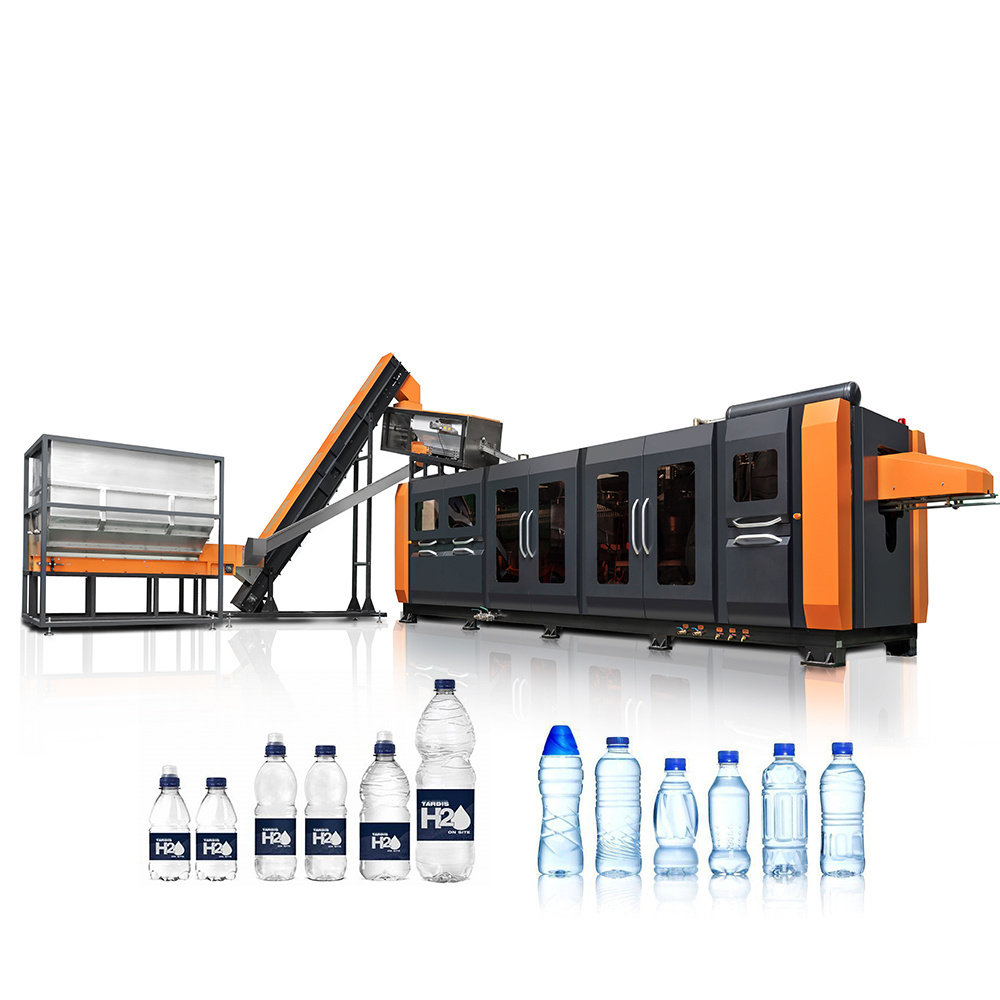

12000 Bottles Per Hour High Speed Servo Motor 250ml 500ml 1L 2L Bottle Blowing Machine Automatic
Product Description
Automatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our
Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high
production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate
steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral
water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high
production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate
steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral
water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
Advantages of Our Bottle Blow Molding Machine
1.Automatic perform input and ready bottle output system.
2.Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will
shake down to a minimum.
3.Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine
is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating,
temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature
with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and
production accounting, with automatic alarm, automatic fault detection and diagnose.
7.Storing more than 7 kinds specification for making bottle.
8.Adopt latest international air pneumatic.
9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
2.Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will
shake down to a minimum.
3.Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine
is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating,
temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature
with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and
production accounting, with automatic alarm, automatic fault detection and diagnose.
7.Storing more than 7 kinds specification for making bottle.
8.Adopt latest international air pneumatic.
9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Technical parameter
|
Model K-6
|
|
|
||
|
Bottle type specification
|
Cavity
|
6
|
||
|
|
Max.volume
|
2L
|
||
|
|
Bottle mouth maximum overall diameter
|
28-30mm
|
||
|
|
Bottle biggest diameter
|
100mm
|
||
|
|
Bottle maximum height
|
330mm
|
||
|
Capacity specification
|
Theory output
|
12000~14000BPH
|
||
|
|
Bottle type volume
|
500ML
|
||
|
|
Bottle type weight
|
17g
|
||
|
|
Bottle type
|
Round
|
||
|
Power specification
|
Light tube quantity
|
32pcs
|
||
|
|
Light tube power
|
1.25KW
|
||
|
|
Maximum heating power
|
40KW
|
||
|
|
All electric machine installation
|
49KW
|
||
|
|
Actual consumption
|
30%--60%
|
||
|
Air pressure specification
|
Work pressure
|
5-6kg/cm2
|
||
|
|
Blow bottle pressure
|
25-45kg/cm2
|
||
|
|
Higher -pressure gas consumption
|
8000Ltr/min
|
||
|
Air pressure specification
|
Work pressure
|
5-6 kg/cm2
|
||
|
|
Temperature range
|
10ºC
|
||
|
|
Consumption
|
8000kcal/hr
|
||
|
|
Forzen water flow
|
120L/min
|
||
|
Machine specification
|
Machine size
|
5.5x1.8x1.9
|
||
|
|
Machine weight
|
6.1tons
|
||
