Quick Details
-
Power:
-
10.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WALKER
-
Maximum Digging Height:
-
1850 mm
-
Maximum Digging Depth:
-
1750mm
-
Machine Weight:
-
1500 kg
-
Max Digging Radius:
-
2850 mm
-
Rated Speed:
-
2.5km/h
-
Marketing Type:
-
New Product 2024
-
Engine:
-
KUBOTA D722
-
Bucket width:
-
400mm
-
Heat dissipation mode:
-
Three cylinders, water cooled
-
Total length of track:
-
1230mm
-
Platform back turning radius:
-
740 mm
-
Max. Digging depth:
-
1750mm
-
Maximum lifting height:
-
2650 mm
-
Max. Dumping height:
-
1850 mm
-
Max. Digging radius on ground:
-
2850 mm
-
Min. Rotation radius:
-
1330 mm
Quick Details
-
Operating Weight:
-
1.2ton, 1.5TON
-
Bucket capacity:
-
0.03 m3
-
Engine Brand:
-
KUBOTA D722
-
Power:
-
10.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WALKER
-
Maximum Digging Height:
-
1850 mm
-
Maximum Digging Depth:
-
1750mm
-
Machine Weight:
-
1500 kg
-
Max Digging Radius:
-
2850 mm
-
Rated Speed:
-
2.5km/h
-
Marketing Type:
-
New Product 2024
-
Engine:
-
KUBOTA D722
-
Bucket width:
-
400mm
-
Heat dissipation mode:
-
Three cylinders, water cooled
-
Total length of track:
-
1230mm
-
Platform back turning radius:
-
740 mm
-
Max. Digging depth:
-
1750mm
-
Maximum lifting height:
-
2650 mm
-
Max. Dumping height:
-
1850 mm
-
Max. Digging radius on ground:
-
2850 mm
-
Min. Rotation radius:
-
1330 mm

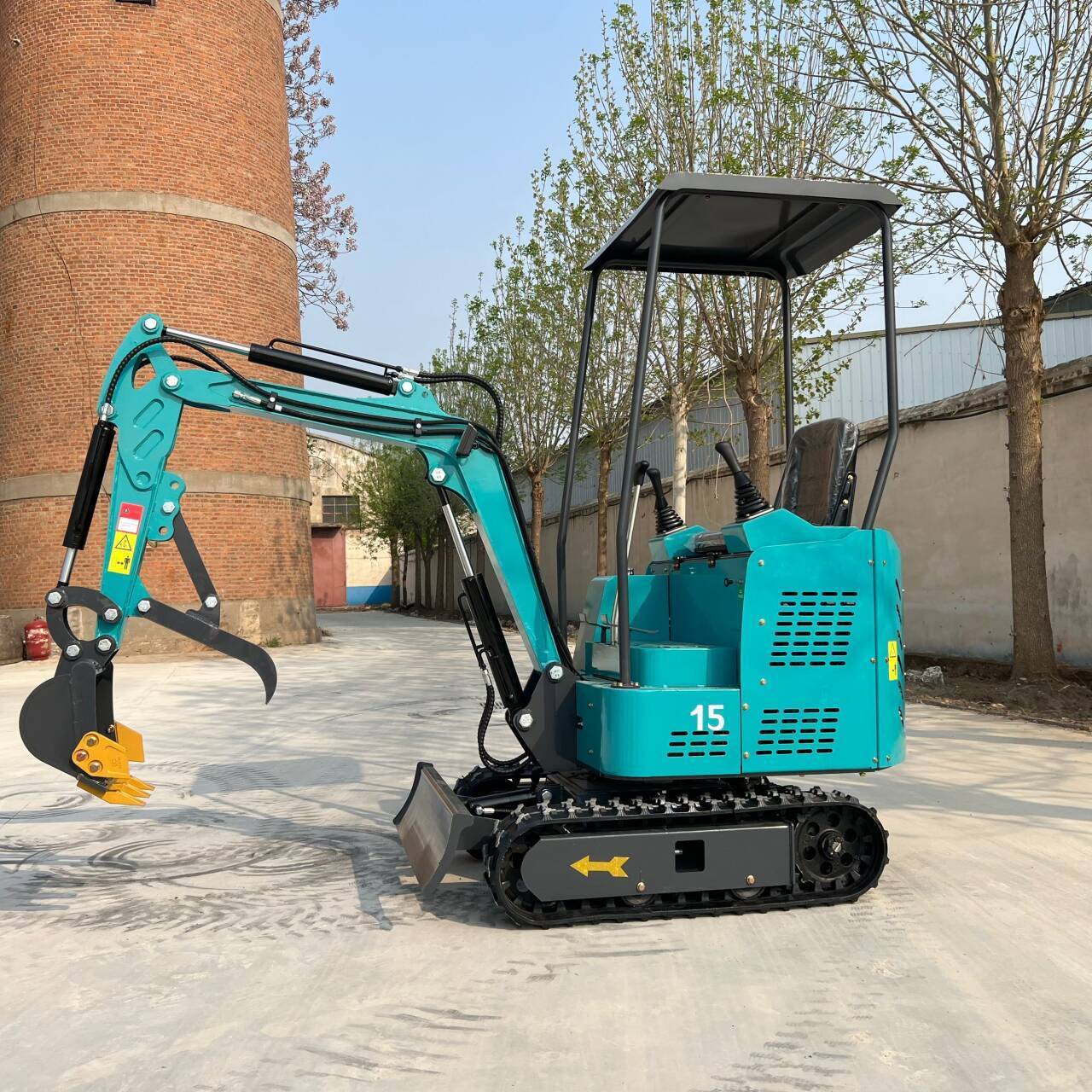

Product Description
A mini excavator's ability to move into difficult areas of sites makes it the ideal machine for digging holes in, particularly
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
Details Images
Operating lever on both sides
The standard is the mechanical pilot, and the hydraulic pilot can be upgraded.
Comfortable seat
With seat belt, adjustable front and rear. Upgradeable luxury seats
LED light
There are LED lights on the outside, inside and arm of the cab
Front glass up and down
The front glass can be adjusted freely
Swing boom
Standard side swing, big arm can move left to right
400mm bucket
Standard 400mm bucket, load 150KG
Specification
|
Model wk15
|
Main Dimensions
|
|
|
Weight 1500kg
|
Overall dimension(LxWxH) 2550x940x1380mm
|
|
|
Digging bucket capacity 0.025cbm/120kg
|
Wheelbase 770mm
|
|
|
Bucket width 380mm
|
Total length of track 1090mm
|
|
|
Engine KOOP(292F)
|
Platform ground clearance 380mm
|
|
|
Bore stroke double cylinder, Air cool
|
Platform back turning radius 733mm
|
|
|
Rated power 14kw/3000r/min
|
Chassis width 940mm
|
|
|
Displacement 0.794L
|
Track width 180mm
|
|
|
Travel speed 3.5km/h
|
Chassis ground clearance 380mm
|
|
|
|
Track height 320mm
|
|
|
Operating Range
|
|
|
|
Max. Digging depth
|
1750mm
|
|
|
Max. Vertical digging depth
|
1375mm
|
|
|
Max. Digging height
|
2610mm
|
|
|
Max. Dumping height
|
1850mm
|
|
|
Max.Digging radius on ground
|
2850mm
|
|
|
Min.Rotation radius
|
1330mm
|
|
|
Max.Upgrade height of bulldozer blade
|
345mm
|
|
|
Max. Digging depth of bulldozer blade
|
255mm
|
|
