Quick Details
-
Application:
-
Apartment,Villa,Living Room
-
Design Style:
-
Modern
-
Material:
-
Stainless Steel, PA66+30%GF
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIFEL
-
Model Number:
-
DFL-F1006
-
Function:
-
Multi-fit
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Training, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Apartment,Villa,Living Room
-
Design Style:
-
Modern
-
Material:
-
Stainless Steel, PA66+30%GF
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIFEL
-
Model Number:
-
DFL-F1006
-
Function:
-
Multi-fit
Products Description
|
Model No.
|
DFL-F1006
|
|
Norminal Pressure
|
≤10 bar
|
|
Adjustment Scale
|
0-5
|
|
Application Medium
|
cold and hot water for underfloor heating system manifold
|
|
Working Temperature
|
t≤70℃
|
|
Actuator Connection Thread
|
M30*1.5
|
|
Connection branch pipe
|
3/4" x ∅16 3/4" x ∅20
|
|
Connection thread
|
ISO228 standard
|
|
Branch Spacing
|
50mm
|
|
Specification
|
1“
|
|
No. of Circuits
|
2-12 loop
|
Characteristics

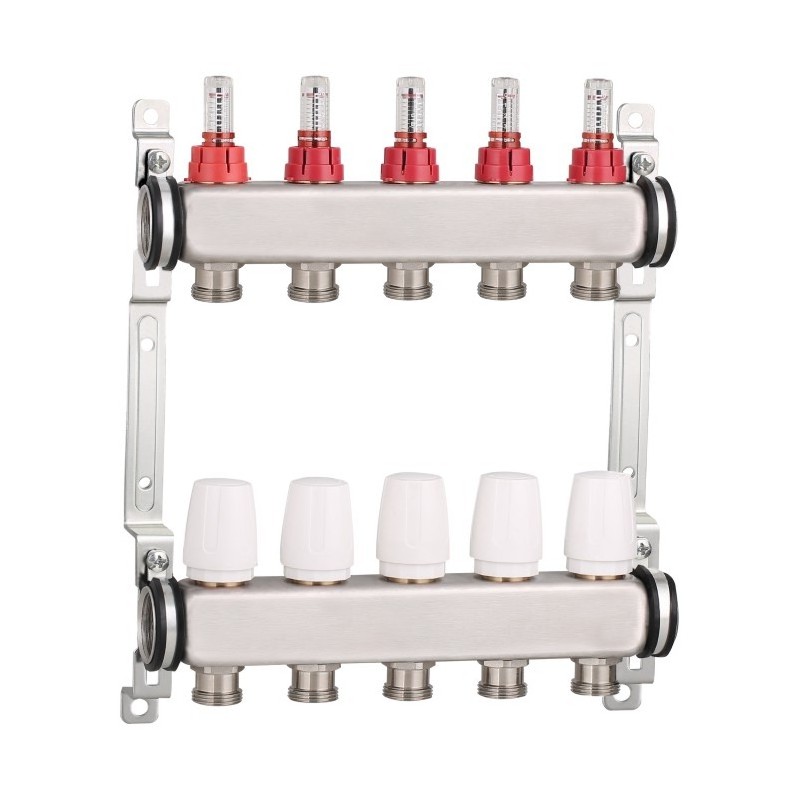

Hydraulic manifolds consist of two bars with an internal diameter of 1 inch, made of AISI 304 stainless steel, which ensures their maximum resistance to corrosion and thus guarantees long-lasting, trouble-free operation of the device. An additional element of the device's durability are special handles with rubber insulation to dampen vibrations and noise. The handles give the structure rigidity and at the same time maintain a stable distance between bars. Designed for operation in radiator systems, mixed systems or for surface heating systems - they function perfectly as a connector of heating system elements while optimizing the fitter’s work.
Advantages
* precise and solid workmanship
* high quality materials
* 12 models of each type
* execution: AISI 304 stainless steel (manifold bars)
* high quality materials
* 12 models of each type
* execution: AISI 304 stainless steel (manifold bars)
