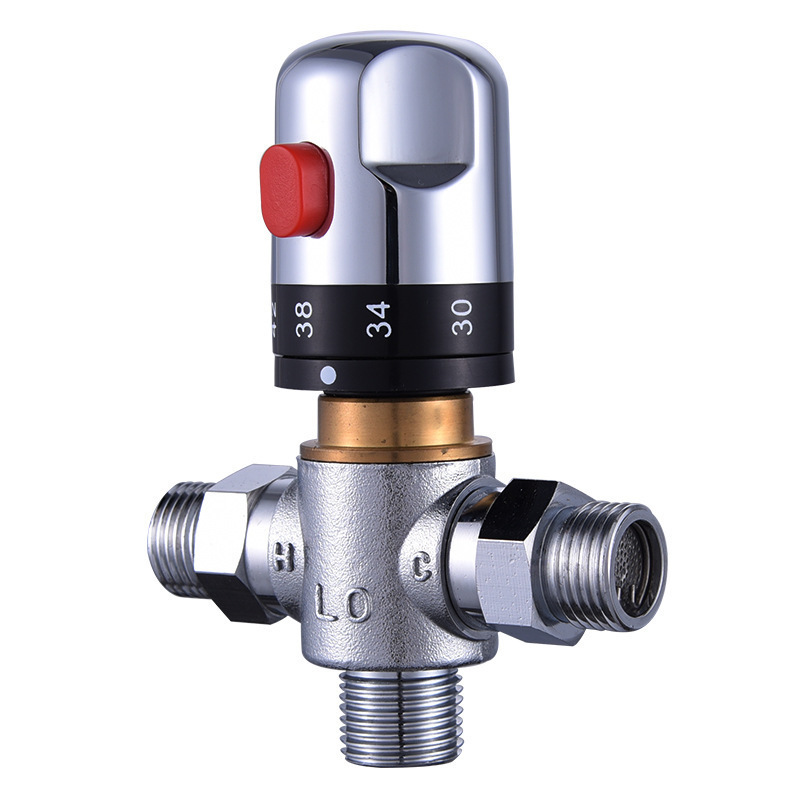

Brass Material Chrome Plated Hot & Cold Mixer Water Thermostatic Mixing Valve

Brass Material Chrome Plated Hot & Cold Mixer Water Thermostatic Mixing Valve

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

≥100 Pieces

US $8

≥1000 Pieces

US $7.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: ZHE

Quick Details

Project Solution Capability:: graphic design

Application:: Other

Design Style:: Modern

Place of Origin:: ZHE

Material:	Brass
Color:	Chrome
Water Pressure:	Working Pressure: 0.03-1.0Mpa, Recommend Pressure: 0.1-0.5Mpa
Temperature:	Inlet Cold Water: 5-29°c, Inlet Hot Water: 50-95°c, Mixing Water: 35-45°c, Adjustment Accuracy: ±2°c
Flow Rate:	11.67L/min in 1 Bar Water Pressure
Installation Type:	G1/2"
Usage:	Water Pipe
Packing:	1PCS / Box, 50PCS / Carton
Logo:	Xinli Brand, OEM is available
Certificate:	CE, RoHS Standards
Guarantee:	5 Years

PRESSURE & FLOW RATE

Pressure

psi / kPa

1 psi

5 psi

34kPa

10 psi

69kPa

15 psi

103kPa

20 psi

138kPa

30 psi

207kPa

Flow Rate

L / Min

4.5

9.0

12.5

15.1

17.6

28.2

GPM

0.98

2.00

2.70

3.30

3.90

6.20

Material: Brass main body
Material Analysis: Cu>=59%
Work pressure: 0.05Mpa-1Mpa
Ideal pressure: 0.1Mpa-0.5Mpa.Installation pressure release valve when exceed ideal pressure.
Standard pressure: Dynamic pressure0.3±0.02Mpa.
Water Pressure Testing: 1.6MPA
Air Pressure Testing: 0.6MPA
Cold water supply temperature: 4-29°C
Hot water supply temperature: 55-85°C
Proposed water supply temperature: 55-70°C
Out water temperature range: 20-55°C
The safety temperature: 38°C
Safety characteristic: If cold water supply fails ,flow rate will be reduced to virtually shut off which avoid the risk of scalding.
Temperature accuracy: Kept constant ±2°C for the setting.

Dimension	1/2" DN15	3/4" DN20	1" DN25
Water Pressure	0.03~1Mpa	0.03~1Mpa	0.03~1Mpa
Recommend Pressure	0.1~0.5Mpa	0.1~0.5Mpa	0.1~0.5Mpa
Cold Water Temperature	5~29°c	5~29°c	5~29°c
Hot Water Temperature	55~95°c	55~95°c	55~95°c
Mixing Water Temperature	30-60°c	30-60°c	30-60°c
Accuracy	±2°c	±2°c	±2°c
Preset	38°c	38°c	38°c
Flow Rate (0.3Mpa)	15L/Min	32L/Min	75L/Min
Hot & Cold Water Pressure Maximum Ratio	8:1	8:1	8:1
Connecting Nozzles	1~2 Pieces	3~6 Pieces	10 Pieces
