- Product Details
- {{item.text}}
Quick Details
-
Screw diameter (mm):
-
120 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOGDA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
20000*3000*3000MM
-
Power (kW):
-
160
-
Weight:
-
5000KGS
-
Main Extruder:
-
SJ120/38
-
Max product width:
-
700mm
-
Product thickness:
-
1.5-4mm
-
Effective width of Roller:
-
1000mm
-
Roller Diameter:
-
3*450mm
-
Extruder Power:
-
60kw
-
Contactor:
-
Schnerder
-
Supply water pressure:
-
3-5 bar
-
Screw hardness:
-
740
-
Barrel hardness:
-
940
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt
-
Output (kg/h):
-
300 - 400
-
Certification:
-
CE/ISO
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
38
-
Screw Material:
-
38CrMoAlA
-
Screw diameter (mm):
-
120 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOGDA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
20000*3000*3000MM
-
Power (kW):
-
160
-
Weight:
-
5000KGS
-
Main Extruder:
-
SJ120/38
-
Max product width:
-
700mm
-
Product thickness:
-
1.5-4mm
-
Effective width of Roller:
-
1000mm
-
Roller Diameter:
-
3*450mm
-
Extruder Power:
-
60kw
-
Contactor:
-
Schnerder
-
Supply water pressure:
-
3-5 bar
-
Screw hardness:
-
740
-
Barrel hardness:
-
940
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt
-
Output (kg/h):
-
300 - 400
-
Certification:
-
CE/ISO
Product Application Field
ABS, HIPS / GPPS refrigerator board
It is mainly used in the door, inner, drawer, water pan and water dispenser of refrigerator freezer.
ABS / PMMA Sanitaryware board
For bathroom products such as: bathtub, shower room, steam room, sink.
ABS / PC composite Baggage board
It is mainly used for various trolley cases, suitcases, leisure bags, etc.
ABS, ABS + PC Car plate
Main uses: car roof, dashboard; seat back plate, door panel, window frame; motorcycle, beach car, Walker, golf cart and other shell.
Product Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

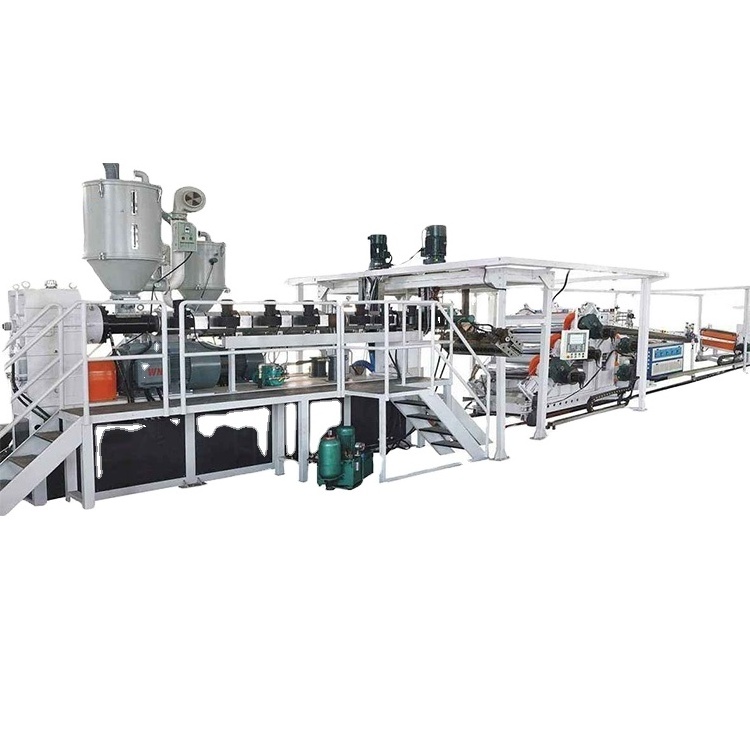

ABS/HIPS one/
multilayer Plate Sheet Production Extrusion Line
|
Model
|
SJ120/70/60-2200
|
SJ120/60/45-1800
|
SJ160/60-2200
|
||
|
Material
|
ABS/HIPS
|
|
|
||
|
Products Width
|
2200mm
|
1800mm
|
2200mm
|
||
|
Products Thickness
|
2-8mm
|
1-6mm
|
1-6mm
|
||
|
Max Extrusion Capacity
|
600kg/h
|
550kg/h
|
1200kg/h
|
||
Detailed Images
ABS/HIPS one/multilayer Plate Sheet Production Extrusion Lin
e
|
Item
|
SJ120/38 Single Screw Extruder
|
|
Screw Material
|
38CrMoAlA
|
|
Screw Diameter
|
120mm
|
|
L/D
|
38
|
|
Heating Power
|
60kw
|
|
Motor Brand
|
Siemens BEIDE
|
|
Cooling Way
|
Air Cooling
|
|
Item
|
Three-roller calendar
|
|
Roller length
|
1000mm
|
|
Roller material
|
#42CrMo
|
|
Product Thickness
|
1.5-4mm
|
|
Hardness
|
55HRC
|
|
Bearing
|
NSK
|
|
Driving Power
|
3*2.2kw
|
Guillotine
Cutting Width: 1000mm
Length counting: meter wheel counter
Guillotine type: hydraulic type
Cooling Stacker
Length: 10m
Cooling roller and treatment: aluminum rollers, oxidized,polished
Hydraulic Station: 3kw
Related Products
Packing&Shipping
After Sales Service
WE BOGDA WILL ARRANGE ENGINEERS TO CUSTOMERS' FACTORY,TRAINNING, COMISSIONING,INSTALLATION.
