Quick Details
-
Window:
-
PVC Widow/Aluminum Door
-
Door:
-
Steel Security Door
-
Wall Panel:
-
75mm Glass wool sandwich panel
-
Roof Board:
-
corrugated steel plate
-
Floor:
-
18mm MGO Board
-
Column:
-
3mm Galvanized
-
Color:
-
Blue, Gray, Red, White
-
Performance:
-
Seismic Resistance,Wind Resistance,Fire Resistance
-
Size:
-
6058mm(L)*2438mm(W)*2570mm(H)
-
LIfe TIme:
-
20-25 years
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UPS
-
Model Number:
-
Container House
-
Window:
-
PVC Widow/Aluminum Door
-
Door:
-
Steel Security Door
-
Wall Panel:
-
75mm Glass wool sandwich panel
-
Roof Board:
-
corrugated steel plate
-
Floor:
-
18mm MGO Board
-
Column:
-
3mm Galvanized
-
Color:
-
Blue, Gray, Red, White
-
Performance:
-
Seismic Resistance,Wind Resistance,Fire Resistance
-
Size:
-
6058mm(L)*2438mm(W)*2570mm(H)
-
LIfe TIme:
-
20-25 years

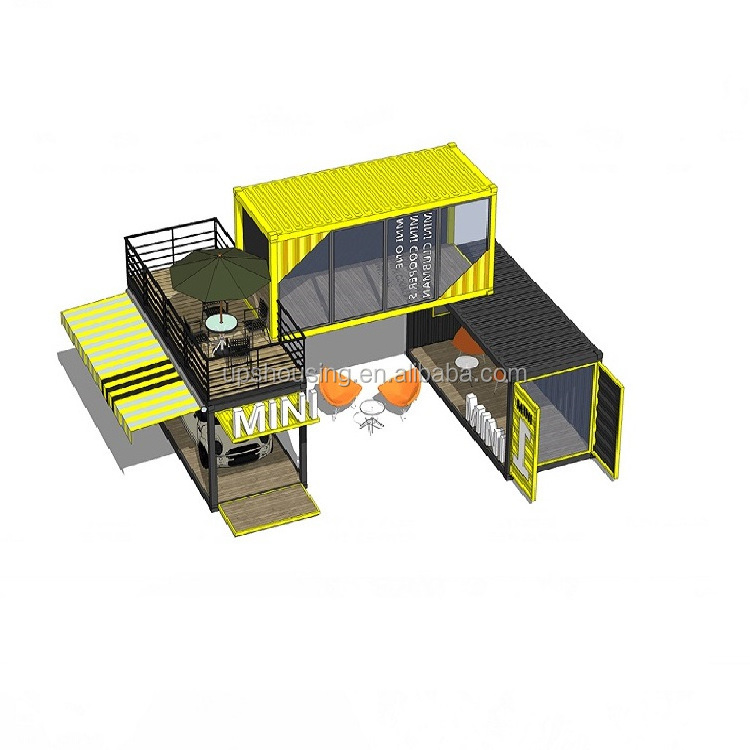

Quick Assembly Container House Plans
Container house
Container house refers to a house with windows
and doors,reconstructed a little with
containers as basic materials.
Such container houses are commonly found
in the construction sites and used as dormitories for workers.
Quick Assembly container house plans Plans
| Outside Size | 6058mm(L)*2438mm(W)*2891mm(H) |
| Roof Board | Corrugated Steel Plate |
| Wall Panel | 75mm thickness Panel |
| Floor | 18mm Mgo Board |
| Door | 900mm*2000mm |
| Window | W800mm*H1000mm PVC |
| Frame | Q235 |
| Material | All Steel Galvanized |
Roof&Base Frame of container house plans
Introduction of the bottom of the container house
Frame made of Q345 s teel board, seamless bended, seamless welded, surface galvanized. Painted with anticorrosive paints, laying materials: laminate board, PVC board, blockboard, cement fiber board etc.
Introduction of the Wall System
1. Standard wood pattern wall panel
2. Standard blue wall panel
3. Inner door standard wall panel
4. External door(steel security door)fitted with standard yellow wall panel
5. External door(steel security door)fitted with standard block pattern wall panel
6. External door(steel security door)fitted with standard blue wall panel
7. Window(PVC aluminium alloy window) fitted in the standard wall panel) size:800*1,000mm
8. Window(PVC aluminium alloy window) fitted in the standard wooden pattern wall panel) size:800*1,000mm
1. Perfect for modular/prefab site offices,cabins,warehouse,villa,toliet,shop,hotel,camp,office.
2.Efficient , low cost designs that can be customized for end user requirements.
3.Easy for low skilled workers to assemble.
4.The light steel frame structure is strong and reliable.
5.Many modular units can be stacked and linked together to create more space.
6.Neat inside : plumbing and wires are hidden into the sandwich panel.
Checking&Packing
1.Checking
Carefully check the shipping list. making sure no mistake.
2.Packing
Option one: a standard container house packed in one flat pack,One 40 HQ' Container Can load 6 sets.
