1. Lifting Capacity: 1-20 ton
2. Lifting Height: 3-30m, or customized according to customer request
3. Power Supply: 220v/380v/400v/415v/440v, 50hz/60hz, 3phase/single phase
4. Traveling Speed: 11m/min, 21m/min
5. Lifting Speed: 6.8m/min, 5.6m/min, 3.4m/min, 2.8m/min
- Product Details
- {{item.text}}
Quick Details
-
Lift Speed:
-
8m/min
-
Weight (KG):
-
500 kg
-
Product name:
-
Building Materials Lifting Machine Electric Wire Rope Hoist
-
Lifting height:
-
6-30M
-
Lifting capacity:
-
0.5 Ton - 20 Ton
-
Lifting speed:
-
3.5/7/8/3.5(0.35)/8(0.8)m/min
-
Color:
-
Customer Required
-
Power supply:
-
220V/380V 50HZ
-
Type:
-
CD1/MD1
-
Brand:
-
sevencrane
-
Control Method:
-
Pendant +Remote(Customized)
-
Work duty:
-
A3-A4
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sevencrane
-
Lift Speed:
-
8m/min
-
Weight (KG):
-
500 kg
-
Product name:
-
Building Materials Lifting Machine Electric Wire Rope Hoist
-
Lifting height:
-
6-30M
-
Lifting capacity:
-
0.5 Ton - 20 Ton
-
Lifting speed:
-
3.5/7/8/3.5(0.35)/8(0.8)m/min
-
Color:
-
Customer Required
-
Power supply:
-
220V/380V 50HZ
-
Type:
-
CD1/MD1
-
Brand:
-
sevencrane
-
Control Method:
-
Pendant +Remote(Customized)
-
Work duty:
-
A3-A4
Wire rope hoist
is suitable for civil and construction works of construction and installation companies, factories and mines, as well as mechanical equipment for infrastructure construction projects such as bridge construction, electric power, ship, automobile manufacturing, construction, highway, bridge, metallurgy, mine, slope tunnel, well management and protection, etc.
CD MONORAIL HOIST
|
0.5ton-20ton monorail hoist wire rope electric hoist
|
|
|
|
|
|
|||||
|
Model
|
|
CD
|
|
MD
|
|
|||||
|
Capacity（T)
|
|
0.5, 1, 2, 3, 5
|
10, 16, 20
|
0.5, 1, 2, 3, 5
|
10, 16, 20
|
|||||
|
Travelling
mechanis
|
Travelling speed（m/min）
|
10, 20, 30 or frequency inverter control
|
|
10, 20, 30 or frequency inverter control
|
|
|||||
|
|
Motor（kw）
|
1×0.4, 1×0.8
|
2×0.8，4×0.8
|
1×0.4, 1×0.8
|
2×0.8，4×0.8
|
|||||
|
Lifting mechanism
|
Lifting speed(m)
|
8
|
7，3.5
|
8/0.8
|
7/0.73.5/0.35
|
|||||
|
|
Lifting height(m)
|
6, 9, 12, 18, 24, 30
|
9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
9, 12, 18, 24, 30
|
|||||
|
|
Motor(kv)
|
0.8, 1.5, 3, 4.5, 7
|
13
|
0.8/0.2, 1.5/0.2, 3/0.4
|
13/1.5
|
|||||
|
Duty class
|
M3
|
|
|
|
|
|||||
|
Power source
|
380V, 50Hz, 3 phase (or other standard)
|
|
|
|
|
|||||
|
Working temperature
|
(-20-40°C)
|
|
|
|
|
|||||
|
Branch of rope
|
2 ropes （0.5t-5t），4 ropes（10t-20t）
|
|
|
|
|
|||||
|
Brake
|
Mounted in motors
|
|
|
|
|
|||||
|
Control model
|
Pendant pushbutton control or wireless remote control
|
|
|
|
|
|||||
Monorali hoist
is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket.
wire rope hoist
hold the characteristic as compact structure, light dead weight and easy operation.
Electric hoist
structure of electric hoist is made of high-strength tensile shell or die-casting aluminum shell,which is precisely manufactured by thin-wall extrusion process.
Single Overhead Crane
Portable Gantry Crane
Jib Crane

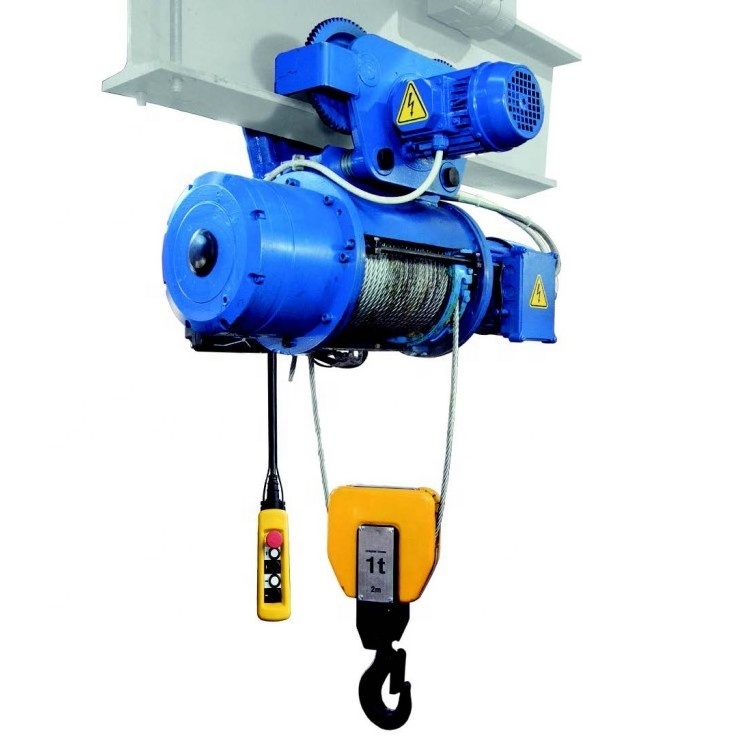

The CD and MD type wire rope electric hoist
is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed.
Travelling Motor
Lifting Motor
Hoist Main Body
Hoist Hook
Pendent Control
Rope Guider
Wheel Trolley
Electrical Box
Limit Switch
