Quick Details
-
Cutting Area:
-
430*900mm
-
Cutting force:
-
22 tons
-
Application:
-
leather
-
Video:
-
Available
-
Product name:
-

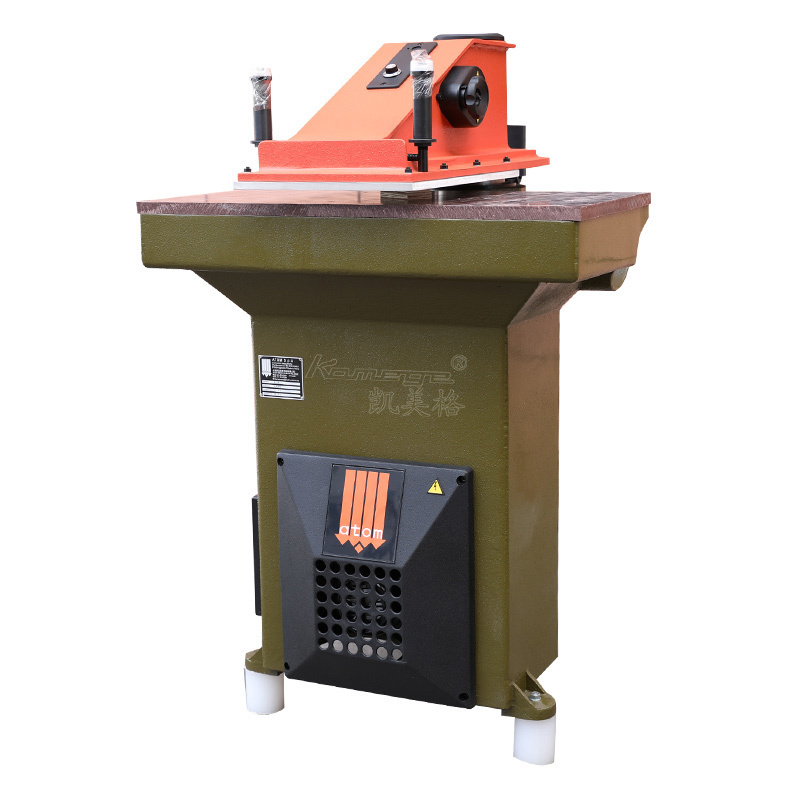

Atom VS922 Die Cutting Machine Clicking Press Cutting Machine
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Atom
-
Model Number:
-
VS922
-
Cutting Area:
-
430*900mm
-
Cutting force:
-
22 tons
-
Application:
-
leather
-
Video:
-
Available
-
Product name:
-
Atom VS922 Die Cutting Machine Clicking Press Cutting Machine
-
After Warranty Service:
-
Field maintenance and repair service
Product Description
The Atom 70-year experience in designing and manufacturing cutting presses assures its products of their great reliability,low consumption,no maintenance and quick return of investment.The unique electro mechanic components designed by Atom grants:constant cutting pressure during the whole working day,maximum working speed,incomparable cutting accuracy,maximum arm rotation lightness for the minimum operator’s fatigue.The machine is with automatic stroke-end setting-up to cut with dies of different heights without any adjustment and single potentiometer.
Features
CAST IRON BASE :Cast iron base, very resistant to stress, it ensures long-lasting and reduces noise level.
TIME INTERLOCK SYNCHRONIZATION :Push button controls with time interlock synchronization allow to match maximum operator’s safety and ease of use.
PROGAMMABLE CUT-COUNTER :The optional programmable cut-counter allows to control the exact number of pieces cut or to plan the automatic stop of the cutting session as the planned quantity is reached.
24 VERSIONS AVAILABLE :The range of Atom oildynamic cutting presses allows to choose among 24 different versions to satisfy all the cutting needs in many industrial fields.
|
Model
|
VS922
|
|
Country of origin
|
China
|
|
Manufacturer year
|
2010
|
|
Cutting table size(mm)
|
900*430
|
|
Head size(mm)
|
370
|
|
Max cutting force(ton)
|
20
|
|
Net weight(kg)
|
630
|
|
Dimensions(Length,width,height)mm
|
900*900*1400
|
