Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGDA
-
Weight:
-
6000 KG
-
Power:
-
15kw
-
Name:
-
Waste cotton yarn OE spinning machine rotor spinning machine
-
Gauge:
-
Maximum 600
-
Doffing Speed:
-
With maximum of 200
-
Draft Ratio:
-
20-280
-
Diameter of Revolving Cup:
-
33/34/36/40/50/54
-
Combing RollerSpeed(rpm):
-
6000-11000
-
Spindle Distance:
-
230
-
Density of Optimal Yarn:
-
120-15 (5-40)
-
Advantage:
-
High Performance Energy Saving
-
PLC:
-
Delta, Taiwan
Quick Details
-
Marketing Type:
-
New Product
-
Application:
-
Spinning Production Line
-
Production Capacity:
-
HIGH SPEED
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGDA
-
Weight:
-
6000 KG
-
Power:
-
15kw
-
Name:
-
Waste cotton yarn OE spinning machine rotor spinning machine
-
Gauge:
-
Maximum 600
-
Doffing Speed:
-
With maximum of 200
-
Draft Ratio:
-
20-280
-
Diameter of Revolving Cup:
-
33/34/36/40/50/54
-
Combing RollerSpeed(rpm):
-
6000-11000
-
Spindle Distance:
-
230
-
Density of Optimal Yarn:
-
120-15 (5-40)
-
Advantage:
-
High Performance Energy Saving
-
PLC:
-
Delta, Taiwan
Main Feature

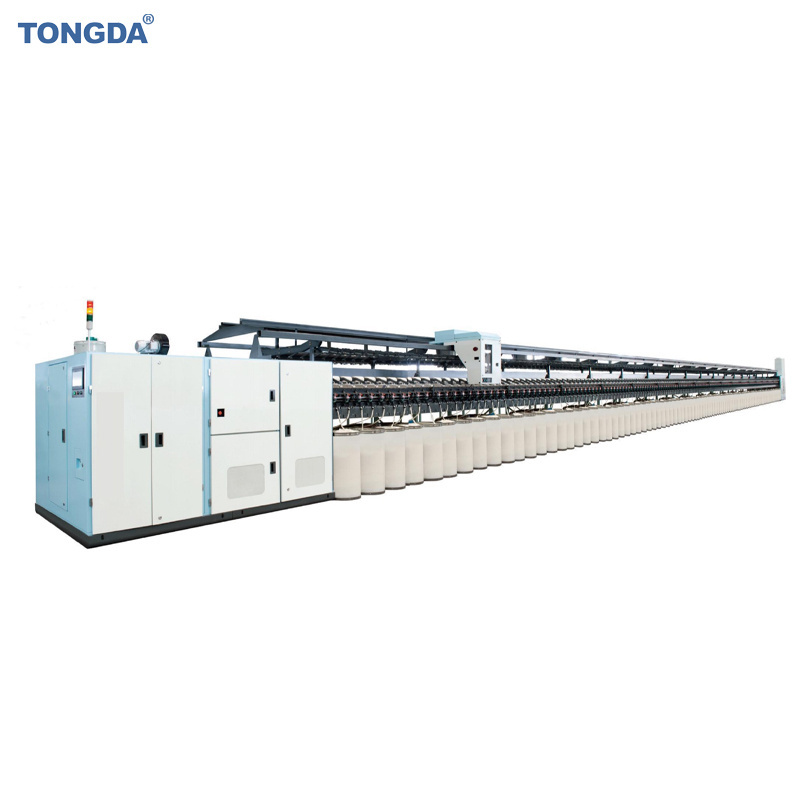

The open end spinning machine OE40D equipped with an auto-doffer robot, is suitable for yarn count 3s to 40s , and raw material can be both raw cotton and waste cotton, the maximum rotor Number is up to 720, machine speed is up to 110000RPM. Modular design and abundant optional accessories to meet the needs of different customer. More electronic technology applications make machine smarter and more efficient. lnnovative auto doffing device can be as option, which increase production efficiency greatly.
Product Details
The OE40 rotor spinning machine uses new spinning technology, optimized fiber delivery channels, and adjustable waste removal system to adapt to a variety of raw materials.
1.Spinner-Heart of the Rotor Spinning
It fully collects and analyzes the experimental data, optimizes the channel of spinner to realize a perfect combination between optimal spinning and yarn quality;With the patent trash-removal system and it can process more raw materials of different kinds, making the customers face the market changes at a leisurely pace and reducing the labor intensity of workers; The opening of channel is covered with ceramics of high strength, reducing the wear-and-tear of fiber to cavity and prolonging the service life.
1.Spinner-Heart of the Rotor Spinning
It fully collects and analyzes the experimental data, optimizes the channel of spinner to realize a perfect combination between optimal spinning and yarn quality;With the patent trash-removal system and it can process more raw materials of different kinds, making the customers face the market changes at a leisurely pace and reducing the labor intensity of workers; The opening of channel is covered with ceramics of high strength, reducing the wear-and-tear of fiber to cavity and prolonging the service life.
2.Optimal Joint System-The Promise Of High-Speed Spinning
The standard pneumatic lifting device whose breaking response is 0.1 sec only; millions of experiments have proved it has high reliability. With the unique joint system, the roller is prior to the winding roller to guide the yarn when jointing to avoid the influence of bobbin to the quality of the joint The exclusive mathematic jointing mode and stepping roller feeding accurately control the feeding volume and time to ensure the strength and shape of joint.
The standard pneumatic lifting device whose breaking response is 0.1 sec only; millions of experiments have proved it has high reliability. With the unique joint system, the roller is prior to the winding roller to guide the yarn when jointing to avoid the influence of bobbin to the quality of the joint The exclusive mathematic jointing mode and stepping roller feeding accurately control the feeding volume and time to ensure the strength and shape of joint.
3.Automatic Doffing Device-Beginning Of Intelligent beginning of Intelligent
It starts the mode of semiautomatic machine to instead of labor work, to realize automatic doffing with no break ends, to reduce labor intensity. High efficiency, from fixed position to doffing, one standard doffing working time is within 20s. Intelligent, can realize automatic and manual mode of doffing.
It starts the mode of semiautomatic machine to instead of labor work, to realize automatic doffing with no break ends, to reduce labor intensity. High efficiency, from fixed position to doffing, one standard doffing working time is within 20s. Intelligent, can realize automatic and manual mode of doffing.
4.Electronic Tension System The digital control can reduce the complicated mechanical adjustment work.
The user can directly adjust the tension coefficient in the monitor of headstock, and the adjustment precision can reach 0.001, which ensures the stable forming for winding package.
5.Automatic Take Out Impurity System The system will reduce the labor intensity of the operator, and also provide a more stable negative pressure environment for the machine, which makes spinning production more stable and improves the consistency of the yarn quality.
6.Positive Pressure Cooling System The system can reduce the accumulation of flying and dust in the inner cavity of headstock and tail box, reduce the labor intensity of the maintenance worker, improve the heat cooling condition of the electrical components,thereby increasing the stability of the running of the machine and reducing the energy consumption.
Main Technical Data
|
Item
|
unit
|
Technical index
|
|
|
Rotational Speed of Revolving Cup
|
r/min
|
45000-110000 independent drive from two way, and with frequency conversion adjustment
|
|
|
Doffing Speed
|
m/min
|
With maximum of 200
|
|
|
Doffing Angle
|
Degree
|
30°-42°step-less regulation
|
|
|
Rotational Speed of Opening Roller
|
r/min
|
6000-11000 independent drive from two way. and with frequency conversion adjustment.
|
|
|
Air capacity of Air Exhaust Fan
|
m3/h
|
≤9000, regulated by frequency transformer
|
|
|
Density of Optimal Yarn
|
tex(Ne)
|
120-15 (5-40)
|
|
|
Length of Optimal Fiber
|
mm
|
≤60mm
|
|
|
Draft Ratio
|
Times
|
20-280
|
|
|
Scope of Twist
|
t/m
|
200-2000
|
|
|
Feeding Bar
|
ktex
|
2.5-7
|
|
|
Draft Ratio of Tension
|
Times
|
0.6-1.5
|
|
|
Diameter of Opening Roller
|
mm
|
65
|
|
|
Diameter of Revolving Cup
|
mm
|
33/34/36/40/50/54
|
|
|
Spindle Distance
|
mm
|
230
|
|
|
Total Spindle
|
Spindle
|
≤720
|
|
|
The Number of spindles of middle stage in first section
|
Spindle
|
20
|
|
|
Specification of Flat Bobbin (Inner Diameter x Length)
|
mm
|
Φ42 (Rolling edge) /54 (Straightedge )
Φ42 (Rolling edge) /50 (Straightedge )
|
|
|
Specification of Taper Bobbin (Inner Diameter x Length)
|
mm
|
2°Φ44 (Rolling edge) /65 (Straight edge)
|
|
|
Specification of Can (Outer Diameter / Height)
|
mm
|
16‘’(Φ400 I、18" (Φ450)、20" (Φ530) /standard height 900. 1100 is optimal
|
|
|
Specification of Rolling (Diameter)
|
mm
|
As to flat bobbin. Φ300 is at maximum; As to taper bobbin, Φ270 is at maximum.
|
|
|
Weight of A Full Bobbin
|
kg
|
With maximum of 4
|
|
|
Lifting Device
|
|
Automatic air drive lifting
|
|
|
Length of Device
|
m
|
≤77.8
|
|
|
Weight of Device
|
kg
|
Head+ the middle part in N section+ Tail (N≤30) 3500+800*N+3100
|
|
|
Maximum Loading Volume
|
kw
|
195
|
|
