Quick Details
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
630 mm
-
Table Size:
-
1170*600 mm
-
Overall Dimensions:
-
1300*740*1650 mm
-
Weight:
-
740 kg
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
630 mm
-
Table Size:
-
1170*600 mm
-
Overall Dimensions:
-
1300*740*1650 mm
-
Weight:
-
740 kg
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements

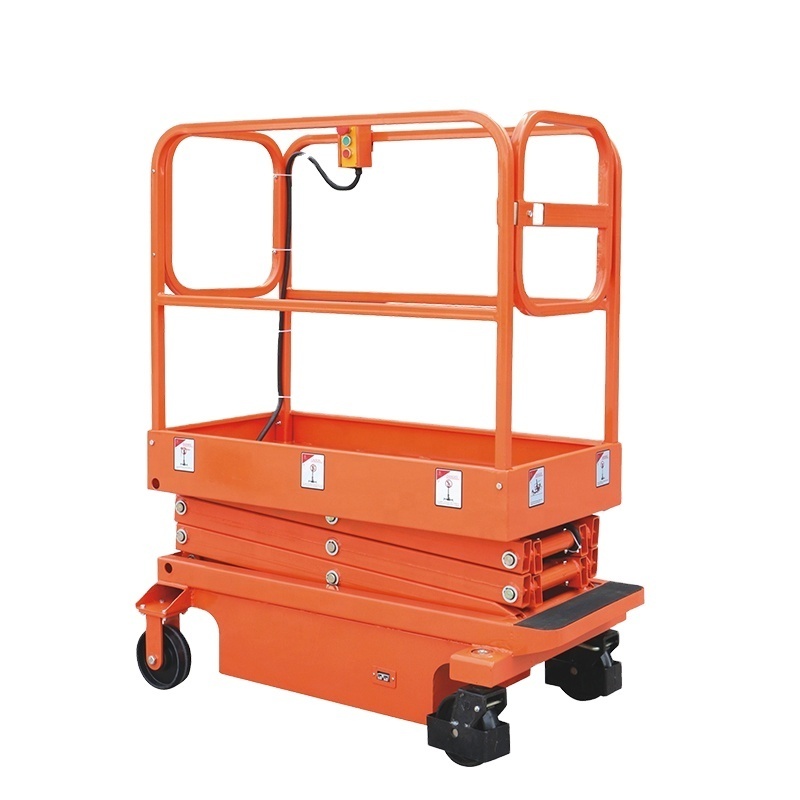

3.9M Max height Mini Semi Electric Scissor Lift
Production description
Now it is widely used in supermarket, low height maintenance, decoration company and domestic maintenance.
Portable Man Lift moves by man manually and lifts by battery power.
|
Model Type |
SJY3.0 |
SJY3.9 |
SJY4.8 |
|
Max.Platform Height(MM) |
3000 |
3900 |
4800 |
|
Min.Platform Height(MM) |
630 |
700 |
780 |
|
Platform Size(MM) |
1170*600 |
1170*600 |
1170*600 |
|
Rated Capacity(KG) |
300 |
300 |
240 |
|
Lifting Time(S) |
33 |
40 |
40 |
|
Descent time(S) |
30 |
30 |
30 |
|
Lifting Motor(V/KW) |
12/0.8 |
||
|
Battery Charger(V/A) |
12/15 |
||
|
Overall Length(MM) |
1300 |
||
|
Overall Width(MM) |
740 |
||
|
Guide rail height(MM) |
1100 |
||
|
Overall Height with Guardrail (MM) |
1650 |
1700 |
1870 |
|
Overall Net Weight(KG) |
360 |
420 |
450 |
Configurations:
1.Up-down control panel on the body
2.Up-down control panel on the platform
3.Electric motor and hydraulic pump station
4.High strength hydraulic cylinder
5.Emergency button
6.Durable battery
7.Battery charger
8.Emergency decline button
9.Safety support legs
Safety Precautions:
1.Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2.Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3.Emergency decline valve: it can go down when you meet an emergency or the power off.
Anti-dropping device: Prevent falling of platform
