Quick Details
-
Model:
-
SRC32
-
Product Name:
-
Pneumatic Air Cylinder
-
Working Medium:
-
Air
-
Package:
-
1pc/Box
-
Usage:
-
Pneumatic Cylinder
-
Thread size:
-
G1/8
-
Color:
-
Black
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Material:
-
Strong box, Aluminium alloy
-
Model:
-
SRC32
-
Product Name:
-
Pneumatic Air Cylinder
-
Working Medium:
-
Air
-
Package:
-
1pc/Box
-
Usage:
-
Pneumatic Cylinder
-
Thread size:
-
G1/8
-
Color:
-
Black

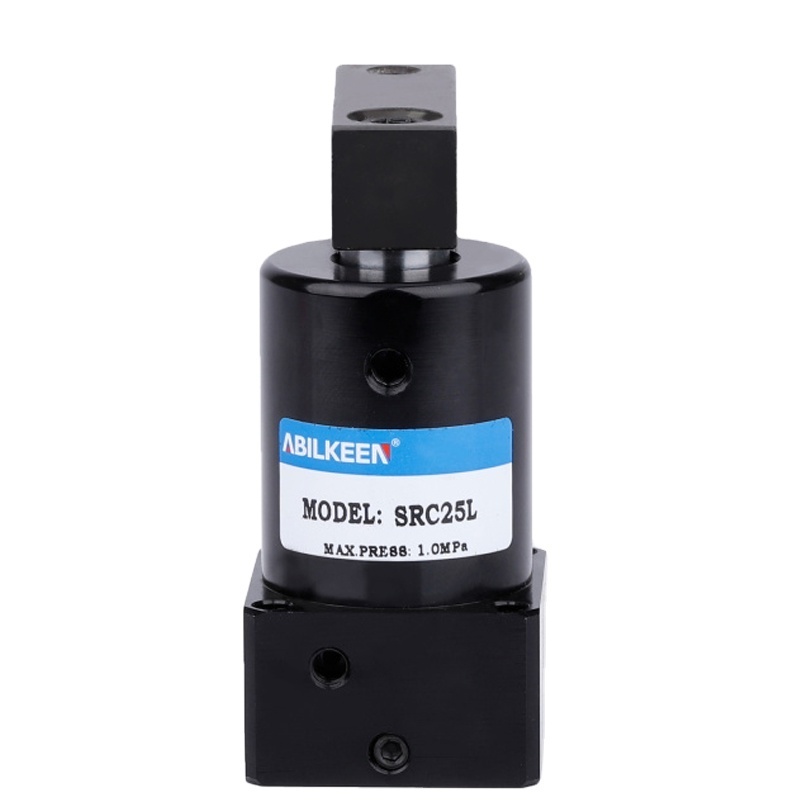

Threaded Interface Rotation Stroke Piston Rod Motion Rotation Angle SRC Standard Cylinder
Operating Principle:
The Piston in the Cylinder Bears the Thrust or Tension Generated by Air Pressure, Which Acts Directly on the Piston Rod Connected with the Piston, and then Moves Back and Forth from the Piston Rod Connected to the Load Workpiece.
Feature:
SRC Series Rotary Cylinder
Motion pattern:Double Action
Application:Pneumatic
Structure:Piston Cylinder
Material: Stainless steel
Double acting double out system
Made of high-quality materials, resistant to rust and corrosion, and durable.
Easy to install and remove, easy to operate, no additional tools or accessories required.
The forces allowed at different speeds are different .
Adjustable stroke
Working Fluid:Air
|
Model |
SRC25 |
SRC32 |
SRC40 |
SRC50 |
SRC63 |
|
Bore size (mm) |
25 |
32 |
40 |
50 |
63 |
|
Thread size |
M5*0.8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
|
Rotary angle |
90° |
||||
|
Rotating stroke |
11 |
13 |
13 |
15 |
15 |
|
Clamped stroke |
11 |
13 |
13 |
15 |
15 |
|
MAX Cylinder Force |
200N |
360N |
630N |
980N |
1680N |
|
Piston size |
14 |
16 |
16 |
20 |
20 |
|
Operation pressure |
0.1-0.9MPa |
||||
