- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TEK-3030
-
Material:
-
Plastic, ABS Plastic
-
Color:
-
0, Black
-
Type:
-
0
Quick Details
-
Warranty:
-
6months
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Eliteck
-
Model Number:
-
TEK-3030
-
Material:
-
Plastic, ABS Plastic
-
Color:
-
0, Black
-
Type:
-
0
Product Description
Specification
|
item
|
value
|
|
Warranty
|
6months
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Fujian
|
|
Brand Name
|
Eliteck
|
|
Model Number
|
TEK-3030
|
|
Material
|
ABS Plastic
|
|
Color
|
Black
|

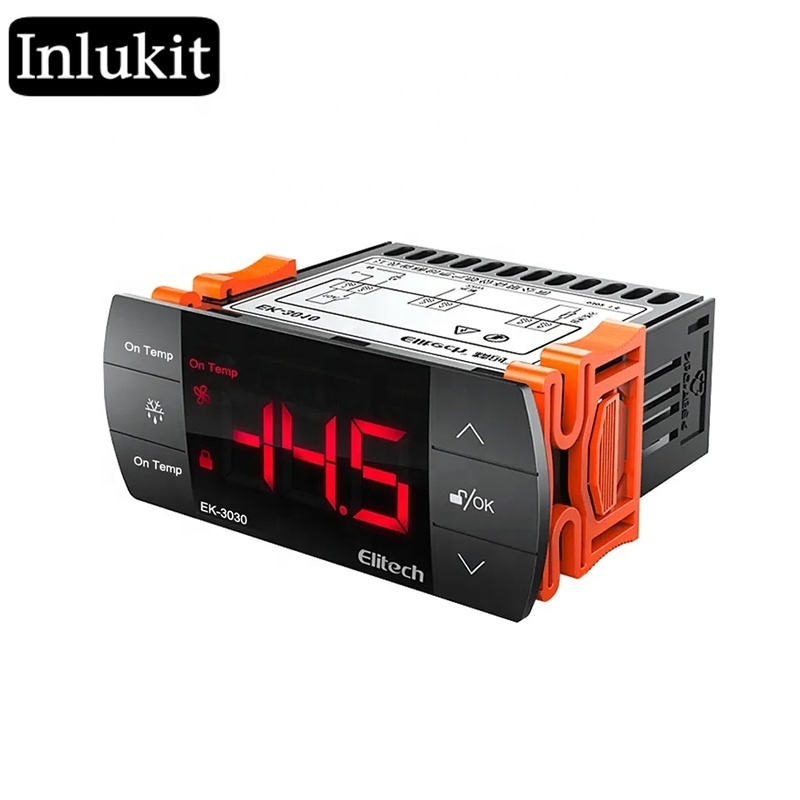

Thermostat Temperature Controller for Cold
Storage Freezers Refrigeration and Defrosting Fan
Features
1.
Dual-way sensor input: cabinet temperature sensor and defrost sensor.
2. Multiple defrost control modes, more stable and energy saving, avoid cold storage swell.
3. Three way control output: Refrigeration, defrost and fan.
4. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
5. Six touch key design, quick parameter setting, easy operation.
6. It could measure, display and control temperature, with the function of temperature calibration, and temperature over
temperature alarm and sensor failure alarm.
7. one key recovery of the factory default value, support parameters preset.
8. It adopts touch key design wit the key lock function.
Specifications
1) Measuring range: -40℃~99℃
2) Controlling range: -40℃~85℃
3) Accuracy: -30℃~50℃, ±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution: 0.1℃ / 1℃
5) Mounting size: 71mm*29mm
6) Power supply: 220±10%(VAC), 50/60Hz
7) Power consumption: <5W
8) Work ambient temperature: -5℃~60℃; work ambient humidity: 10%~90% non condensing
9) Storage temperature: -25℃~75℃
10) Senor type: NTC(10KΩ/25℃, B value 3435K)
11) Sensor length: 2M
Package:
1 X temperature Controller
1 X sensor Length: 2M
1.
Dual-way sensor input: cabinet temperature sensor and defrost sensor.
2. Multiple defrost control modes, more stable and energy saving, avoid cold storage swell.
3. Three way control output: Refrigeration, defrost and fan.
4. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
5. Six touch key design, quick parameter setting, easy operation.
6. It could measure, display and control temperature, with the function of temperature calibration, and temperature over
temperature alarm and sensor failure alarm.
7. one key recovery of the factory default value, support parameters preset.
8. It adopts touch key design wit the key lock function.
Specifications
1) Measuring range: -40℃~99℃
2) Controlling range: -40℃~85℃
3) Accuracy: -30℃~50℃, ±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution: 0.1℃ / 1℃
5) Mounting size: 71mm*29mm
6) Power supply: 220±10%(VAC), 50/60Hz
7) Power consumption: <5W
8) Work ambient temperature: -5℃~60℃; work ambient humidity: 10%~90% non condensing
9) Storage temperature: -25℃~75℃
10) Senor type: NTC(10KΩ/25℃, B value 3435K)
11) Sensor length: 2M
Package:
1 X temperature Controller
1 X sensor Length: 2M
Packing & Delivery
1 X temperature Controller
1 X sensor Length: 2M
1 X sensor Length: 2M
