Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Model Number:
-
PB-1000
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500mmX3000mmX1950mm
-
Weight:
-
1000 KG
-
Product name:
-
Plastic PE Air Bubble Film Bag Making Machine
-
Application:
-
bubble mailer / envelope bag for courier bags
-
Speed:
-
200pcs/min
-
Type of bag:
-
Side Seal / Hot Seal Hot Cut
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
mailer bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Model Number:
-
PB-1000
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500mmX3000mmX1950mm
-
Weight:
-
1000 KG
-
Product name:
-
Plastic PE Air Bubble Film Bag Making Machine
-
Application:
-
bubble mailer / envelope bag for courier bags
-
Speed:
-
200pcs/min
-
Type of bag:
-
Side Seal / Hot Seal Hot Cut
Product Overview
Automatic Poly Film Air Bubble Film Mailer Bag Forming Machine
The machine is equipped with auto-counting, auto-folding, auto-unwinding and auto-alarming system. The bag making length is controlled by switch. It can produce bags in two lines with devices to collect and delivery end products in stack, which is convenient to operate.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
|
|
|
1
|
Model
|
PBQB-1000
|
|
2
|
Bag height
|
60-900mm
|
|
3
|
Bag width
|
100-1000mm
|
|
4
|
Triangle unwinder width
|
1900mm
|
|
5
|
Total power
|
4 KW
|
|
6
|
Thickness
|
0.015-0.035mm
|
|
8
|
Speed
|
60-200 pcs/min
|
|
9
|
Total Weight
|
1000KG
|
|
10
|
Machine Dimension(mm)
|
4500 x 3000 x 1950 mm
(L X W X H)
|
PRODUCT CONFIGURATION
Triangle Folder
with one set of Folding device, unwinder width suitable for film max.1900mm wide, full range.
Traction & Sealing
It is Hot Sealing & Hot Cutting
Control Components
With China Famous branded electronic components, Good Quality, to ensure the machine's working without any worries.
Stacking Table (optional)
Automatic counting, and descending the conveyror when bags coming out and stack to avoid bag jam and easier for collecting bags.

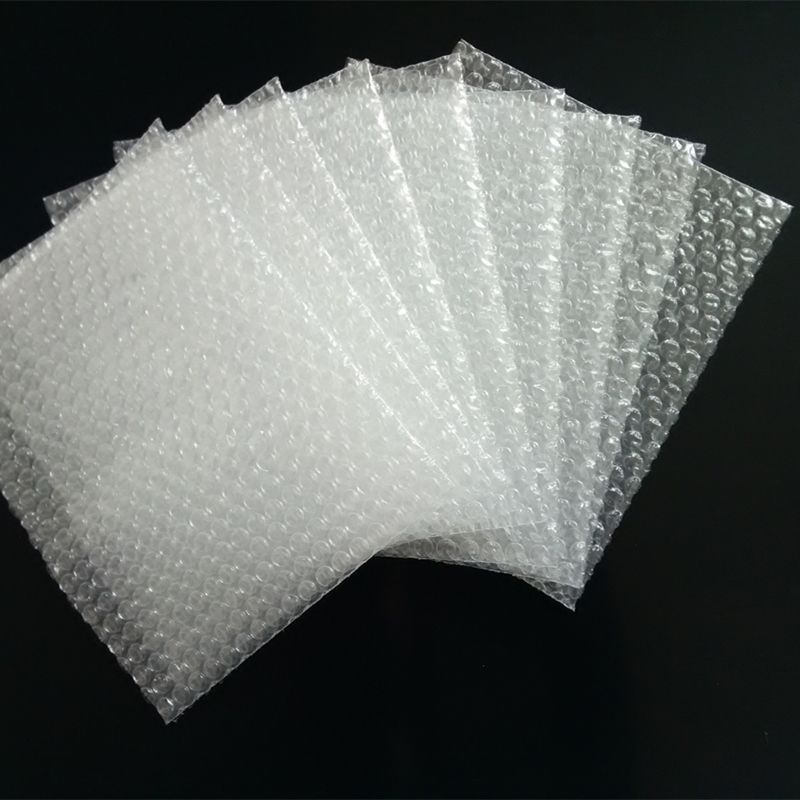

Bag samples
Air Bubble Film Bag, with adhesive tape for courier mailer / envelope bag purpose, or for wrapping goods for protection.
