Quick Details
-
Brand Name:
-
MaoFeng
-
Year:
-
2023
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
according to the machine
-
Weight (T):
-
5 T
-
Model Number:
-
Y32 Series
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
hydraulic press brake, high capacity water pump hydraulic rosin press
-
Keyword:
-
four column Hydraulic Stamping Press
-
Application:
-
powder forming heat/cool metal extrusion metal sheet stetching
-
Type:
-
Four Columns
-
Function:
-
press stamping bending edge-folding straightening
-
Material:
-
Alloy Steel
-
worktable size:
-
500*460mm or customized
-
Rated pressure:
-
400 KN
-
Color:
-
Green blue or customized
-
Stroke of slide:
-
450 mm
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Return Force (kN):
-
160 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
MaoFeng
-
Year:
-
2023
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
according to the machine
-
Weight (T):
-
5 T
-
Model Number:
-
Y32 Series
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New Product 2023
-
Product name:
-
hydraulic press brake, high capacity water pump hydraulic rosin press
-
Keyword:
-
four column Hydraulic Stamping Press
-
Application:
-
powder forming heat/cool metal extrusion metal sheet stetching
-
Type:
-
Four Columns
-
Function:
-
press stamping bending edge-folding straightening
-
Material:
-
Alloy Steel
-
worktable size:
-
500*460mm or customized
-
Rated pressure:
-
400 KN
-
Color:
-
Green blue or customized
-
Stroke of slide:
-
450 mm

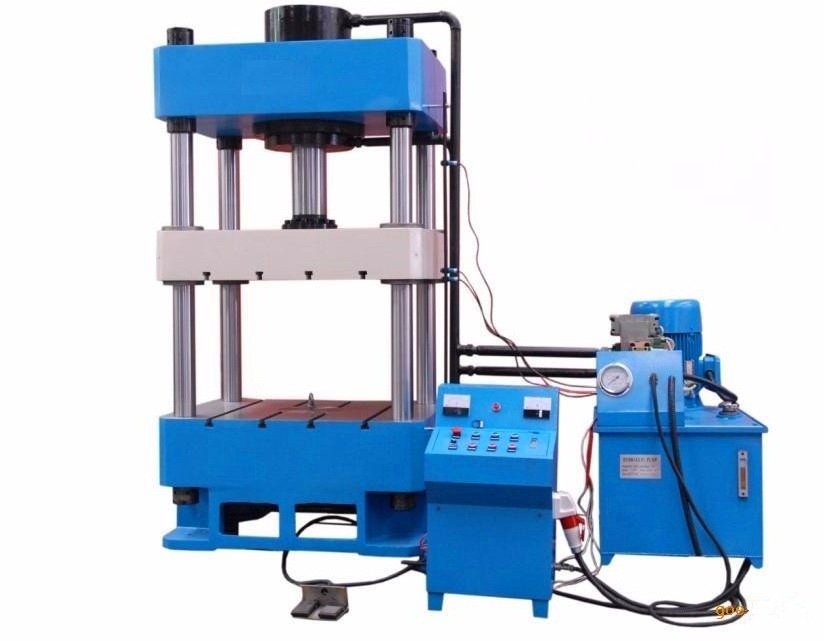

Wholesale 2000T four-column deep drawing hydraulic press machine
1. Y32 Series Four-Column Hydraulic Press is one of the new generation of plate process. Three-beam and four-pole structure design for large operating spaces - suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
2. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
3. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
4. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany.
5. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
6. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
7. Guiding device: adopts four cylindrical location guiding to make sure of thesteady precision, and it's easy to test and maintain.
8. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
9. PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds.
10. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
11. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
12. Dual control you can select to use:
a.Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
b.Movable single-hand pedal switch
