Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
/
-
Signal Interface:
-
USI-T , 156 pins Connector
-
Driver IC list:
-
Built-in COF 12 source chips
-
Resolution:
-
3840(RGB)*2160, UHD 103PPI
-
Contrast Ratio:
-
5000 : 1 (Typ.) (TM)
-
Work Model:
-
HVA, Normally Black, Transmissive
-
Viewing angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Pixel Format:
-
RGB Vertical Stripe
-
Outline Size:
-
953(W)*543(H)*1.33(D)
-
Weight:
-
1.69Kgs (Typ.)
-
Packaging Detial:
-
foma and wooden box
Quick Details
-
Type:
-
TFT
-
Display Size:
-
43 inch
-
Supplier Type:
-
Factory/agent/wholesaler/manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
/
-
Signal Interface:
-
USI-T , 156 pins Connector
-
Driver IC list:
-
Built-in COF 12 source chips
-
Resolution:
-
3840(RGB)*2160, UHD 103PPI
-
Contrast Ratio:
-
5000 : 1 (Typ.) (TM)
-
Work Model:
-
HVA, Normally Black, Transmissive
-
Viewing angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Pixel Format:
-
RGB Vertical Stripe
-
Outline Size:
-
953(W)*543(H)*1.33(D)
-
Weight:
-
1.69Kgs (Typ.)
-
Packaging Detial:
-
foma and wooden box
Specification
|
Application details
|
|
|
|
|
|
|||||
|
Usage
|
TV
|
|
Type
|
a-Si TFT-LCD, CELL
|
|
|||||
|
Model
|
ST4251D01-B
|
|
Screen Size
|
43 inch
|
|
|||||
|
Stotage Temp
|
-20 ~ 60 °C
|
|
Opeating Temp
|
0 ~ 50 °C
|
|
|||||
|
Frame Rate
|
60Hz
|
|
Voltage Supply
|
12 V
|
|
|||||
|
Optical Details
|
|
|
|
|
|
|||||
|
Pixel Features
|
|
|
|
|
|
|||||
|
Pixel Format
|
3840(RGB)×2160, UHD
|
|
Arrangerment
|
RGB Vertical Stripe
|
|
|||||
|
Dot Pitch(mm)
|
0.0817×0.2451
|
|
Pixel Pitch(mm)
|
0.2451×0.2451
|
|
|||||
|
Physical Size
|
|
|
|
|
|
|||||
|
Active Area(mm)
|
941.184(W)×529.416(H)
|
|
Outline Dim(mm)
|
953(W)×543(H)
|
|
|||||
|
Depth(mm)
|
1.33 (Typ.)
|
|
|
|
|
|||||
|
Outline Features
|
|
|
|
|
|
|||||
|
Form Shape
|
Flat Rectangle
|
Aspect Ratio
|
16:9 (H:V)
|
Plate Thickness(mm)
|
0.50+0.50 |
|||||
|
Other Features
|
|
|
|
|
|
|||||
|
Weight
|
1.69Kgs
|
|
Surface
|
Antiglare (Haze 2%), Hard coating (3H)
|
|
|||||
|
Optical Details
|
|
|
|
|
|
|||||
|
Basic Information
|
|
|
|
|
|
|||||
|
Luminance(cd/m²)
|
0
|
|
Contrast Ratio
|
5000:1 (Typ.)
|
|
|||||
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Response Time(ms)
|
6.5 (Typ.)(G to G)
|
|
|||||
|
Work Model
|
HVA, Normally Black, Transmissive
|
|
|
|
|
|||||
|
Color performance
|
|
|
|
|
|
|||||
|
White Chromaticity
|
Wx:0.277; Wy:0.312
|
|
Support Color
|
1.07B (8-bit + Hi-FRC)
|
|
|||||
|
Color Temperature
|
9271K
|
|
|
|
|
|||||
|
1931 Color Gamut
|
|
|
|
|
|
|||||
|
NTSC Ratio
|
73%
|
|
sRGB
|
99% coverage
|
|
|||||
|
Adobe RGB
|
77% coverage
|
|
DCI-P3
|
76% coverage
|
|
|||||
|
Rec.2020
|
55% coverage
|
|
Remarks
|
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
|
|||||
|
Other Information
|
|
|
|
|
|
|||||
|
Transmissivity
|
4.3% (Typ.)(with Polarizer)
|
|
Single Interface
|
USI-T , 156 pins Connector
|
|
|||||
|
One Box/pcs
|
20
|
|
One Pallet/pcs
|
140
|
|
|||||
Product Description
Packing & Delivery
NO.1 Test every panel

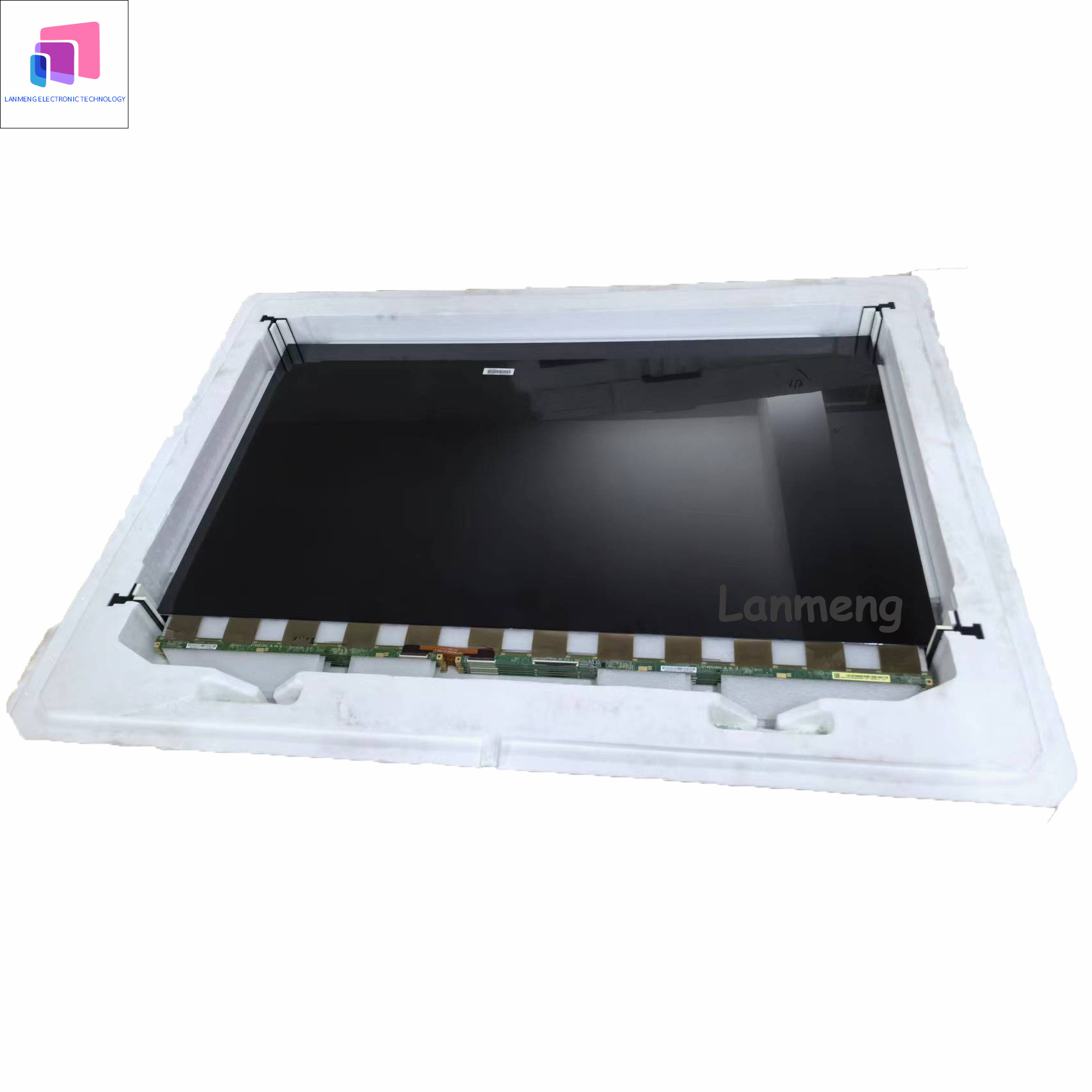

NO.2 Put in foam box
NO.3 Integration and packaging
NO.4 Pack it in a wooden box for protection
NO.5 Loading
NO.6 Sea ,land,air transportation
