Quick Details
-
Weight (KG):
-
420
-
Product Name:
-
Stainless Steel Tube Polishing Machine
-
Max working dia.(MM):
-
1-150
-
Max working length(MM):
-
6000
-
Main roll dia.(MM):
-
32
-
Max wheel dia.(MM):
-
30mm
-
Max wheel thickness(MM):
-
160mm
-
Guide roller dia.(MM):
-
260mm
-
Buff whell speed(r/min):
-
2800r/min
-
Guide roller speed(r/min):
-
0-200(adjustable)
-
Buff wheel power(KW):
-
4kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENTO
-
Power (kW):
-
4.8
-
Weight (KG):
-
420
-
Product Name:
-
Stainless Steel Tube Polishing Machine
-
Max working dia.(MM):
-
1-150
-
Max working length(MM):
-
6000
-
Main roll dia.(MM):
-
32
-
Max wheel dia.(MM):
-
30mm
-
Max wheel thickness(MM):
-
160mm
-
Guide roller dia.(MM):
-
260mm
-
Buff whell speed(r/min):
-
2800r/min
-
Guide roller speed(r/min):
-
0-200(adjustable)
-
Buff wheel power(KW):
-
4kw

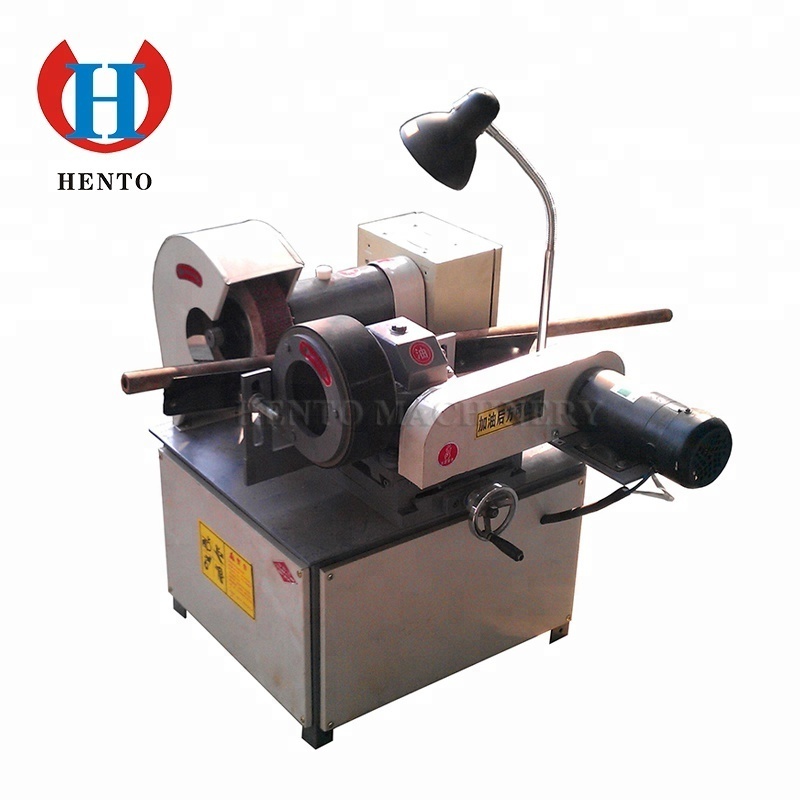

Cheap Stainless Steel Tube Polishing Machine / Pipe Polishing Machine
Automatic Steel tube Stainless steel pipe rod polishing machine Pipe Polisher Machine
Application : polishing machine can be of various round tube, the surface of cylindrical workpiece rust, polishing, polishing, wire drawing, polishing, descaling, bright mirror polishing etc..
|
Model |
HT-SP80 |
HT-SP120 |
HT-SP150 |
HT-SP200 |
|
Max working dia.(MM) |
1-80 |
1-120 |
1-150 |
20-200 |
|
Max working length(MM) |
6000 |
6000 |
6000 |
6000 |
|
Main roll dia.(MM) |
32 |
32 |
32 |
32 |
|
Max wheel dia.(MM) |
300 |
300 |
300 |
300 |
|
Max wheel thickness(MM) |
160 |
160 |
160 |
160 |
|
Guide roller dia.(MM) |
230 |
230 |
260 |
260 |
|
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
2800 |
|
Guide roller speed(r/min) |
0-200(adjustable) |
|||
|
Working speed(m/min) |
0-10(adjustable) |
|||
|
Buff wheel power(KW) |
3 |
3 |
4 |
4 |
|
Guide roller power(KW) |
0.4 |
0.4 |
0.8 |
0.8 |
|
Total power(KW) |
3.4 |
3.4 |
4.8 |
4.8 |
|
Total weight(KG) |
320 |
360 |
420 |
460 |
|
Dimension (MM) |
900*700*1200 |
1000*700*1200 |
1100*800*1200 |
1200*800*1200 |
|
Lighting voltage(V) |
36 |
36 |
36 |
36 |
If you need further information, please contact us freely, we will do our best to cooperate with you .
