Quick Details
-
Productivity:
-
18M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
oriemac
-
Weight:
-
2.3t
-
Dimension(L*W*H):
-
9840*2530*3905mm
-
Product name:
-
china 37m vacuum truck pump hot sale in oriemac
-
Keyword:
-
Conveying Concrete Equipment
-
Application:
-
Construction Engineering
-
Model:
-
37m
-
Brand:
-
ORIEMAC
-
Color:
-
Green
-
Working pressure:
-
8/15 MPa
-
Engine:
-
Original Engine
-
height:
-
37m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Pakistan, Thailand
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
iso
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
200M
-
Max. horizontal conveying distance:
-
180M
-
Productivity:
-
18M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
oriemac
-
Weight:
-
2.3t
-
Dimension(L*W*H):
-
9840*2530*3905mm
-
Product name:
-
china 37m vacuum truck pump hot sale in oriemac
-
Keyword:
-
Conveying Concrete Equipment
-
Application:
-
Construction Engineering
-
Model:
-
37m
-
Brand:
-
ORIEMAC
-
Color:
-
Green
-
Working pressure:
-
8/15 MPa
-
Engine:
-
Original Engine
-
height:
-
37m
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Pakistan, Thailand
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
iso

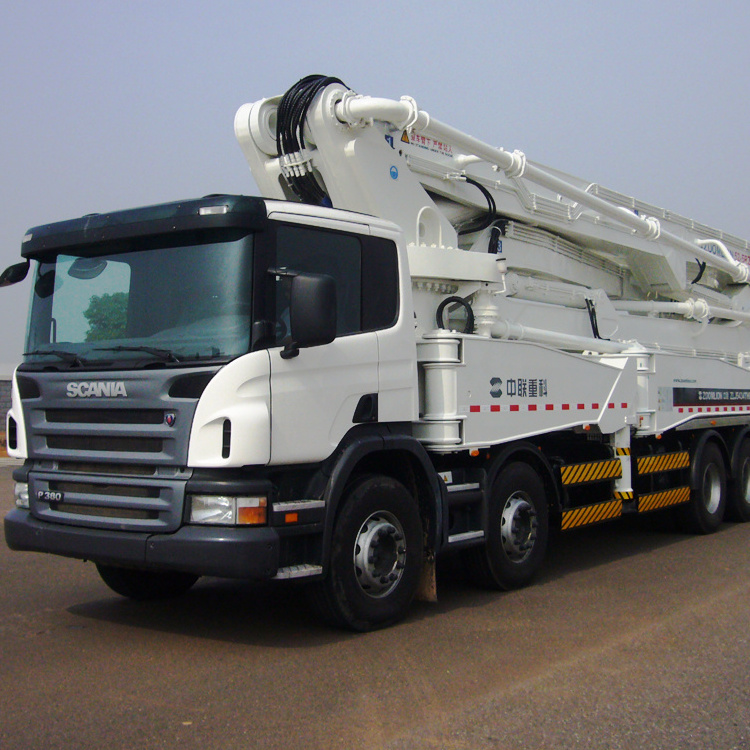

china concrete pump 37m price concrete pump machine
ZLJ5230THBTE two bridges 37 meters national five heavy steam chassis 4.0 pump truck is an economical, energy-saving, site adaptability, adapt to complex conditions, intelligent and efficient pump trucks, standard China National Heavy Duty Truck M5G series chassis, with remote Upgrade, fault self-diagnosis, mobile APP platform display and other functional configurations, vehicle maintenance, maintainability, parts versatility, operating costs are far lower than the pump range of the same meter range.
|
Theoretical Productivity
|
m3/h |
100 |
|
Max. Concrete Pressure |
Mpa |
8.57 |
|
Hopper Capacity |
L |
765 |
|
Feeding Height |
mm |
1425 |
|
Model of Distributing Valve |
|
S pipe valve |
|
Max. operation Radius |
m |
47.8 |
|
Max. operation Height |
m |
51.8 |
|
Max. operation Depth |
m |
39.5 |
|
open height of aggregate carrying pipe |
mm |
9424 |
|
Distance between Front Landing Legs |
mm |
10295 |
|
Distance between Rear Landing Legs |
mm |
10650 |
|
Distance between Front and Rear Landing Legs |
mm |
10310 |
|
Rotary Angle of Each Boom Section
|
90/180/
180/180/270° |
|
|
Remote-control Distance
|
m
|
200
|
