Quick Details
-
Local Service Location:
-
Viet Nam
-
Product name:
-
Mini Dumper
-
Driving type:
-
Right Hand Driving
-
Name:
-
Construction Dumpers
-
Engine model:
-
12HP Diesel engine
-
Loading capacity:
-
1ton
-
Keywords:
-
Crawler Mini Dumper
-
Usage:
-
Farming Sand Transport Truck
-
Rated Power:
-
9KW
Quick Details
-
Weight (KG):
-
1600
-
Place of Origin:
-
Shandong, China
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Viet Nam
-
Product name:
-
Mini Dumper
-
Driving type:
-
Right Hand Driving
-
Name:
-
Construction Dumpers
-
Engine model:
-
12HP Diesel engine
-
Loading capacity:
-
1ton
-
Keywords:
-
Crawler Mini Dumper
-
Usage:
-
Farming Sand Transport Truck
-
Rated Power:
-
9KW
Diesel power crawler small truck dumper/mini dump truck
introduction
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on. Diesel power crawler small truck dumper/mini dump truck
Diesel power crawler small truck dumper/mini dump truck
Parameter
| Mini rubber track transport dumper truck | ||||
| 1 ton | 2ton | 3ton | 4ton | |
| Total Machine Weigh | 1600KG | 1900KG | 2500KG | 3000KG |
| Engine power | 12HP Diesel engines | 32HP Diesel engines | 45HP Diesel engines | 82HP Diesel engines |
| Power | 9KW | 23KW | 33KW | 60KW |
| Pump model | 306 | 306 | 308 | 310 |
| Diesel engine capacity | 15L | 20L | 25L | 30L |
| Hydraulic volume | 3L | 5L | 5L | 7L |
| Maximum deadweight | 1000KG | 2000KG | 3000KG | 4000KG |
| Maximum grade | 30 | 30 | 30 | 30 |
| Track length | 4100mm | 4500mm | 4900mm | 5000mm |
| Track height | 550mm | 555mm | 565mm | 575mm |
| Crawler width | 350mm | 350mm | 400mm | 320mm |
| Size of the trunk | 1900*1600*1850mm | 2000*1600*1850mm | 2000*1650*1850mm | 2200*1750*1850mm |
| Machine size | 3500*1600*1850mm | 3550*1600*1850mm | 3600*1650*1850mm | 3700*1750*1850mm |
| Walking speed | 0-10km/h | 0-15km/h | 0-20km/h | 0-20km/h |
Diesel power crawler small truck dumper/mini dump truck

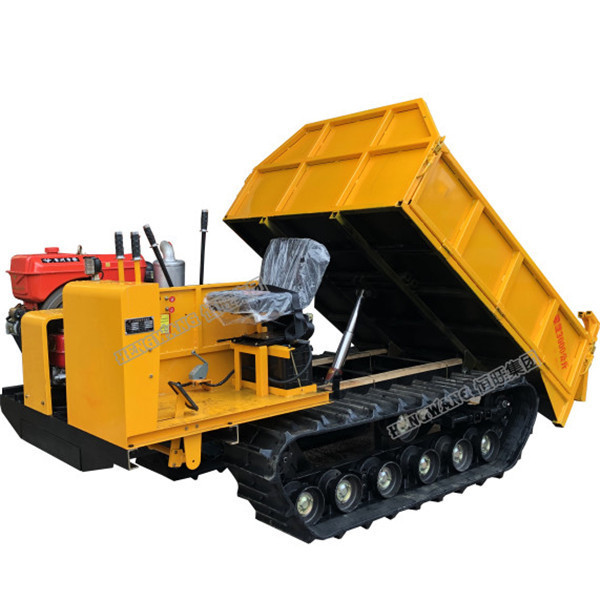

Photos
