Quick Details
-
Product name:
-
PP Plastic Hollow Cone Clamp Nozzle For Wet Scrubber
-
Customized support:
-
OEM,ODM
-
Technology:
-
CNC Machining
-
Certificate:
-
ISO9001
-
Recommended working pressure:
-
2.0 kgf/cm²
-
Flowrate tolerance:
-
± 10% @ 2.0 ± 0.1 kgf/cm²
-
Material:
-
PP, FRPP
-
Application:
-
Wet Scrubber / NOx Control
-
Medium:
-
Air,Water,Vacuum
Quick Details
-
Weight (KG):
-
0.027
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
DFK
-
Product name:
-
PP Plastic Hollow Cone Clamp Nozzle For Wet Scrubber
-
Customized support:
-
OEM,ODM
-
Technology:
-
CNC Machining
-
Certificate:
-
ISO9001
-
Recommended working pressure:
-
2.0 kgf/cm²
-
Flowrate tolerance:
-
± 10% @ 2.0 ± 0.1 kgf/cm²
-
Material:
-
PP, FRPP
-
Application:
-
Wet Scrubber / NOx Control
-
Medium:
-
Air,Water,Vacuum

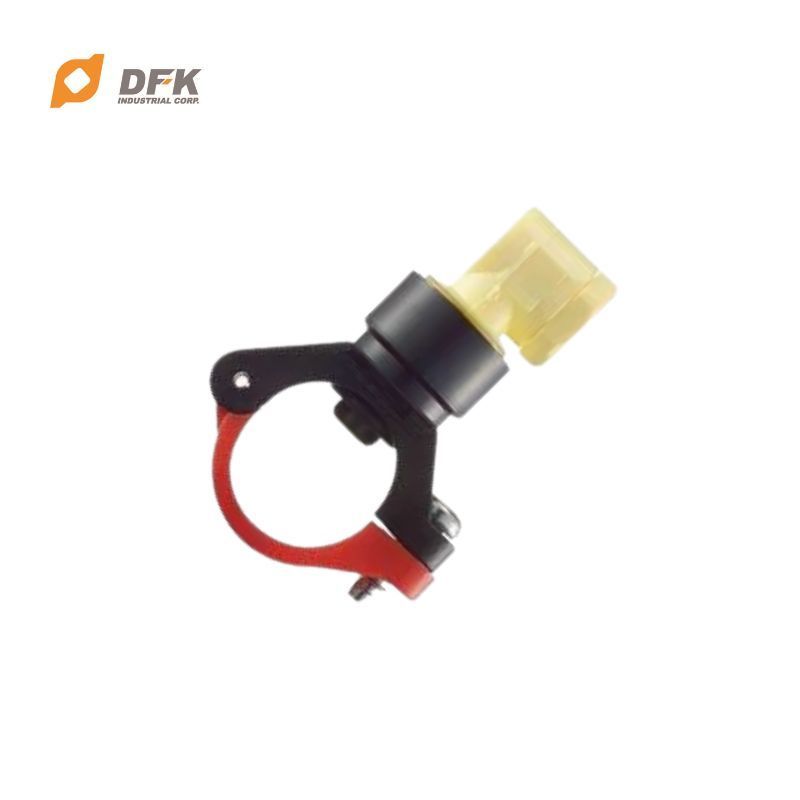

PP Plastic Hollow Cone Clamp Nozzle For Wet Scrubber
PRODUCT DESCRIPTION
FEATURES
-Spray patterns: Hollow Cone. The shape of the spray is circular.
-The nozzle flow path has no complicated structure which effectively avoids clogging.
-Multi-piece design, the nozzle part adopts a two-piece structure. The nozzle part can be disassembled to facilitate maintenance, cleaning and replacement; the nozzle part and the base buckle are positioned by the clamp, and the installation can be completed with bare hands without tools.
-The spray direction is 90 degrees to the installation direction. Please make sure that the installation environment meets the requirements (The base is shared with the QSH and QSF nozzles. If the spray direction is limited, QSH can be used with the QSF nozzle head)
-Under the same test conditions, the hollow cone spray has the smallest particle size, so that it is commonly applicable in gas washing and dust suppression.
-Recommended working pressure: 2.0 kgf/cm²
-Flowrate tolerance: ± 10% @ 2.0 ± 0.1 kgf/cm²
-Angle tolerance: ± 10° @ 2.0 ± 0.1 kgf/cm²
-Solids Passage: 40mm
-Size:
● Ø Drilling hole size for pipe clamp: 9.8~10m/m
● Ø Fits pipe size: 3/4"(OD26 +/-0.2mm), 1"(OD34 +/-0.3mm)
SPRAY PATTERN & FLOW DISTRIBUTION
TECHNICAL DATA
Product Size
|
Hole and Thread
(BSPT)
|
Size (mm)
|
|
|
|
Weight (g)
|
|||
|
|
A
|
B
|
C
|
D
|
|
|||
|
3/4"Clamp
|
23.5
|
27.3
|
14
|
60.3
|
27
|
|||
|
1"Clamp
|
28.3
|
33.2
|
22
|
62
|
|
|||
APPLICATION
● Cleaning: Gas, cleaning, etc.
● Cooling: Gas, liquid, air conditioning, machinery, metal, plastic molding cooling process.
● Dispersion: Humidifying, Chemicals, aeration, firefighting, dedust , deodorization, etc.
