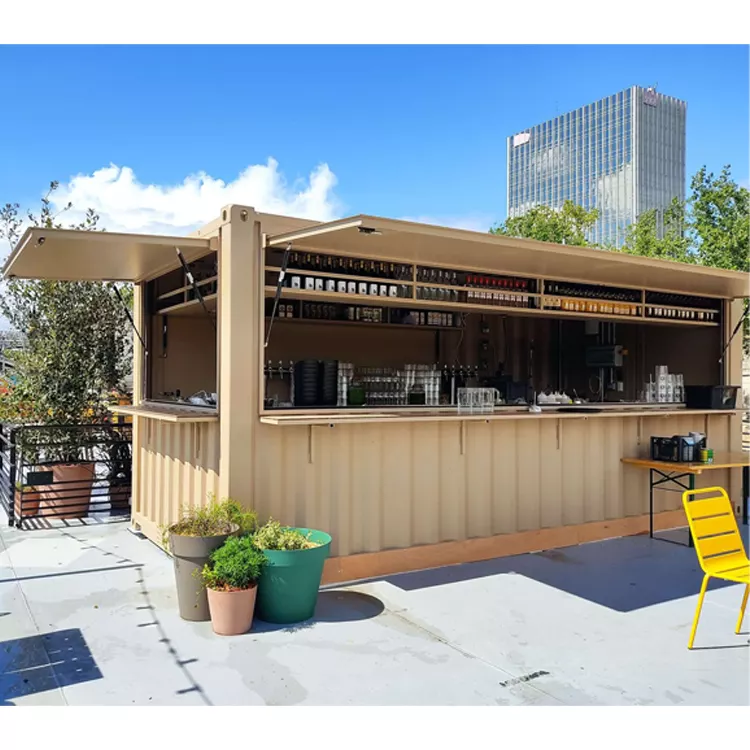

Professional Design Luxury Portable Prefabricated Cafe Kiosk Shipping Modified Prefab Modular Coffee Shop Container House

Container House is designed and developed according to the standard size of shipping container.

1. Advangtage：
1) All steel fabric parts and the size of prefab house can be made according to clients' requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
3) The material of prefab house is light and easily to installation. one 50 square meter house five workers 1-3days finished
installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
6) Support frame system of steel prefab house: Q235B China standard steel structural. Square tube, Channel steel, etc
2. Characteristics：
* Good ability to assemble and disassemble for several times without damage.
* Could be lifted, fixed and combined freely.
* Heatproof and waterproof.
* Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)
* Service life can reach up to 10 - 15 years
* We can provide the service of installation, supervision and training by extra.

Technical Parameter of standard prefabricated house:
* Wind resistance: Grade 11(wind speed≤111.5km/h)
* Earthquake resistance: Grade 7
* Fire proof:B2 grade

* Material: Light steel structure, steel material Q235
* Surface working: sand blasting, epoxy basic painting 55μm thick, final vinyl acrylic painting 55μm thick
* Fittings: 8 standard container corner mould fittings, PVC standard rainwater pipe
* Forklift openings: size 100*250mm, distance is 1200mm

Floor：
* External wainscot: Flat galvanized color steel sheet, 0.4mm thickness
* Floor structure: Girder made of 4mm steel. The purlin is square tube dimension 60x40x1.5mm.
* Warm proof Insulation layer: 75mm rock wool
* Floor: 15mm thick plywood panel for general room; 20mm thick cement board for WC and kitchen
* 1.5mm PVC floor leather for living rooms floor; 1.5mm anti-slip aluminum board for toilet floor.
* Permitted loading: 2.0KN/m2
* Coefficient of thermal conductivity: K=1.1 W/ (m·K)

Ceiling：
* Roof exterior layer: 1.2mm stamping steel plate, epoxy painting
* Warm proof insulation filling: 75mm rock wool between wooden purlins;
* Inner wainscot: 9mm MDF laminated decorative panel or 10mm glass magnesium fire-proof board
* Permitted live loading: 0.5 KN/m2
* Coefficient of thermal conductivity: K=0.55 W/ (m·K)
* Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Wall and Roof：
* Panel width: 1150mm; panel total thickness: 75mm
* External layer: Galvanized and painted (29μm) color steel sheet 0.5mm
* Internal layer: Galvanized and painted (29μm) color steel sheet 0.5mm.
* Warm proof insulation filling: 50/75/100mm EPS / rock wool / PU panel
* Insulation density: EPS is 12kg/ m3 ;rock wool is 120kg/ m3; PU is 45kg/ m3
* Permitted loading: 0.6KN/m2
* Coefficient of thermal conductivity: K=0.442 W/ (m·K)

Door：
* External door: sandwich panel door with opening dimension 850*2100mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

Windows：
* Window material: plastic steel window with security bar, white color, dimension 1130*1000mm, glass thickness: 3mm, aluminum alloy edge cover, sliding window with fly screen.
* Or PVC windows with rolling shutter.

Electrical fittings option：
* Voltage: 110~220V, 50~60Hz,
* European standard or Chinese standard sockets (usually 3 pcs)
* Switch: single control switch or double control (usually 1 pcs)
* Distribution box (usually 1 pcs): with 32A breaker protector and 10A breaker protector
* Double tube fluorescent light (usually 2 pcs)
* Main Power Cables: copper core 2.5-4 mm2
* Light Cables: copper core 1.5 mm2
* All the cables with PVC or copper electric raceway

Water system fittings option：
* Water drain pipe, PPR pipe, diameter 16-20mm, connection fittings are made of copper, life span over 10 years.
* Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

All Cornices and Architraves. Electrical: SAA approved 2.5mm cable to power points, 1.5mm cable to lights, light switches & fittings. Waterproofed external plug. Plumbing and Sanitary wares. Powder Board with Safety Switch. Warranty and what it covers: We have a 10-year structural warranty on galvanised steel framing. Features: They look like a home, not a container, and they are strong and durable. Plug them into your mains or install solar with an eco-septic system and go completely off grid. Taking them down is a reverse process of installing and they fold down to the size of a container Our plans can be modified and additions made to suit individual requirements. Options: The external flashing’s come in Ironstone, Cottage green or White. Add a sliding door with fly screen to open out onto a veranda. Extend the bathroom. 2 way bathroom. Laundry/pantry cupboard. Window and door blinds to suit available in black or white. laundry room. Construction and Assembly: On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable Transport or relocating: They are transported on a tilt tray and placed onto 12 foundations. Put one on a block you can’t build on, relocate it whenever you like, or live in it while building your dream home.

Packing and Shipping

Tianjin Free Trade Ouyuansheng. Trading Co., Ltd. is a manufacturer specializing in the production of building materials and prefabricated houses. Founded in 2001, it focuses on prefabricated houses, machinery, corrugated tiles, metal profiles, insulation boards, construction companies,construction consulting companies, and real estate. Developers, electric energy, infrastructure, industrial uses, governments,building materials traders. Equipped with eps cement sandwich panels, prefabricated houses, modular houses, steel structure warehouses, container houses, etc.

FAQ

1.Q: Could you please design a new and unique prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our
outstanding superiority with no doubt.

2.Q: What should I provide to build a prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify
us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.

3.Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different
types and qualities make various prices. After that, we will send you a detailed quotation.

4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, one 50 square meter house five workers 1-3days finished installation, save
manpower and time

5.Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use an
electric tool.

6.Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.

7.Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and
9-grade earthquake outside.

8.Q: what are the advantages of prefab house compared to the traditional building?
A: Better isolation of sound and heat, Better fireproof and anti-seismic, Wind resistance, Time and labor saving, More usable
area, Excellent termite-proof capability

9.Q: Does prefab house look different from the ordinary one?
A: Yes. prefab house is more beautiful and suitable for any style.

10.Q: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge.
Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your
confirmation. Finally, we make a deal on alibaba.com with Trade Assurance.

Project details ---> Drawings for your project ---> Revised drawings ---> Transaction confirmation with Trade Assurance

11.Q: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit.
