Quick Details
-
Model Number:
-
*
-
Brand Name:
-
Dingsheng
-
Material:
-
Alloy 6000 series
-
Length:
-
Custom Length
-
Finish:
-
Customized
-
Type:
-
100% QC Testing
-
Deep process:
-
Punching Driling Precison Cutting CNC
-
Delivery time:
-
15-25 Days
-
MOQ:
-
1Kg
-
Main Market:
-
Europe
-
Payment term:
-
Negotiate
-
Material & Temper:
-
Alloy Aluminum 6063-T5/6061-T6
Quick Details
-
Grade:
-
6000 Series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
*
-
Brand Name:
-
Dingsheng
-
Material:
-
Alloy 6000 series
-
Length:
-
Custom Length
-
Finish:
-
Customized
-
Type:
-
100% QC Testing
-
Deep process:
-
Punching Driling Precison Cutting CNC
-
Delivery time:
-
15-25 Days
-
MOQ:
-
1Kg
-
Main Market:
-
Europe
-
Payment term:
-
Negotiate
-
Material & Temper:
-
Alloy Aluminum 6063-T5/6061-T6

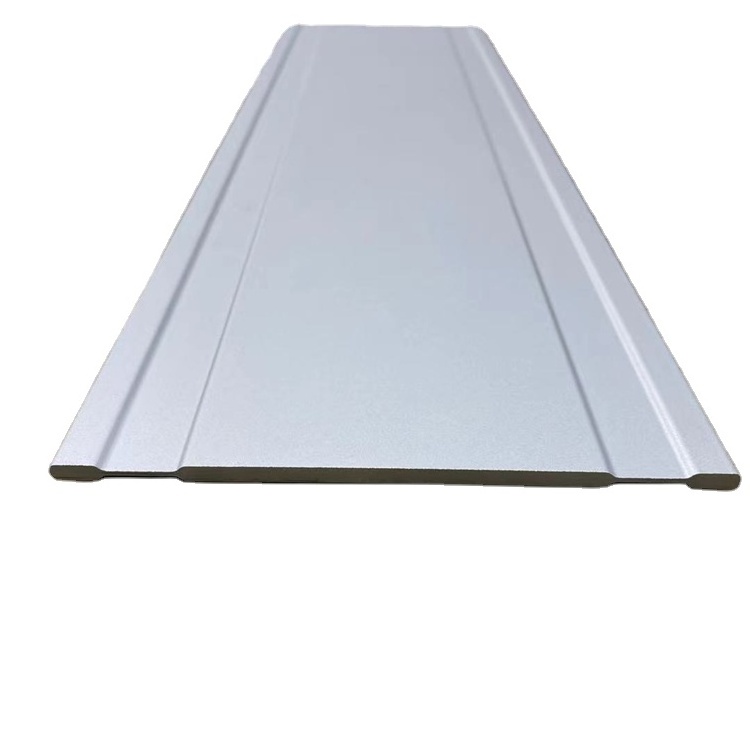

1, Aluminum extrusion profile
2, Aluminum alloy: 6000 series
3, Deep processing: drill, punching, milling, accurate cutting, CNC, assembly line work etc.
4, All kinds of surface treatment: anodizing, electrophoresis, powder coated, wooden print, sandblasting, matte, dye, samll anodized, polishing, brush etc.
5, Focus on quality for 16 years
6, Have 16 years experience of product development, design and service.
General Chemical of alloy
| Alloy | 6063(%) | 6063A(%) | 6061(%) |
| Si | 0.2-0.6 | 0.3-0.6 | 0.4-0.8 |
| Fe | <0.35 | 0.15-0.35 | <0.7 |
| Cu | <0.1 | <0.1 | 0.15-0.4 |
| Mn | <0.1 | <0.15 | <0.15 |
| Mg | 0.45-0.9 | 0.6-0.9 | 0.8-1.2 |
| Cr | <0.1 | <0.05 | 0.04-0.35 |
| Zn | <0.1 | <0.15 | <0.25 |
| Ti | <0.1 | <0.1 | <0.15 |
| Other single | 0.05 | 0.05 | 0.05 |
| Other | 0.15 | 0.15 | 0.15 |
Mechanical Properties of Section under room temperature
| Alloy | State | Tensile strength test | Hardness test | ||||
| Tensile strength |
Specified non-proportional elongation stress |
Elongation | thickness of sample | HV | HW | ||
| % | mm | HV | HW | ||||
| No less than | |||||||
| 6061 | T4 | 180 | 110 | 16 | - | - | |
| T6 | 265 | 245 | 8 | - | - | ||
| 6063 | T5 | 160 | 110 | 8 | 0.8 | 58 | 8 |
| T6 | 205 | 180 | 8 | - | - | - | |
| 6063A | T5 | 200 | 160 | 5 | |||
| T6 | 230 |
160 |
5 |
||||
EP paper inside for each piece then shrink paper.or carton paper then pallet.or wooden carton.etc.
