1
.Head: High-speed direct drive head
2.
Motor: Spindle: Servo motor, X and Y axis: Stepper motor (all servo motors can be equipped)
3.Lubrication method: automatic oiling
4.
The full LCD screen can support seven languages.
5.Automatic thread trimming function
- Product Details
- {{item.text}}
Quick Details
-
Max Sewing Speed:
-
1500-2000r/minute
-
Max Sewing Thickness:
-
1200g/m²
-
Voltage:
-
220V/50HZ
-
Power:
-
2.0kw
-
Dimension(L*W*H):
-
3*3*1.4m
-
Weight:
-
500
-
Product name:
-
ewing-machine-for-quilts
-
Application:
-
Comforter Quilt Blanket Mattress
-
Usage:
-
Quilting Maker Cotton Quilt Duvet Quilt
-
Feature:
-
High Efficiency
-
Advantage:
-
Stable Performance
-
COLOR:
-
Bule
-
Suitable for:
-
Bed Cover Quilt Sewing Machine
-
MOQ:
-
1 Set
-
Packing:
-
Wooden Case
-
Operate:
-
Computer Control
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AURIS
-
Max Sewing Speed:
-
1500-2000r/minute
-
Max Sewing Thickness:
-
1200g/m²
-
Voltage:
-
220V/50HZ
-
Power:
-
2.0kw
-
Dimension(L*W*H):
-
3*3*1.4m
-
Weight:
-
500
-
Product name:
-
ewing-machine-for-quilts
-
Application:
-
Comforter Quilt Blanket Mattress
-
Usage:
-
Quilting Maker Cotton Quilt Duvet Quilt
-
Feature:
-
High Efficiency
-
Advantage:
-
Stable Performance
-
COLOR:
-
Bule
-
Suitable for:
-
Bed Cover Quilt Sewing Machine
-
MOQ:
-
1 Set
-
Packing:
-
Wooden Case
-
Operate:
-
Computer Control
Product Description

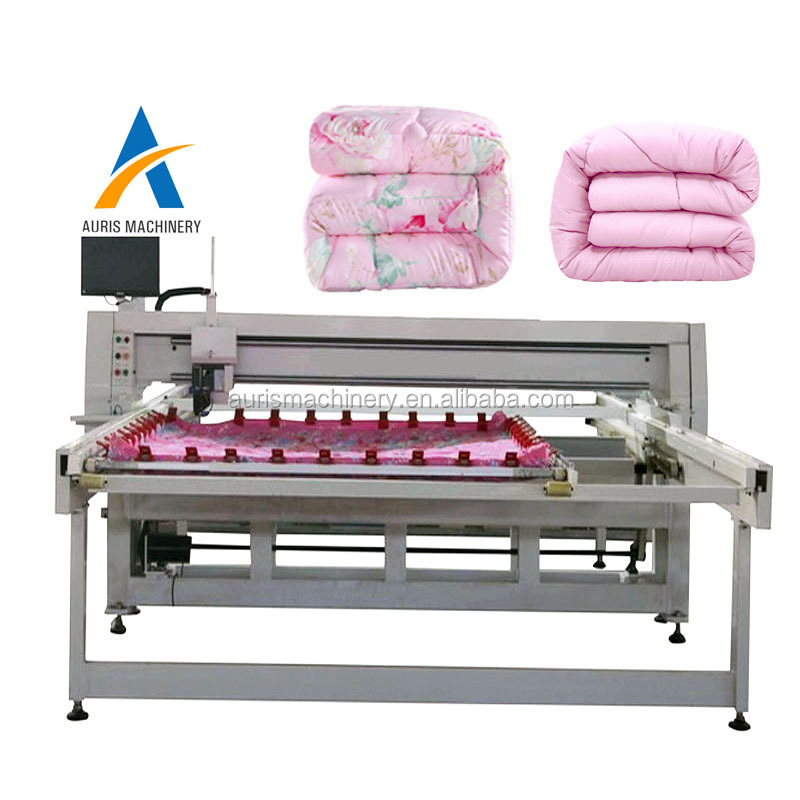

industrial long arm high speed single head computerized mattress quilting sewing quilt making machine
This single needle quilting machine is Mainly used for cotton, chemical fiber, wool, camel hair, silk quilt, bedspread, sleeping bags, mattresses.
1.Quilting speed: here are 1300r/pm, 2200r/pm, 2400r/pm, 2800r/pm, 3000r/pm (suitable for simulation cloth)
2.Quilting size: There are 2.4*2.6m, 2.6*2.8m, 2.8*3.0 m and so on.
If you need other sizes, we can customize it for you.
Product Parameters
|
Model
|
2.2*2.4M
|
2.4*2.6M
|
2.6*2.8M
|
2.8*3.0
|
|||
|
Power
|
2kw, 22, 50/60hz, single phase
|
|
|
|
|||
|
Max. Quilting size(m)
|
2.2*2.4
|
2.4*2.6
|
2.6*2.8
|
2.8*3.0
|
|||
|
Max. Needle Drop Size(m)
|
2.0*2.2
|
2.2*2.4
|
2.4*2.6
|
2.6*2.8
|
|||
|
Machine size(m)
|
2.8*2.8*1.1
|
3.2*3.2*1.4
|
3.4*3.4*1.4
|
3.6*3.6*1.4
|
|||
|
Weight(kg/set)
|
700kg
|
880kg
|
950kg
|
1100kg
|
|||
Details Images
1300R/PM
1.
The square tube is 2.5mm thick, and the steel plate used for the upper frame is 3mm. The machine is stable and will not cause severe vibration and displacement.
2.
Adopt brand computers, stepping motors, drivers, quilting heads, etc. in the industry.
3.
The high-quality steel shaft is an important guarantee for the smooth operation of the machine. Our steel shaft is chrome-plated, and the hardness of chromium is large, which makes the steel shaft not easy to deform and will not cause broken needles and wires.
2800R/PM
3000R/PM
1:
QB-ARM system (advanced technology can move the frame instantly)
2:
10-inch LCD touch screen.
Support 7 languages.
3:
Pneumatic lift head.
4:
Full servo motors (4 pcs).
5:
Adopt 6 high-precision linear slider guides.
6:
High-speed direct-drive head.
7:
High-speed direct-drive cam automatic trimming bottom seat.
8:
Automatic timing refueling.
9:
The rotary shuttle automatically removes dust regularly.
10:
Automatically press the quilt frame when quilting.
Lubrication method: automatic oiling
Workbench
Standard size: 244*122cm.
According to actual needs, it can be customized.
With a pattern browsing function, can automatically recognize a variety of pattern formats,
Computer LCD layout, simple and convenient operation.
Spare parts
Bobbins 20pcs
Belts 2pcs
Sensors 1pcs
Needle 50pcs
Pressor bowl
Bobbin cases 10pcs
