1.Put the equipment on the suitable place with opening the tripod and lock2. Adjust the lamp angel as you need
3. Connect the lamp to 90-305V
4. Lift up the light with air compressor or foot pump to suitable height (max 540cm)
5. Turn on the light and adjust the illumination as you need
- Product Details
- {{item.text}}
Quick Details
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
70
-
Lamp Luminous Flux(lm):
-
60000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-60
-
Power:
-
600W
-
Brightness:
-
60000 lumen
-
Material:
-
aluminum alloy+plastic
-
Application:
-
emergency , searching , fire fighting ,railway, tunnel
-
Feature:
-
Portable,high lumen
-
Package:
-
Aluminum alloy case
-
Gross Weight:
-
78KG
-
Certification:
-
CE,ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JGL
-
Model Number:
-
RLS500
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
70
-
Lamp Luminous Flux(lm):
-
60000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-60
-
Power:
-
600W
-
Brightness:
-
60000 lumen
-
Material:
-
aluminum alloy+plastic
-
Application:
-
emergency , searching , fire fighting ,railway, tunnel
-
Feature:
-
Portable,high lumen
-
Package:
-
Aluminum alloy case
-
Gross Weight:
-
78KG
-
Certification:
-
CE,ROHS
Product Description
Detailed Images
Product detail drawing
Stable Tripod with portable wheel
60000 lumens LED lighting180 / 360 degree illumination
540cm Pneumatic Telescopic rod
foot pump & Air hose
air compressor
Guy ropes and Ground anchor
Packing
Packing
Operation
Features
1. 5.4 meters tall, Stable tripod against winds
2. 180° & 360° illumination, wide range beam
3. with dimmer -- choose the brightness you need
4. with wheel -- portable to move and carry
5. with with Pneumatic Rodg -- easy to operate
2. 180° & 360° illumination, wide range beam
3. with dimmer -- choose the brightness you need
4. with wheel -- portable to move and carry
5. with with Pneumatic Rodg -- easy to operate
Application
Remote Area Lighting System ideal for Railway maintenance, Line maintenance,Emergency rescue,Searching,Camping,Industrial and
Mining enterprises, Fire fighting, remove light etc.
Mining enterprises, Fire fighting, remove light etc.
Product Presentation
|
Product Name
|

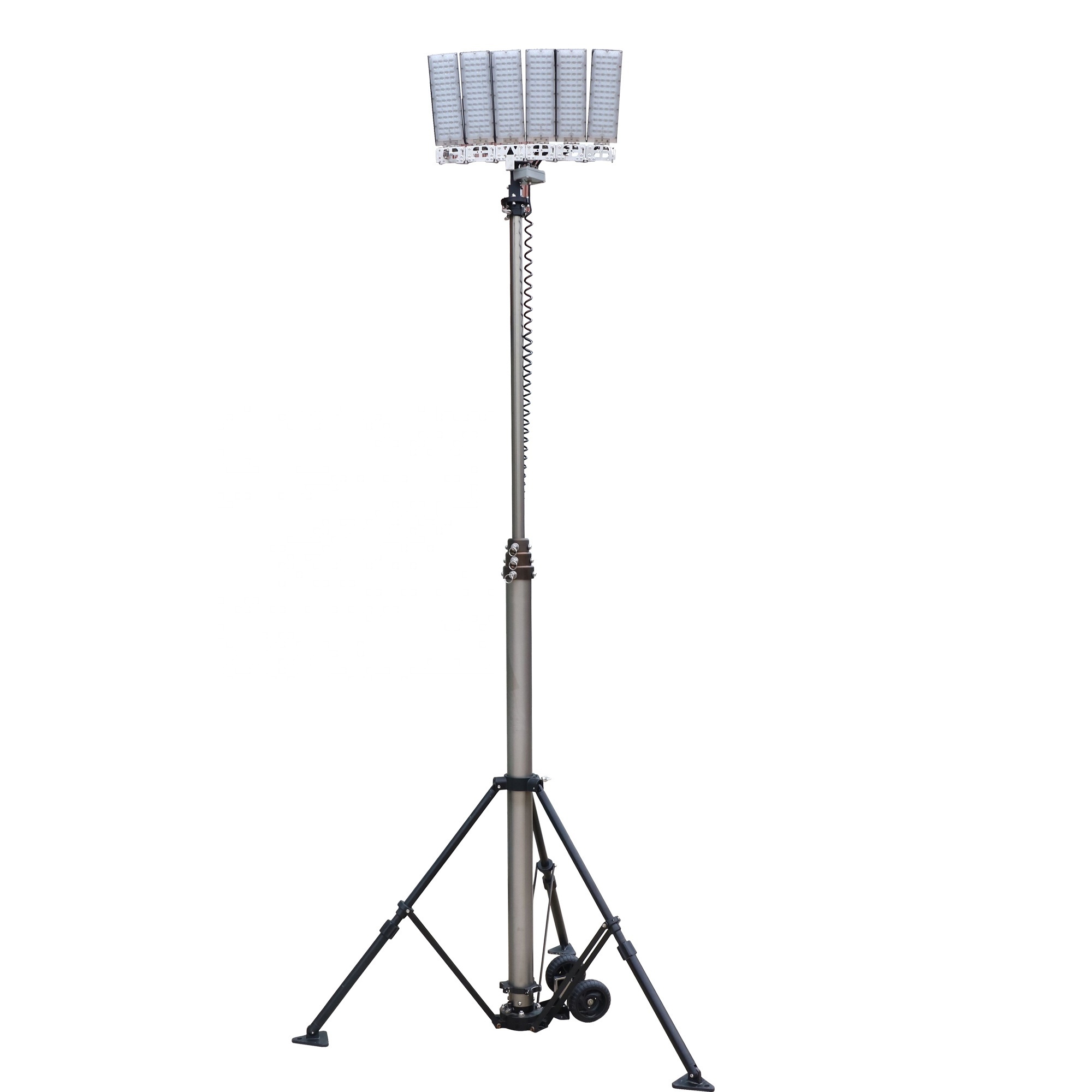

RLS500 Light Tower
|
|
Material
|
Aluminum Alloy Tripod
|
|
Power
|
1008W
|
|
Brightness
|
20-60000 lumens
|
|
Input Voltage
|
90-305V
|
|
Extended Height
|
540 cm
|
|
Waterproof
|
IP65
|
|
Weight of naked light
|
38.5 kg
|
|
Accessories
|
Adaptor, Foot Pump/ Air Pump, Steel Wire, Flight case
|
|
80Total Gross Weight
|
80 kg
|
Certificate
