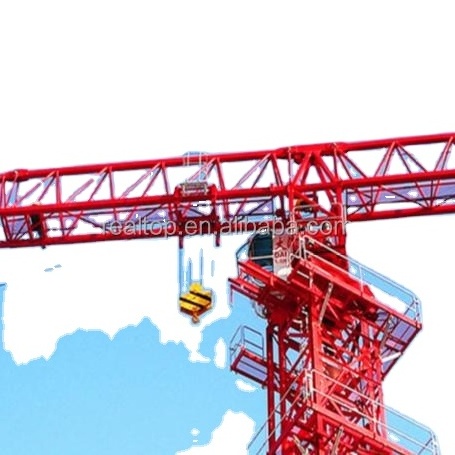

The frame, lifting cylinder and lifting beam have been assembled before leaving the factory, which can be directly hoisted on site
- Product Details
- {{item.text}}
Quick Details
-
Rated Lifting Moment:
-
1000KN.m
-
Span:
-
60m
-
Place of Origin:
-
China
-
Brand Name:
-
Realtop
-
Weight (KG):
-
35000 kg
-
Model:
-
PT6013.8
-
Boom length:
-
60m
-
Foundation type:
-
Embedded Foundation Leg
-
Main Chord:
-
180*180*18
-
Type:
-
Flat top type
-
Free standing height:
-
49.5m
-
Mast Section Size:
-
L46A1
-
After Warranty Service:
-
Spare parts
Quick Details
-
Rated Loading Capacity:
-
4 ton,3 ton, 2 ton,1 ton
-
Max. Lifting Height:
-
Other
-
Application:
-
construciton
-
Rated Lifting Moment:
-
1000KN.m
-
Span:
-
60m
-
Place of Origin:
-
China
-
Brand Name:
-
Realtop
-
Weight (KG):
-
35000 kg
-
Model:
-
PT6013.8
-
Boom length:
-
60m
-
Foundation type:
-
Embedded Foundation Leg
-
Main Chord:
-
180*180*18
-
Type:
-
Flat top type
-
Free standing height:
-
49.5m
-
Mast Section Size:
-
L46A1
-
After Warranty Service:
-
Spare parts
Product Description
Specification
|
QTZ100 (PT6013) Tower Crane Mechanisms 8t
|
|
|
|
|
|
|
||||||
|
Description
|
Institution code
|
Speed（m/min）
|
|
Lifting capacity（t）
|
Rope capacity（m）
|
Motor Power
|
||||||
|
Hoisting
|
2 fall30JLD20
|
2 fall
|
0-40
|
4.0
|
360>360°
|
30/30
|
||||||
|
|
|
|
0-80
|
2.0
|
|
|
||||||
|
|
|
4 fall
|
0-20
|
8.0
|
|
|
||||||
|
|
|
|
0-40
|
4.0
|
|
|
||||||
|
|
24LVF15
|
2 fall
|
0-40
|
4.0
|
400>400°
|
30
|
||||||
|
|
|
|
0-80
|
2.0
|
|
|
||||||
|
|
|
4 fall
|
0-20
|
8.0
|
|
|
||||||
|
|
|
|
0-40
|
4.0
|
|
|
||||||
|
Trolleying
|
BE3360
|
40/20
|
|
|
|
3.3/2.2
|
||||||
|
|
BP4060X
|
0~40
|
|
|
|
4
|
||||||
|
Slewing
|
HR.100.157
|
0~0.6
|
|
|
|
3.7×2
|
||||||
|
|
RVF4
|
0~0.6
|
|
|
|
4×2
|
||||||
|
Power
|
380V(±10%）/50Hz*
|
|
|
|
|
|
||||||
Product advantages
The Steel Structure with Long Lifespan and High Safety The flat-top tower crane is designed without any pull rod so as to reduce the height of the tower top and meet the requirements on different work sites. Especially suitable for disassembling and assembling on restricted construction sites or during the multi-tower cross operation The height difference between tower bodies can be reduced to save much space and cost.
Cabin
Convenient installation, low operation cost and long service life of products.
Semi products in factory
.
Paiting line
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. How about installation?
We can send engineer to your site to install and inspect the tower crane.
2. How many days for delivery?
Normally 7-15days we can delivery the tower crane after receiving deposit.
