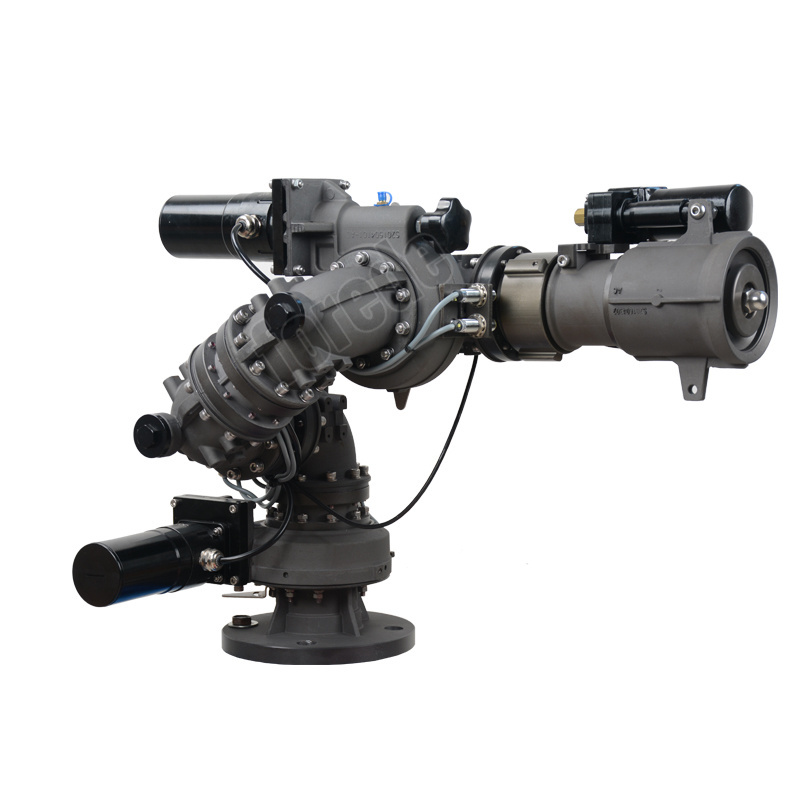

Remote control fire truck water cannon for fire fighting

Remote control fire truck water cannon for fire fighting

FOB Reference Price: Get Latest Price

≥1 Sets

US $3850

≥5 Sets

US $3750

≥10 Sets

US $3650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Flow Range:: 1200/1800/2400 LPM

Control Type:: electric,Remote control

Working pressure:: 7 bar

Updown Turning angle:: -90°~+90°

Horizontal Turning Angle:: 360°(adjustable)

Material:: Aluminium alloy

Max Reach @ Max Flow:: 60 meters

Color:: Black,red,white,yellow

Package:: MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL

Usage:: Fire truck mounted

Quick Details

Place of Origin:: Fujian, China

Brand Name:: forede

Model Number:: PSKD20-40B

Flow Range:: 1200/1800/2400 LPM

Control Type:: electric,Remote control

Working pressure:: 7 bar

Updown Turning angle:: -90°~+90°

Horizontal Turning Angle:: 360°(adjustable)

Material:: Aluminium alloy

Max Reach @ Max Flow:: 60 meters

Color:: Black,red,white,yellow

Package:: MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL

Usage:: Fire truck mounted

Product Description

2019 New design Remote Control Water Cannon

Features:

● Hard coated anodized Aluminium alloy construction.
● Fixed or Selectable flow rate.
● Available controlled both by Joystick at site and RC transmitter wireless.Max. remote control distance 150 meters.
● Waterproof control system with locking connectors.
● Rotation range 360°
● Elevation range +90°, -90°
●12V or 24V operation

Control Unit (Model CU-01)

CPU of the control system
IP67 standard sealed

RC receiver (Model CTRL-RCR02)

Receiver of the redio signal from the RC transmitter
Max.150 meteres Romote control distance

Joystick (Model CTRL-J01)

Up-Down-Left-Right,Straight stream/Fog function
Power indicator

RC transmitter (Model CTRL-RCT02)

Up-Down-Left-Right,Straight stream/Fog functionMax.150 meteres Romote control distance

Technical Parameter
Model	PSKD20	PSKD30	PSKD40	PSKD20-40B
Flow rate	1200 LPM	1800 LPM	2400 LPM	1200-1800-2400 LPM Selectable
Working Pressure	7 bar	7 bar	7 bar	7 bar
Max.Reach@7 bar	45 m	55 m	60 m	60m
Range of Motion	+90°/-90° vertical , 360°Horizontal
Power Consumption Max.	24V @ 7.5A
Power Supply	24 VDC
Speed (of high speed version)	24°/sec rotation , 10°/ sec vertical
Weight in Kg Incl. Nozzle Approx.	18.5KG
Material	Aluminum casting anodized body
		Aluminum casting anodized nozzle
		Stainless steel worm
		Aluminum gear
Package	1,Fire monitor with nozzle 2,Control box 3,RC transmitter 4,RC receiver 5,Joystick 6,Cables (Joystick to control unit cable-5m length,Monitor to control unit cable -12m length)
