Quick Details
-
Special Features:
-
Tuya app remote control
-
Communication:
-
WIFI&Blue-tooth
-
Authentication Mode:
-
RFID/Password/RFID+Password/Temporary Password
-
User Capacity:
-
1,000
-
Number of Doors Supported by Default:
-
1
-
Tuya Advanced Access Control Fuction:
-
Scheduled,Temporary Password,APP Online Authorization, etc.
-
Wiegand Reader Port:
-
2
-
Number of Readers Supported:
-
2
-
Number of Auxiliary Inputs:
-
1
-
Number of Auxiliary Outputs:
-
1
-
Exit Button:
-
1
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Model Number:
-
TY-C100
-
Special Features:
-
Tuya app remote control
-
Communication:
-
WIFI&Blue-tooth
-
Authentication Mode:
-
RFID/Password/RFID+Password/Temporary Password
-
User Capacity:
-
1,000
-
Number of Doors Supported by Default:
-
1
-
Tuya Advanced Access Control Fuction:
-
Scheduled,Temporary Password,APP Online Authorization, etc.
-
Wiegand Reader Port:
-
2
-
Number of Readers Supported:
-
2
-
Number of Auxiliary Inputs:
-
1
-
Number of Auxiliary Outputs:
-
1
-
Exit Button:
-
1
12V Mini Smart Bluetooth WIFI Tuya APP Remote Access Control Panel 1000 User Online Authorization Controller Door Entry System
Overview:

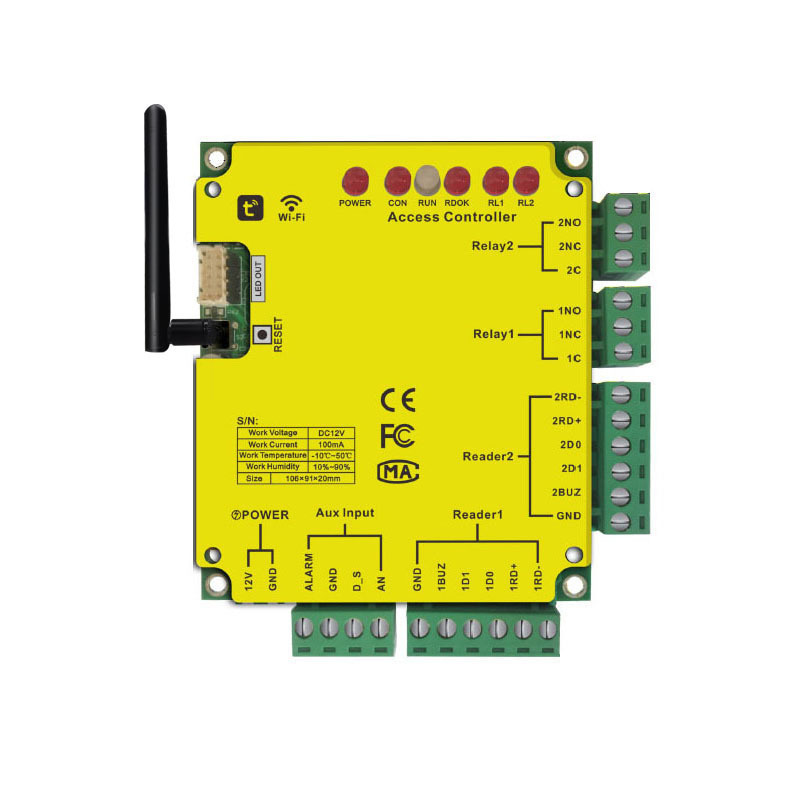

TY-C100 is an WIFI and Bluetooth one doors two way wiegand reader input mini access control panel. It supports WIFI and Bluetooth communication support smart phone TUYA APP remote unlock,Safety and easy.
The access control panel is a perfect match for the TUYA APP to provide RFID/ Biometric Security solution. TY-C100 can control one doors by default. It can option to 2 door at most that it can support up to 4 doors.
Functions:
1.Compact size
2.Communication:WIFI and Bluetooth, Wiegand(reader)
3.Controlling One Door,Tow-way Wiegand Reade
4.Support TUYA APP Online Authorization,Record Inquiry,Remote Unlock,Safety and Easy
5.One ALARM Output and One Sensor Input
6.Tuya Advanced Access Control:Scheduled,Temporary Password,Automation
Specifications:
Model:
TY-C100
Authentication Mode:
RFID/Password/RFID+Password/Temporary Password
Communication:
WIFI and Bluetooth
User
Capacity:
1,000
Number of Doors Supported by Default:
1
Tuya Advanced Access Control Fuction:Scheduled,Temporary Password,APP Online Authorization,Record Inquiry,Remote Unlock,Automation
Wiegand Reader Port:
2
Number of Readers Supported:
2
Number of Auxiliary Inputs:
1
Number of Auxiliary Outputs:
1
Exit Button:
1
Power Supply:
DC12V±10%/500mA
CPU:
8-bitMcu
Size of PCB board:
L92XW107mm
Operating Temperature:
-10°C to 50°C / 14°F to 122°F
Operating Humidity:
20% to 80%
Size of PCB board:L92XW107mm
