Quick Details
-
Warranty:
-
25, 25 years
-
Brand Name:
-
Alicosolar
-
Model Number:
-
ASM660(315 watt)-GS028
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1640/1650*992*35mm
-
Description:
-
solar panel 315 watt
-
Solar cell:
-
mono156mm*156mm
-
Weight:
-
19kg
-
Color:
-
Natural
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
Ip 65 Rated/Past connector
-
Connectors:
-
MC4 compatible IP67
-
Front Cover:
-
3.2mm high transimissiion,low Iron tempered glass
-
Certificate:
-
CE TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.8%
-
Warranty:
-
25, 25 years
-
Brand Name:
-
Alicosolar
-
Model Number:
-
ASM660(315 watt)-GS028
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1640/1650*992*35mm
-
Description:
-
solar panel 315 watt
-
Solar cell:
-
mono156mm*156mm
-
Weight:
-
19kg
-
Color:
-
Natural
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
Ip 65 Rated/Past connector
-
Connectors:
-
MC4 compatible IP67
-
Front Cover:
-
3.2mm high transimissiion,low Iron tempered glass
-
Certificate:
-
CE TUV
You Make Like
Product Introduction

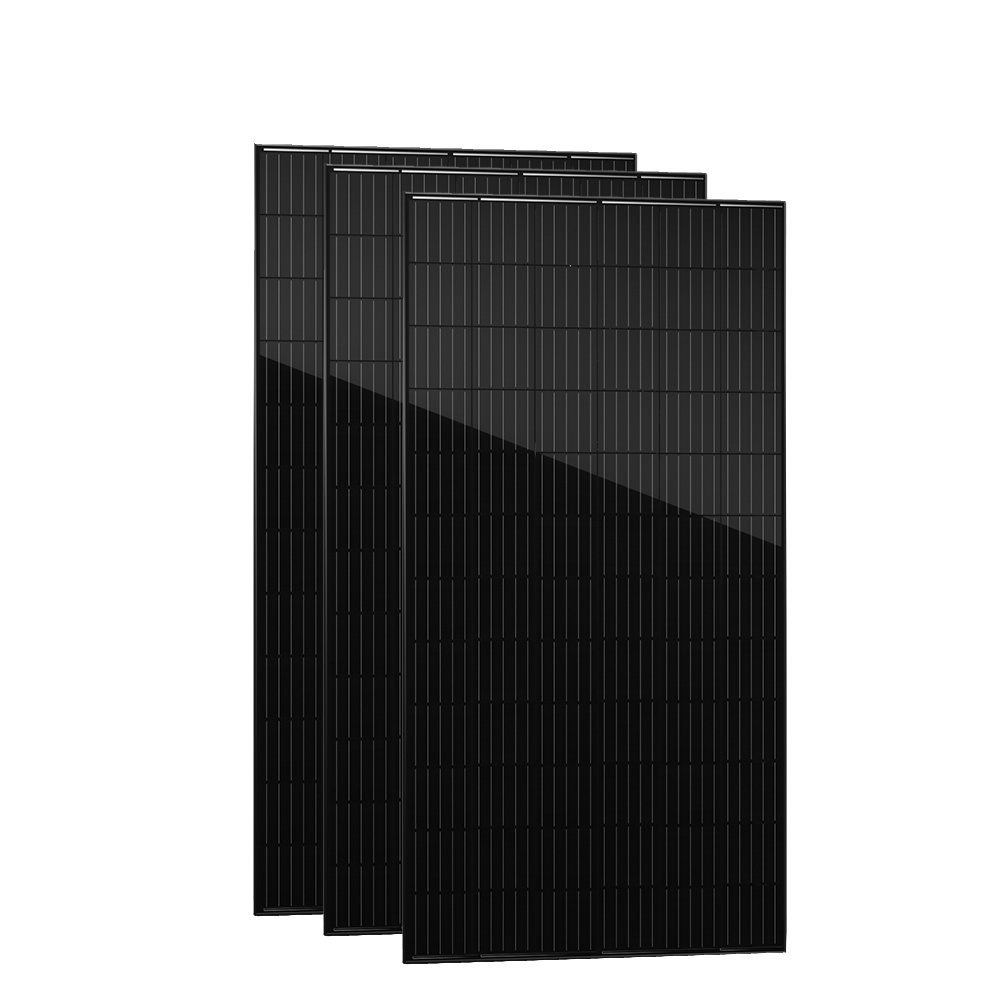

60 CELLS MONO SOLAR PANEL
Mono-crystalline modules designed for residential and utility applications, rooftop and ground mount.
Anti-reflective and self-cleaning surface reduces power loss from dirt and dust.
Excellent mechnical load resistance: certified to with stand high wind loads(2400Pa) and snow load(5400Pa)
|
ELECTRICAL DATA(STC)
|
ASM660xxx-60 xxx = Peak Power Watts
|
|
|
|
|
|
|||||
|
Peak Power Watts(Pmax/W)
|
290
|
295
|
300
|
305
|
310
|
315
|
|||||
|
Power Output Tolerance(W)
|
0~+5
|
|
|
|
|
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
32.20
|
32.40
|
32.60
|
32.80
|
33.00
|
33.20
|
|||||
|
Maximum Power Current(Imp/A)
|
9.02
|
9.10
|
9.21
|
9.30
|
9.40
|
9.49
|
|||||
|
Open Circuit Voltage(Voc/V)
|
39.50
|
39.70
|
40.10
|
40.30
|
40.50
|
40.70
|
|||||
|
Short Circuit Current(Isc/A)
|
9.55
|
9.61
|
9.72
|
9.83
|
9.92
|
10.04
|
|||||
|
Module Efficiency(%)
|
17.82
|
17.86
|
18.32
|
18.63
|
19.05
|
19.36
|
|||||
Manufcturer Show
Professional Packing
|
Model
|
ASM660xxx-60 (Size:1640*992*35mm)
|
|
|
Modules per box
|
30 pcs
|
|
|
Modules per 40' High container
|
840 pcs
|
|
|
The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
|
|
|
Projects Shown
12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015
