Quick Details
-
Brand Name:
-
BEFANBY
-
Type:
-
Motorized transfer trolley
-
Product Name:
-
Foundry plant material handling trsnafer electric railroad cart
-
Power supply:
-
Towing cable
-
Material:
-
Q235A
-
Capacity:
-
1-300ton
-
Certificates:
-
CE,ISO,SGS
-
Running time:
-
Unlimited
-
Color:
-
Customized
-
Application:
-
Industrial Filed
-
Key Words:
-
Hydraulic motorized transfer trolley
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BEFANBY
-
Type:
-
Motorized transfer trolley
-
Product Name:
-
Foundry plant material handling trsnafer electric railroad cart
-
Power supply:
-
Towing cable
-
Material:
-
Q235A
-
Capacity:
-
1-300ton
-
Certificates:
-
CE,ISO,SGS
-
Running time:
-
Unlimited
-
Color:
-
Customized
-
Application:
-
Industrial Filed
-
Key Words:
-
Hydraulic motorized transfer trolley
Products Description

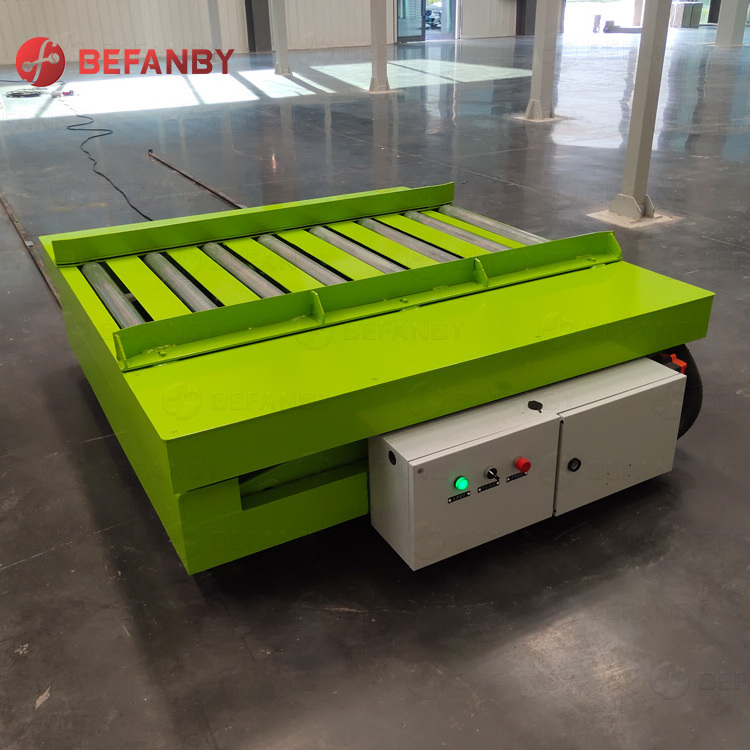

Professional foundry plant material handling trsnafer electric railroad cart
The mobile cable transfer cart is powered by dragging cable which is laid on the ground.The cable line is placed between the tow rails.The running distance of the transfer cart is less than 20m.The drag chain can be equipped to prolong the cable life time.
Features for transfer cart:
1. High frequency of use, unlimited running time.
2. Easy operation and low cost.
3. Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments.
4. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
5. Suitable for short distance running.（≤20m）
Details Images
Product Parameter
|
Modle
|
KPT-10T
|
KPT-30T
|
KPT-50T
|
KPT-80T
|
KPT-100T
|
KPT-150T
|
|||||
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.85
|
10*3.0*1.2
|
|||||
|
Power
|
Mobile Cable
|
|
|
|
|
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|||||
|
Wheel Dia.
|
350mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|||||
|
Running Speed
|
25m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|||||
|
Motor Power
|
1.5kw
|
4kw
|
5.5kw
|
7.5kw
|
11kw
|
15kw
|
|||||
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|||||
|
Reference weight
|
3.8t
|
6.3t
|
7.6t
|
12.1t
|
13.9t
|
26t
|
|||||
|
Recommend Rail
|
P18
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
|||||
Remark:
the technical parameter of the transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.
Our Advantages
Product Features
Our Company
Related Products
FAQ
Q
What is the size and load of the motorized transfer cart?
A
The size and load of our the motorized transfer cart are customized design according to your requirement.
Q
How should I operate the motorized transfer cart?
A
The motorized transfer cart is controlled by pendant & remote radio control. The controller could be a push button or joy-sticker.
Q
Whether there is professional technician assist our installation?
A
Yep, we have professional installation teams, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So we can arrange technicians.
Q
Can you help us arrange the shipment?
A
Yep, we have professional and independent Logistics & Document department. They will be responsible for arrange the logistics. Just communicate with our sales about the destination port.
