Quick Details
-
Filling Accuracy:
-
0.01-0.1g
-
Voltage:
-
0.3-0.7Mpa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YouHao
-
Dimension(L*W*H):
-
1900 x 1918 x 1167 mm
-
Weight:
-
330 KG
-
Filling pump head:
-
Servo screw feeding (double heads)
-
Filling drive:
-
Precision Servo
-
Filling accuracy:
-
0.01-0.1g
-
Sealing method:
-
Four-piece grip cover
-
Bottle way:
-
Turntable push bottle
-
Dropping method:
-
plug
-
Whether split:
-
Yes
-
Unscrambling speed:
-
120 bottles/min
-
Bottle unscrambler & edge:
-
304 stainless steel
-
Inner plug vibrating plate:
-
2
Quick Details
-
Machinery Capacity:
-
3500BPH
-
Packaging Material:
-
Plastic, Paper, Wood, Other
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Other
-
Filling Accuracy:
-
0.01-0.1g
-
Voltage:
-
0.3-0.7Mpa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YouHao
-
Dimension(L*W*H):
-
1900 x 1918 x 1167 mm
-
Weight:
-
330 KG
-
Filling pump head:
-
Servo screw feeding (double heads)
-
Filling drive:
-
Precision Servo
-
Filling accuracy:
-
0.01-0.1g
-
Sealing method:
-
Four-piece grip cover
-
Bottle way:
-
Turntable push bottle
-
Dropping method:
-
plug
-
Whether split:
-
Yes
-
Unscrambling speed:
-
120 bottles/min
-
Bottle unscrambler & edge:
-
304 stainless steel
-
Inner plug vibrating plate:
-
2
Product informatio

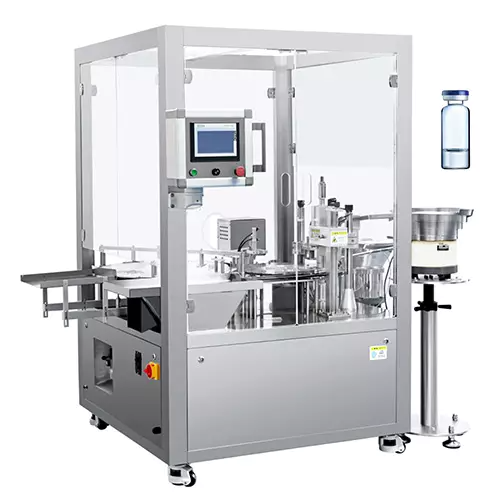

Rotary Automatic Vials Filling and Capping Machine
1. Use anti-corrosion stainless steel gear pump for filling, easy to clean and change tubes.
2. The anti-drip glass valve ensures that the dripping phenomenon is reduced during the filling process.
3. Straight-line bottle feeding design, high compatibility of packaging materials, adapt to a wide variety of bottles, easy and quick to change packaging materials and filling.
4. Automatic induction of in and out bottles, the number of filling bottles can be set, and a single discharge head can be flexibly selected/disabled.
5. The machine is compact and can be used on different occasions.
6. Widely used in food, cosmetics, medicine, daily chemical and other industries. such as alcohol, soy sauce, milk, drink, bottled water, liquid medicine, edible oil and chemical products, etc.
Application
1. Pharmaceutical medicine liquid vials, small glass bottles filling and capping.
2. Cosmetic perfume, essential oil liquid filling and capping.
3. Suitable for large scale production in high speed and low power consumption.
2. Cosmetic perfume, essential oil liquid filling and capping.
3. Suitable for large scale production in high speed and low power consumption.
Product display
Feature
1. Vials, small glass bottles filling precisely. Suitable for 1R to 20R vials.
2. Capping. Include bottle inside stopper(LYO rubbers) pressing and cap screwing or pressing.
3. Auto arrange the bottle stoppers and caps to correct direction.
4. Auto vials bottles feeding with large holder.
5. The machine is universal for a variety of materials of cap because of high-quality steel sheet that has been quenched and hardened.
6. The drive of turntable is servo drive which is smaller and lighter than other drives on the market. It can change the
orientation freely and has fast speed.
7. Warning when detecting vials without stopper.
8. Easily change the height of working station for vials that has different height and the same radius.
9. The input and output are on the same side, which is convinient for operator.
10. The whole machine is compact and movable easily.
2. Capping. Include bottle inside stopper(LYO rubbers) pressing and cap screwing or pressing.
3. Auto arrange the bottle stoppers and caps to correct direction.
4. Auto vials bottles feeding with large holder.
5. The machine is universal for a variety of materials of cap because of high-quality steel sheet that has been quenched and hardened.
6. The drive of turntable is servo drive which is smaller and lighter than other drives on the market. It can change the
orientation freely and has fast speed.
7. Warning when detecting vials without stopper.
8. Easily change the height of working station for vials that has different height and the same radius.
9. The input and output are on the same side, which is convinient for operator.
10. The whole machine is compact and movable easily.
|
General
Parameter
|
Model
|
|
HX-GX011
|
|
|||
|
|
Voltage
|
|
220V 50HZ (Customizable for 110V 60Hz)
|
|
|||
|
|
Power
|
|
2 kw
|
|
|||
|
|
Production Speed
|
|
40-50 Bottles/min (According to the dimension of bottles)
|
|
|||
|
|
PS: Automatic stop when there is no stopper. The speed of concave or half plugging will be reduced.
|
|
|
|
|||
|
|
Stopper Installation Type
|
|
Pressing
|
|
|||
|
|
Cap Installation Type
|
|
Hanging
|
|
|||
|
|
Cap Pressing Type
|
|
4 Claws Crimping
|
|
|||
|
|
Outlet Type
|
|
The push from turntable
|
|
|||
|
Filling
System
|
Filling Pump & Nozzle
|
|
316L Magnetic Pump + Anti-Dripping Nozzle
|
|
||
|
|
Filling Drive
|
|
Precision Servo Drive
|
Shenzhen
|
||
|
|
Filling Error
|
|
0.03-0.1 g
|
|
||
|
|
Filling Volume
|
|
1-10ml
|
|
||
|
|
PS: The filling nozzles are anti-dripping, which keep your working station clean.
|
|
|
|
||
|
|
Viscosity of Material
|
|
lower than or equal to viscosity of oil
|
|
||
|
|
Power
|
|
800W
|
|
||
|
Unscramble
System
|
Conjoined or Split
|
|
Conjoined
|
|
||
|
|
Motor Power
|
|
120W (Speed Adjustable)
|
|
||
|
|
Speed of Unscramble
|
|
100 bottles/min
|
|
||
|
|
Radius of Tray
|
|
500 mm
|
|
||
|
|
Material of Tray
|
|
304 Stainless Steel
|
|
||
|
Main Part
|
Turntable Power
|
|
400W
|
|
|
|
|
Servo Spliter
|
|
DELTA
|
CN, Taiwan
|
|
|
|
Electromagnetic Valve
|
|
AirTAC
|
CN, Taiwan
|
|
|
|
Relay
|
|
Honeywell
|
US
|
|
|
|
PLC
|
|
(Pick one of two) SIEMENS / MITSUBISHI
|
DE / JP
|
|
|
|
Touch Screen
|
|
SIEMENS
|
DE
|
|
|
|
Photoelectric Sensor
|
|
KEYENCE
|
JP
|
|
|
|
Inverter
|
|
(Only equip if ask) Danfoss
|
DK
|
|
|
|
Power Supply
|
|
(Pick one of two) DELTA / MEANWELL
|
CN, Taiwan
|
|
|
|
Air Switch
|
|
(Pick one of two) Honeywell / Schneider
|
US / FR
|
|
|
|
Switch Button
|
|
Honeywell
|
US
|
|
|
|
Stopper Unscramble Device
|
|
1 Set
|
Frequency
Control |
|
|
|
Cap Unscramble Device
|
|
1 Set
|
|
|
|
|
Dimension
|
|
1900 x 1918 x 1167 mm
|
|
|
|
|
Weight
|
|
330 kg
|
|
|
|
|
Rack Material
|
|
304 Brushed Surface Stainless Steel
|
|
|
|
|
Wheel
|
|
FOOT MASTER Wheel |
|
|
|
|
Truntable Material
|
|
Anodised Brusher Aluminum Plate
|
|
|
|
|
Bracket
|
|
304 Stainless Steel Stick
|
|
|
|
|
Waranty
|
|
Whole machine for 1 year
|
|
|
Stainless Steel Bracket
It can bear 38 kg and be adjusted to different height freely without tools.
Anti-Dripping Nozzle
It prevent dripping of filled material accidentely.
Filling Height Adjustment of Bottles
Can be Easily modified by the height of bottles. Just turn the knob directly without fixed handle.
4 Claws Crimping for Cap Pressing
