Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Weight (KG):
-
85 KG
-
Types:
-
Fiber laser
-
Material:
-
metal
-
Color:
-
white red
-
standard:
-
GB
-
Voltage:
-
220V
-
Dimensions:
-
800*600*1300(mm)
-
Certification:
-
ISO
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Function:
-
Cutting Engraving Marking
Quick Details
-
Engraving Area:
-
100mm*100mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Weight (KG):
-
85 KG
-
Types:
-
Fiber laser
-
Material:
-
metal
-
Color:
-
white red
-
standard:
-
GB
-
Voltage:
-
220V
-
Dimensions:
-
800*600*1300(mm)
-
Certification:
-
ISO
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Function:
-
Cutting Engraving Marking
Video Description

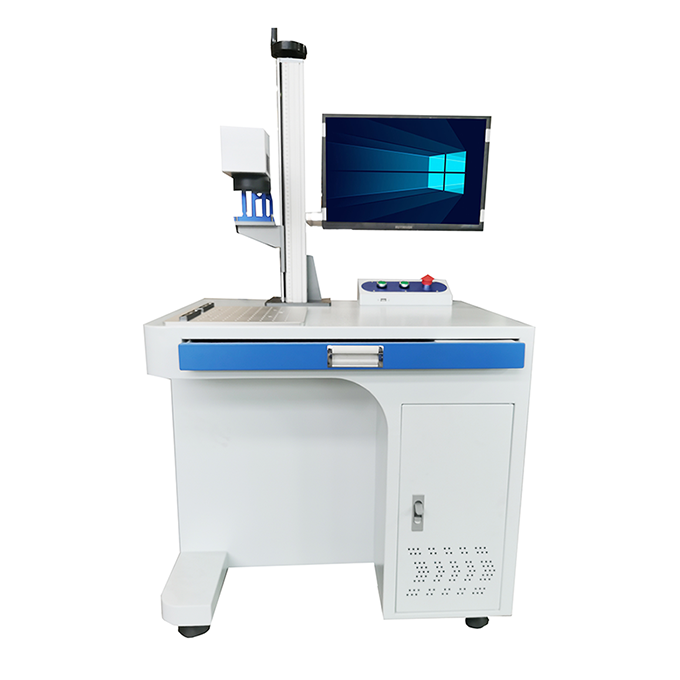

Products Description
|
FiberApplication
|
Fiber laser
|
|
Laser wavelength
|
1064nm
|
|
Laser repetition rate
|
20-80KHZ
|
|
Engraving range
|
110*110mm
|
|
Engraving depth
|
≤0.2mm
|
|
Engraving line speed
|
≤7000mm/s
|
|
Minimum line width
|
0.05mm
|
|
Minimum character
|
0.2mm
|
|
Repeat accuracy
|
±0.05mm
|
|
Power consumption of the whole machine
|
500W
|
Engraving results
Fiber laser features
The fiber laser adopts the coupling technology of multi-mode pump light and double-clad fiber with single-mode core to obtain a fully reinforced side-side parallel pump fiber laser. Its main features are:
①Good beam quality, TEM00 single-mode output, collimated beam diameter 10mm, M2<1.3, beam divergence angle 0.24mrad;
②After focusing, the spot diameter is small, and the peak power density of the working point is very high (109W/cm2 is very suitable for
Fine marking, punching and other applications).
③High pulse repetition frequency; very suitable for high-speed marking.
④Using maintenance-free main oscillation power amplification technology and seed light source pulse generation technology; high reliability, mean no failure
