Quick Details
-
Type:
-
COMPOSITE INSULATOR
-
Material:
-
COMPOSITE/POLYMER
-
Application:
-
HIGH VOLTAGE
-
Rated Voltage:
-
132kv-800kv
-
Tensile Strength:
-
High
-
CERTIFICATE:
-
TEST REPORT/ISO9001
-
SAMPLE:
-
AVAILABLE
-
OEM:
-
AVAILABLE
-
Insulator fittings:
-
Ball, Socket, Tongue, Clevis, Eye,Pin, Tie,Flange etc.
-
Usage:
-
Power Station
-
Advantage:
-
Anti-pollution corrosion resistance,high mechanical strength
-
Rod diameter:
-
4mm-220mm Insulator epoxy resin rod
-
Dimension:
-
Customized
-
Product name:
-

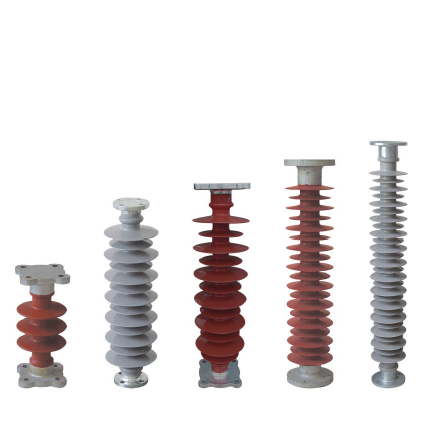

Electrical transmission line polymer composite insulator
-
Standard:
-
IEC62231
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TID POWER
-
Model Number:
-
FXBW
-
Type:
-
COMPOSITE INSULATOR
-
Material:
-
COMPOSITE/POLYMER
-
Application:
-
HIGH VOLTAGE
-
Rated Voltage:
-
132kv-800kv
-
Tensile Strength:
-
High
-
CERTIFICATE:
-
TEST REPORT/ISO9001
-
SAMPLE:
-
AVAILABLE
-
OEM:
-
AVAILABLE
-
Insulator fittings:
-
Ball, Socket, Tongue, Clevis, Eye,Pin, Tie,Flange etc.
-
Usage:
-
Power Station
-
Advantage:
-
Anti-pollution corrosion resistance,high mechanical strength
-
Rod diameter:
-
4mm-220mm Insulator epoxy resin rod
-
Dimension:
-
Customized
-
Product name:
-
Electrical transmission line polymer composite insulator
-
Standard:
-
IEC62231
|
Specified Voltage (KV) |
SBL (KN) |
Section Length H(mm) |
Min Arcing Distance h(mm) |
Min Nominal Creepage Distance L(mm) |
Lightning Impulse Withstand Voltage (kV) |
Power Frequency withstand voltage (kV) |
P.F.withstand voltagemin wet(kV) |
|
|
FZSW-10/4.0 |
10 |
4 |
230±5 |
150 |
250 |
75 |
42 |
30 |
|
FZSW-22/6.0 |
22 |
6 |
330±5 |
250 |
450 |
150 |
75 |
50 |
|
FZSW-35/5.0 |
35 |
5 |
580±5 |
467 |
1400 |
230 |
144 |
95 |
|
FZSW-66/8.0 |
66 |
8 |
535±5 |
530 |
1450 |
250 |
150 |
115 |
|
FZSW-110/8.0 |
110 |
8 |
1220±5 |
1060 |
3200 |
550 |
320 |
230 |
|
FZSW-132/10 |
132 |
10 |
1750±5 |
1630 |
8000 |
890 |
510 |
400 |
|
FZSW-132/12 |
132 |
12 |
1300±5 |
1070 |
5800 |
650 |
420 |
320 |
|
FZSW-132/12 |
132 |
12 |
1700±5 |
1340 |
5800 |
700 |
450 |
340 |
|
FZSW-220/6.0 |
220 |
10 |
2300±5 |
2174 |
9500 |
1250 |
710 |
550 |
if you couldn't find the suitable specification in the form, please check with us!
Product advantage:
We adopt advanced injection producing technology for housing and shed design.
unique aerodynamics principle.
Double Seal End Part Design Good Hydrophobicity Performance
