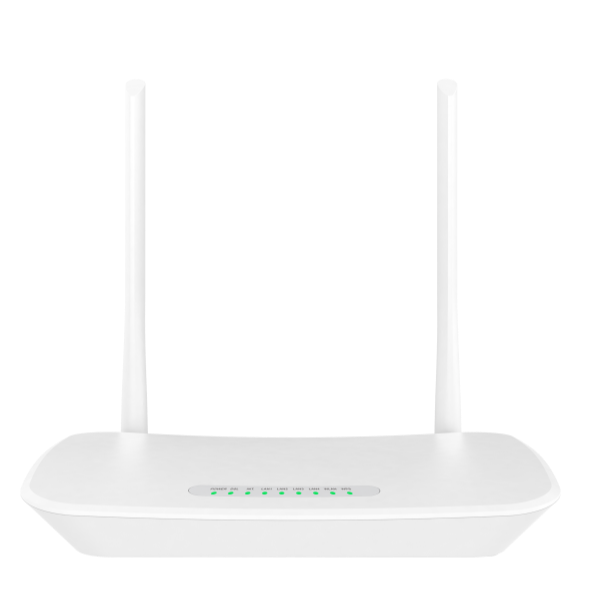

The
ZXA623
offers up to 24Mbps downstream ADSL2 speeds and up to 1Mbps upstream integrated 802.11n technology .It provides 300Mbps wireless transmission rates,WEP data encryption and WPA/WPA2 wireless security, stateful packet inspection (SPI) firewall protection. Priority queues and packets allow your home to experience streaming without worrying about congestion.
- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZEXING
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
300Mbps Wireless WiFi Router
-
Antenna:
-
4 External Antennas
-
Keywords:
-
High Speed 4G Wifi Router
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Interface:
-
3 LAN /1 WAN
-
Support:
-
WPA/WPA2
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZEXING
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
300Mbps Wireless WiFi Router
-
Antenna:
-
4 External Antennas
-
Keywords:
-
High Speed 4G Wifi Router
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Interface:
-
3 LAN /1 WAN
-
Support:
-
WPA/WPA2
Products Description
-
Product performance description
-
Details Images
Specification
|
Chipset
|
RTL8676S+RTL8271B+RTL8192E
|
|
Flash
|
4MB SPI NOR
|
|
RAM
|
16MB SDRAM SOC
|
|
Wireless protocol
|
IEEE 802.11b/g/n
|
|
Connection rate
|
WiFi：2.4G=300Mbps
ADSL2+：upstream 1Mbps downstream 24Mbps |
|
RF metrics
|
2.4G 11N HT40 MCS7=16dBm(+/-2dB)
|
|
User interface
|
4*LAN 10/100Mbps
1* ADSL 1*DC JACK |
|
Indicator
|
Power,DSL,INT,LAN1-4,WLAN,WPS
|
|
Key
|
1*PWR ,1*WPS,1*Reset,1*WLAN
|
|
Antenna
|
2*2.4G 5dBi fixed external antenna
|
|
Environment
|
Operating temperature:0℃～40℃;
Operating humidity:10%～95% non-condensing |
|
|
Storage temperature:-20℃～70℃;
Storage humidity:5%～95% non-condensing |
|
Power supply
|
110～240VAC 12V/0.5A DC
|
|
Power Consumption
|
6W
|
Function
|
WAN connetion
|
Support Bridge/IPoE/PPPoE/PPPoA/IPoA Internet access mode, IPv4/IPv6 dual stack, wizard, PVC auto search, ADSL mode
|
|
Wireless
|
WiFi5 Basic Features/Advanced Configuration, Guest Network, Black and White List
|
|
Encrypt
|
WEP/WPA/WPA2,WPS，802.1X
|
|
Management features
|
WEB，Telnet/CLI，DHCP，IP&MAC bind ，TR069，SNTP
|
|
System maintenance
|
Device Management, User Management, Configuration Management, Upgrade Management, Log Function, Status Statistics, Restart/Reset
|
|
Advanced features
|
DMZ, ALG, Virtual Server, Port Trigger, Advanced NAT, Port Binding, DDNS, UPnP, ATM QoS, IP QoS, Static Routing, RIP, 6RD/DS-Lite
tunnel, IGMP/MLD, Diagnostic Tests |
|
Security features
|
Anti-DOS attack, MAC filtering, IP/port filtering, URL filtering, ACL access control
|
|
Software system
|
OSK
|
Basic parameters
|
Size
|
204mm*120mm*32mm
|
|
Weight
|
210g
|
|
Certification
|
Complies with CE requirements
|
|
Order Information
|
[ZXA401] 1*AD 4*LAN
|
