Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huiqian
-
Voltage:
-
N/A
-
Dimension(L*W*H):
-
1000L*400W*100H
-
Weight (KG):
-
40 kg
-
Power Supply:
-
Non Power
-
Color:
-
Light Green
-
Application:
-
All Industrial Filed Needed
-
Roller material:
-
Low Carbon Steel
-
Shaft:
-
Low Carbon Steel Pipe
-
Roller Pitch:
-
75
-
Roller Length:
-
400
Quick Details
-
Power:
-
N/A
-
Warranty:
-
1 Year
-
Width or Diameter:
-
38
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huiqian
-
Voltage:
-
N/A
-
Dimension(L*W*H):
-
1000L*400W*100H
-
Weight (KG):
-
40 kg
-
Power Supply:
-
Non Power
-
Color:
-
Light Green
-
Application:
-
All Industrial Filed Needed
-
Roller material:
-
Low Carbon Steel
-
Shaft:
-
Low Carbon Steel Pipe
-
Roller Pitch:
-
75
-
Roller Length:
-
400

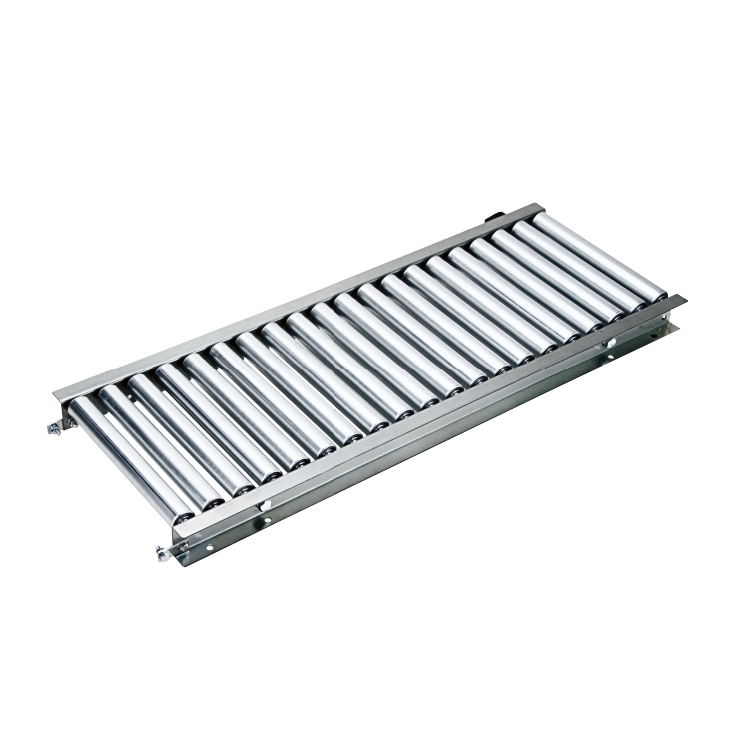

l shaped automatic container loading steel free conveyor
The roller conveyor also named gravity conveyor, gravity roller conveyor, usually adopts the steel conveyor rollers to installed within a certain frame to transfer workpiece on the surface. One of the
simple type is non power roller conveyor, also called manual roller conveyor, because there's no drive
part and need manual pushing to make the workpiece transferring on rollers.
The manual roller conveyor has the feature of heavier laoading than the driving one, and there're more sizes for buyers' optional. Wuxi Huiqian has the roller conveyor sizes more than others, the obvious charactor is roller diameter. Roller diameter of Huiqian is from 8mm to 76mm
Table 1-- Roller Conveyor:
Drawing 1
Drawing 2
Table 2--Roller & Conveyor Specifications:
| roller width (mm) | W | 100 | 200 | 250 | 300 | 400 | 500 | 600 |
| conveyor width(mm) | W+75 | 175 | 275 | 325 | 375 | 475 | 575 | 675 |
| roller loading(kg) | 60 | 56 | 45 | 35 | 26 | 19 | 17 | |
| conveyor weight(kg) | 50P | 20.8 | 25.5 | 31 | 35.5 | 41.2 | 47.8 | 56.5 |
| 3000mm length | 75P | 18.1 | 21.5 | 25.2 | 28.5 | 32.3 | 36.8 | 42.8 |
| roller weight (g) | 210 | 265 | 390 | 440 | 550 | 660 | 780 |
1. Roller is a new type structure diffirent from others:
Our roller is Japanese new type, more strong structure with very good looking.
The bearing can be repalced from roller end if damaged; saving maintanance cost.
2. Japanese standard quality: high quality standard with competetive cost.
3. 1 year quality garranty( non-artificial damage).
4. Full experienced engineers & technicals to ensure the design & conveyors' good quality.
5. Good business clients & parteners' long business cooperation.
6. Credit enterprise, good after-sale service, specialised sales and manufacturing.
Covered with hard paper,then plastic thin film covered outside,Put into container by turn,and filled with lines to prevent tilting or any damage
