Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
MG-KG110
-
Mechanical Life:
-
10000000000
-
Material:
-
V0 flame retardant PC+ABS
-
Voltage:
-
AC110~240V 50/60Hz
-
Type-C output:
-
5V1A
-
Power:
-
500W/Gang
-
Working temperature:
-
0°C~40°C
-
Wireless frequency:
-
2.4GHz
-
RF working frequency:
-
433.92MHZ
-
Size:
-
8.6*8.6*3.86cm
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
AC110~240V 50/60Hz
-
Customized support:
-
Packaging and logo
-
Place of Origin:
-
China
-
Model Number:
-
MG-KG110
-
Mechanical Life:
-
10000000000
-
Material:
-
V0 flame retardant PC+ABS
-
Voltage:
-
AC110~240V 50/60Hz
-
Type-C output:
-
5V1A
-
Power:
-
500W/Gang
-
Working temperature:
-
0°C~40°C
-
Wireless frequency:
-
2.4GHz
-
RF working frequency:
-
433.92MHZ
-
Size:
-
8.6*8.6*3.86cm
Product Description

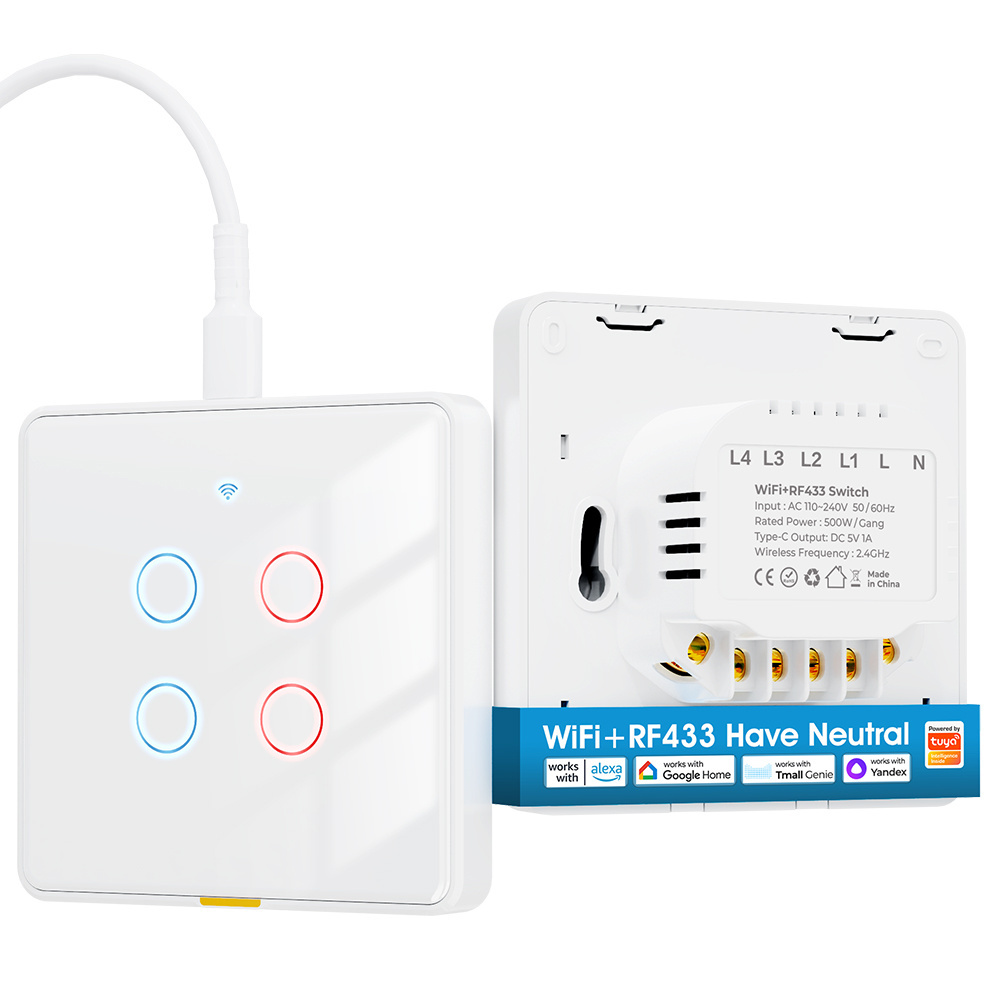

--【No need for data cables, making your home tidier】
The "C smart" series is used with Type-C powered "C smart" switches and sockets and other equipment. No data cable is required. The advanced design concept integrates beauty and technology. It is easy to install and does not occupy the socket position. Say goodbye to data cables. Too much desktop clutter.
--【Modular assembly, customized combination】
Type-C interface design is a very convenient and flexible interface standard that can be plugged in and used. In order to ensure the overall beauty of the home, we have designed a complete set of smart products, including smart doorbells, night lights, switches, sockets, temperature and humidity, presence sensors, cameras and other smart security sensors. As long as you replace the old switches or sockets at home with our "C smart" series, it is so easy to install the accessories. Wherever you need them, the elderly and children can install them. Just plug in and pull out, and it's easy.
--【Partition design, double insurance, safer】
1. At the switch wiring, we set up a circuit isolation board to avoid the intersection of lines, effectively eliminating the problem of short circuit caused by no baffle.
2. We have also installed an isolation board between the switch panel and the circuit board to avoid direct contact with the circuit board, which helps protect the equipment, protect your safety, and give you more peace of mind.
--【2.5D curved tempered glass panel】
Elegant appearance, classic colors can better match any home style. The panel is made of 2.5D curved tempered glass, with smooth paint on the sides. The overall feel is delicate and easy to clean. It is also moisture-proof, allowing it to work in humid conditions, preventing most accidents, making it durable and safe to use. (Only the black model uses smooth paint)
--【Voice and mobile APP control】
After connecting to the smart gateway, you can easily control our smart switches using voice through Tmall Genie, Alexa, Yandex, and Google Home Assistant. Connect to the Tuya APP on your mobile phone and simply configure it to start your smart home journey, enjoy smart life and free your hands.
--【RF433]
In addition to voice and mobile phone, our switches also support RF433 remote control control, with an ultra-long sensing distance of 100 meters without barriers. A variety of control methods are available for you to choose from.
--【Indicator light and fluorescent strip design】
The switch indicator uses red light and blue light/no light (the backlight can be turned off through the APP at night) to distinguish the switch status. The bottom of the switch is thoughtfully equipped with a fluorescent strip, which emits a faint reminder. Even if the backlight is turned off, you can easily find the switch position at night. At the same time, the brightness of the light strip is moderate and will not affect your sleep.
--【Timing function】
Timing can be set according to personal habits to automatically control the switch, supporting timing, countdown, cycle timing, random timing, and inching timing. It can help us make rational use of electrical appliances and avoid long-term unnecessary use, thereby extending product life and saving power consumption.
--【Multi-control association】
The multi-control association function allows you to turn off or turn on multiple smart switches with one click, avoiding energy waste caused by forgetting to turn off the switches. For example, when you leave home, you only need to turn off all smart switches with one click through the mobile APP to ensure that all electrical equipment is turned off and save electricity. It provides a more convenient, flexible, energy-saving, safe and reliable use experience, making smart home management more intelligent and efficient.
--【A variety of functions】
1. Three states:
On by default, off by default, memory function. For example, the smart switch power-off memory function can record the last state of use. When the power is turned on again after a power outage, the switch will automatically restore to the previous state without resetting, saving the user's time and energy and improving convenience of use. You can also set the device status after power off and on again.
2. Offline reminder:
Our smart switches also have a device offline reminder function, which can help users understand device status in a timely manner, improve device management efficiency, and effectively prevent device failures.
3. Device sharing:
Through the device sharing function, every family member can easily enjoy the convenience of smart switches through their mobile phones.
4. Group control:
Set up groups for smart switches and control multiple smart devices with a single command through the app. For example, set up a "sleep group" and when you want to sleep, you can turn off all devices in the group at the same time with just one click.
--Precautions:
1. Bluetooth is only used for network signal connection and
cannot be used alone. WIFI+Bluetooth is more stable.
2. The remote control needs to be purchased separately.
3. Type-C is slightly hot when charging, which is normal, don’t worry.
4. This product requires a neutral wire.
【Single product packaging parameters】
Net weight: 1Gang112g, 2Gang122g, 3Gang132g, 4Gang142g
Gross weight: 1Gang157g, 2Gang168g, 3Gang179g, 4Gang190g
Quantity:1PCS
Size:9.5*9.5*5.2cm
【Carton packaging parameters】
Net weight: 1Gang7.85KG, 2Gang8.4KG, 3Gang8.95KG, 4Gang9.4KG
Gross weight: 1Gang8.35KG, 2Gang8.9KG, 3Gang9.45KG, 4Gang9.9KG
Quantity: 50PCS/carton
Size:49.5*28*21cm
--Product parameters:
Material: V0 flame retardant PC+ABS
Voltage: AC110~240V 50/60Hz
Type-C output: 5V1A
Power: 500W/Gang
Working temperature: 0°C~40°C
Wireless frequency: 2.4GHz
RF working frequency: 433.92MHZ
RF encoding chip: EV1527
RF modulation method: ASK
Size: 8.6*8.6*3.86cm
