① UV LED Lamp ②Anti-static,Anti-crash ③TAIWAN HIWIN guide rail ④Industrial Printhead ⑤Universal Wheel ⑥Ink tank ⑦Power switch area
- Product Details
- {{item.text}}
Quick Details
-
Print Dimension:
-
2.0m*3.0m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
4030mm*4070mm*1500MM
-
Weight:
-
1800 KG
-
Ink Type:
-
UV Curable Ink
-
Marketing Type:
-
New Product 2022
-
Type:
-
Digital Printer
-
Color:
-
Multi Color Printing
-
Print head:
-
RICOH GEN5/RICOH GEN6/TOSHIBA
-
Printing Size:
-
2.0m*3.0m
-
Printhead arrangement:
-
C M Y K LC LM Lc Lm W V optional
-
Print Speed:
-
12-40sqm/hr
-
Printhead number:
-
2-16
-
Media Thickness:
-
0-100mm, higher can be customize
-
Life of printed image:
-
5years(outdoor),10years(indoor)
-
keyword:
-
billboard printing machine
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Print Dimension:
-
2.0m*3.0m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Dimensions(L*W*H):
-
4030mm*4070mm*1500MM
-
Weight:
-
1800 KG
-
Ink Type:
-
UV Curable Ink
-
Marketing Type:
-
New Product 2022
-
Type:
-
Digital Printer
-
Color:
-
Multi Color Printing
-
Print head:
-
RICOH GEN5/RICOH GEN6/TOSHIBA
-
Printing Size:
-
2.0m*3.0m
-
Printhead arrangement:
-
C M Y K LC LM Lc Lm W V optional
-
Print Speed:
-
12-40sqm/hr
-
Printhead number:
-
2-16
-
Media Thickness:
-
0-100mm, higher can be customize
-
Life of printed image:
-
5years(outdoor),10years(indoor)
-
keyword:
-
billboard printing machine
Product Description
Printhead
Ricoh GEN5/Ricoh GEN6
Printhead 2-8 units optional
Print Effect
Color, White, Varnish and
embossing effect optional.
Application
Advertising Industry,
Furniture Industry

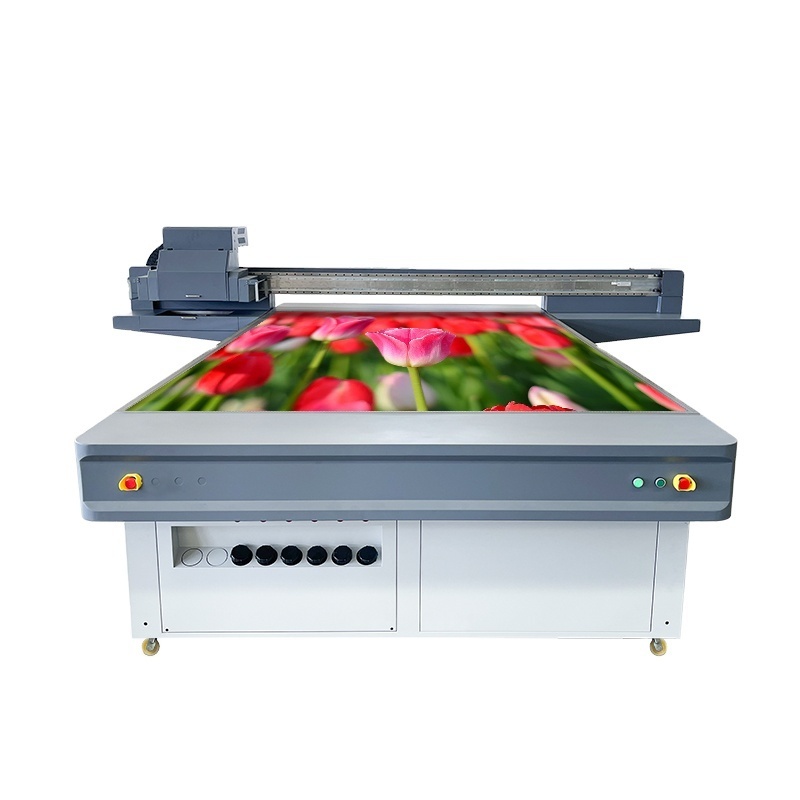

Machine Details
YC2030L
Each Part Details
|
Specifications
|
|
|
|
|
||||
|
Product Model
|
|
YC2030L
|
|
|
||||
|
Printhead Type
|
|
RICOH GEN5/GEN6/KM1024I/SPT1024GS
|
|
|
||||
|
Printhead Number
|
|
2-8 heads
|
|
|
||||
|
Ink Characteristics
|
|
UV Curing Ink (VOC Free)
|
|
|
||||
|
Ink reservoirs
|
|
Refillable on the fly while printing/3000ml per color
|
|
|
||||
|
LED UV Lamp
|
|
more than 30000-hours life made in Korea
|
|
|
||||
|
Printhead arrangement
|
|
CMYK LC LM W V Optional
|
|
|
||||
|
Printhead Cleaning System
|
|
Automatic Cleaning System
|
|
|
||||
|
Guide Rail
|
|
TAIWAN HIWIN/THK Optional
|
|
|
||||
|
Working Table
|
|
Vacuum Sucking
|
|
|
||||
|
Printing Size
|
|
2000*3000mm
|
|
|
||||
|
Print Interface
|
|
USB2.0/USB3.0/Ethernet Interface
|
|
|
||||
|
Media Thickness
|
|
0-100mm(Higher can be customized)
|
|
|
||||
|
Print Resolution& Speed
|
|
720X600dpi
|
4PASS
|
15-33sqm/h
|
||||
|
|
|
720X900dpi
|
6PASS
|
10-22sqm/h
|
||||
|
|
|
720X900dpi
|
8PASS
|
10-22sqm/h
|
||||
|
Life of printed image
|
|
3 years(outdoor),10years(indoor)
|
|
|
||||
|
File Format
|
|
TIFF,JPEG,Postscript,EPS,PDF etc.
|
|
|
||||
|
RIP Software
|
|
Photoprint /Ripprint/onyx optional
|
|
|
||||
|
Power Supply
|
|
220V 50/60Hz(10%)
|
|
|
||||
|
Power
|
|
3100W
|
|
|
||||
|
Operation Environment
|
|
Temperature 20 to 30 ℃,Humidity 40% to 60%
|
|
|
||||
|
Machine Dimension
|
|
4.03*4.07m*1.5m
|
|
|
||||
|
Packing Dimension
|
|
4.31*0.8*1.14m/4.3m*2.26m*1.27m
|
|
|
||||
|
Weight
|
|
1500kg
|
|
|
||||
|
Warranty
|
|
12 months exclude the consumables
|
|
|
||||
|
Above specification subject to change without notice beforehand
|
|
|
|
|
||||
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolu-tion. It is suitable for long-time working, 24 hours running.
Vacuum Suctional Platform
Hard anodized vacuuming platform to prevent scratches by hard materials
, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material,the platform surface hardness is high, scratch resistance, corrosion resistance.
TAIWAN HIWIN Screw
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
German IGUS
Drag chain
Utilize Germany IGUS mute drag chain on X axis, suitable for protection of cable and tubes under high speed motion.With high performance, low noise, make the working environment more comfortable.
Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance good, low speed running is stable, dynamic response is timely, running stable.
Large capacity ink tank and ink shortage alarm system
Printhead Anti-collision
TAIWAI HIWIN Guide Rail
Negative Pressure System
Secondary cartridge
Temperature control system
Anti-Static Device
Automatic height measurement
Registration Pin
Printing Samples
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V All three colors at once
The use of varnish makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect printing product, make the product more durable.
Wood
Ceramic Tile
Glass
Acrylic
Metal
Plastic
Varnish
Braille
Embossing
Factory&Workshop
Linyi Win-Win Machinery Co.,Ltd
Linyi win-win Machinery Co.,ltd was established in 2009, locating in Linyi City, Shandong
province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume.
NTEK is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer. digital printing machine was exported since 2009, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
NTEK UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries.
NTEK uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry
Linyi win-win Machinery Co.,ltd was established in 2009, locating in Linyi City, Shandong
NTEK is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer. digital printing machine was exported since 2009, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
NTEK UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, and strive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions according to different demands in various industries.
NTEK uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry
Ｏne Year Warranty
Important parts,
warranty for one year.
Free Replacement
Within the warranty period, free replacement of damaged parts caused by quality problems.
Intimate After-sales
Support 24 hours after-sales service on online
Packaging&Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.Delivery Detail: Shipped in 7 working days after payment.
FAQ
1. Can the printing speed be improved by adding printhead?
Yes, usually adding printheads can increase the printing speed, please advise what printing speed you want to achieve, so we can check and recommend printhead number which is suitable for you.
6. Can I buy ink from our local company instead of your company? Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, should send the new part within 48hours by express like TNT,DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metal, acrylic, marble etc
2. How about the Maintenance and after-sales service?
After you get the machine, firstly we will send you operate manual and installation videos, our engineer will teach you how to install machine by online ways, such as whatsapp/wechat/Dingtalk, whenever you have questions for machine, you can freely contact engineer. In addition, Remote guide service also be supported.
3. How long is the warranty for your machines?
UV printer warranty is 12 months(except printhead and ink system, which belong to consumables) and We will provide Lifetime service for you.
4. What kinds of materials need add coating before printing? Before printing Glass,ceramic, metal, acrylic, need to add coating to add Adhesion.
5. How about the quality of your products?
We are professional UV printer manufacturer for 12 years, all machines self-developed and produced, in addition,We have quality inspection process. All machines are inspected before delivery to ensure the performance and stability of the machine. So machine quality is guaranteed.
6. Can I buy ink from our local company instead of your company? Yes, but our ink have been tested many times by our printers, the ink fluency, flavor and colors have been turned out to be most suitable to our printers.
7. How soon can you deliver your machines?
Usually 5-7 working days. After factory receive your deposit,will arrange to produce for you in time.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, should send the new part within 48hours by express like TNT,DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metal, acrylic, marble etc
