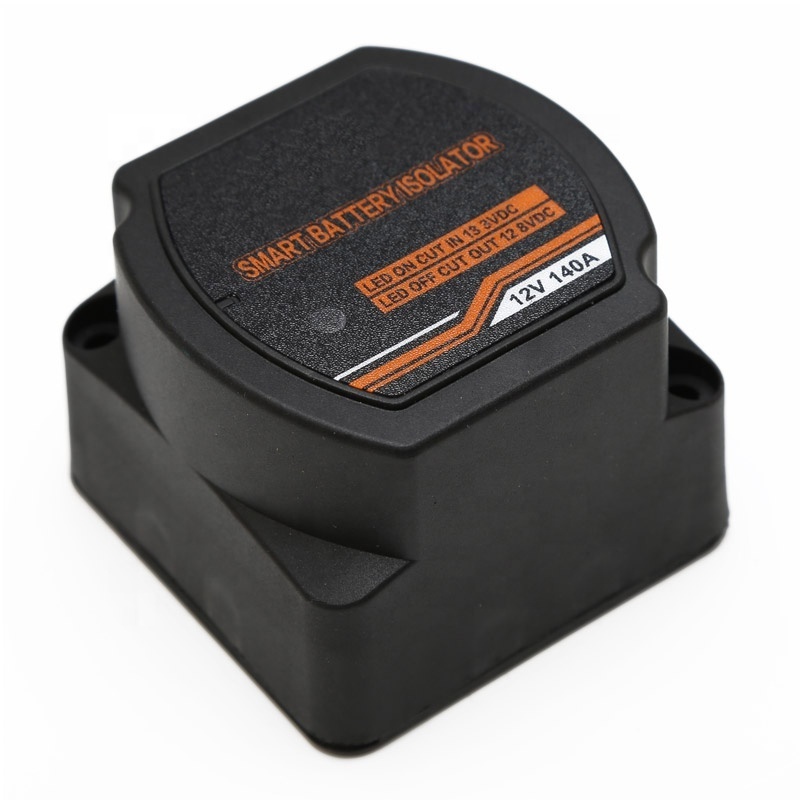

12V 140A VSR Voltage Sensitive Relay Split Charger Smart Dual Intelligent Battery Isolator Switch for Car Camper Motorhome

12V 140A VSR Voltage Sensitive Relay Split Charger Smart Dual Intelligent Battery Isolator Switch for Car Camper Motorhome

FOB Reference Price: Get Latest Price

≥100 Pieces

US $12

≥500 Pieces

US $11.5

≥2000 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: senreach

Model Number:: 12V 140A intelligent battery isolator

Car Make:: Vans, Trucks, RVs, ATV, UTV, Boats, etc

Product Name:: 12V 140A VSR Voltage Sensitive Relay Intelligent Battery Isolator

Rated Voltage:: 12V 24V

Rated Current:: 140A

Material:: Plastic + Metal

Stud:: M6

Cut-In Voltage:: 13.2V

Cut-Out Voltage:: 12.8V

Delay:: Cut In 3-5 Seconds / Disconnect 3-5 Seconds

IP Rating/ Glass:: IP65

Application:: Boat, Yacht, RV, Motorhome, Marine, etc

Quick Details

OE NO.:: senreach-922

Warranty:: 12 Months

Place of Origin:: Guangdong, China

Brand Name:: senreach

Model Number:: 12V 140A intelligent battery isolator

Car Make:: Vans, Trucks, RVs, ATV, UTV, Boats, etc

Product Name:: 12V 140A VSR Voltage Sensitive Relay Intelligent Battery Isolator

Rated Voltage:: 12V 24V

Rated Current:: 140A

Material:: Plastic + Metal

Stud:: M6

Cut-In Voltage:: 13.2V

Cut-Out Voltage:: 12.8V

Delay:: Cut In 3-5 Seconds / Disconnect 3-5 Seconds

IP Rating/ Glass:: IP65

Application:: Boat, Yacht, RV, Motorhome, Marine, etc

The Description of 12V 140A VSR Voltage Sensitive Relay Disconnect Kill Split Charger Universal Smart Intelligent Dual Battery Isolator Switch for Car Camper Motorhome

12V 140A VSR Voltage Sensitive Relay Disconnect Kill Split Charger Universal Smart Intelligent Dual Battery Isolator Switch for Car Camper Motorhome

•DC CIRCUIT BREAKERS

• POWER BREAKER

• MAIN BREAKER

• SMART DUAL BATTERY ISOLATOR

-Applied to solar system, inverter, new energy vehicles, trucks, forklift and other devices.

Durable Made for Safety Use/ Built To Prolong Battery Lifespan/ Keep You Main Battery Fully Charged/ Prevent the Start Battery from Being Run Down/ Waterproof Shockproof Withstand Harsh Weather

The Details of 12V 140A VSR Voltage Sensitive Relay Disconnect Kill Split Charger Universal Smart Intelligent Dual Battery Isolator Switch for Car Camper Motorhome

Rated Voltage	12V 24V
Rated Current	140A
Material	Plastic + Metal
Stud	M6
Cut-In Voltage	13.2V
Cut-Out Voltage	12.8V
Delay	Cut In 3-5 Seconds / Disconnect 3-5 Seconds
IP Rating/ Glass	IP65

Kindly Note:

This voltage sensitive relay is design for two battery systems (SUITABLE for Acid-Lead batteries, NOT SUITABLE for Lithium batteries), allow to having two separate power sources while charging by one alternator, it's all need to charge and isolate two battery systems.

The Feature of 12V 140A VSR Voltage Sensitive Relay Disconnect Kill Split Charger Universal Smart Intelligent Dual Battery Isolator Switch for Car Camper Motorhome:

【High Quality】 The double battery insulator is made of high quality ABS material, convenient and durable, waterproof and wear-resistant, shockproof, sturdy and durable. 【Premium Material】 Made of high quality ABS and metal, internal layer is sealed by silicon, strong and durable, not easy to damage, wear resistant, shock resistant. IP67 waterproof rating to withstand extreme weather environments. 【Real-time Voltage Display 】12V 140Amp dual battery isolator is constructed with a voltmeter and LED display, which displays the current voltage status in real time, allowing you to control the battery status at any time. 【Smart Charging】 The battery charge relay can automatically merge two batteries when charging, and automatically isolate two batteries when not charging. The voltage sensitive relay can be used for a long time, so it does not need to replace frequently, which affects battery energy consumption. 【Strong Power】 This battery isolator relay has a voltage sensitive chip to ensure your main battery will provide strong power for vehicle operation. Perfect fit under the hood to get close to your dual battery. 【Easy to Install】 No alternator or ignition connection required. After installation, it can still be used normally even if it is affected by vibration, various bad weather and other factors.

【Manual State】 Long Press the button for 3 seconds, the BLUE led will be On, and the manual mode is on. Press the button each time, you can complete the circuit connection and disconnection. Circuit switched on the red indicator, voltmeter lights up at the same time. Switched off the red indicator, voltmeter lights off. 【Auto State】 Long press the button for 3 button again, the BLUE led will be Off, the Auto mode is on. Voltage exceed 13.3V: Circuit will be automatically connected. Voltmeter & Indicator ON. Voltmeter lower than 12.7V: Circuit will be automatically disconnected. Voltmeter & Indicator Off.

Why Choose Us/Our Advantages

The Senreach smart dual charger battery relay split isolator are compact, weather proof and light weight designed. The highly visible manual reset switch allows for a clear fault indication. Ignition protection and flame resistant materials makes these breakers ideal for installation in gasoline powered vehicles and engine compartments. The terminal studs are front facing for ease of installation and covered with protective caps to prevent short circuits and current jumps.

Application

Widely Application: The smart dual charger battery relay dplit isolator auto manual IP67 VSR with digital voltmeter voltage display is universal type, can be wiely used in Car, Vehicles, Truck, Vans, Trucks, RVs, Motorhomes, ATV, UTVs, 5 Wheels SUV, Boats, Off Road Vehicles,Campers, Yacht, Marine, Caravan, not Fit for lithium batteries.
