Quick Details
-
Model Number:
-
C-228D-246-86, C-228D-246-86
-
Voltage:
-
High Pressue
-
Dimension(L*W*H):
-
223.23*86.61*168.43
-
Weight:
-
3 KG
-
Features:
-
Conventional Walking-beam
-
Product name:
-
pumping unit
-
After-sales Service Provided:
-
Overseas service center available
-
Reducer Rating:
-
80(1000in-lbs)
-
Structure Capacity:
-
119((100lbs)
-
Stroke Length:
-
64m
-
Unit Weight:
-
8.5t
-
Power:
-
Electric
-
Standard or Nonstandard:
-
standard
-
standard:
-
API 11E
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sanmon
-
Model Number:
-
C-228D-246-86, C-228D-246-86
-
Voltage:
-
High Pressue
-
Dimension(L*W*H):
-
223.23*86.61*168.43
-
Weight:
-
3 KG
-
Features:
-
Conventional Walking-beam
-
Product name:
-
pumping unit
-
After-sales Service Provided:
-
Overseas service center available
-
Reducer Rating:
-
80(1000in-lbs)
-
Structure Capacity:
-
119((100lbs)
-
Stroke Length:
-
64m
-
Unit Weight:
-
8.5t
-
Power:
-
Electric
-
Standard or Nonstandard:
-
standard
-
standard:
-
API 11E

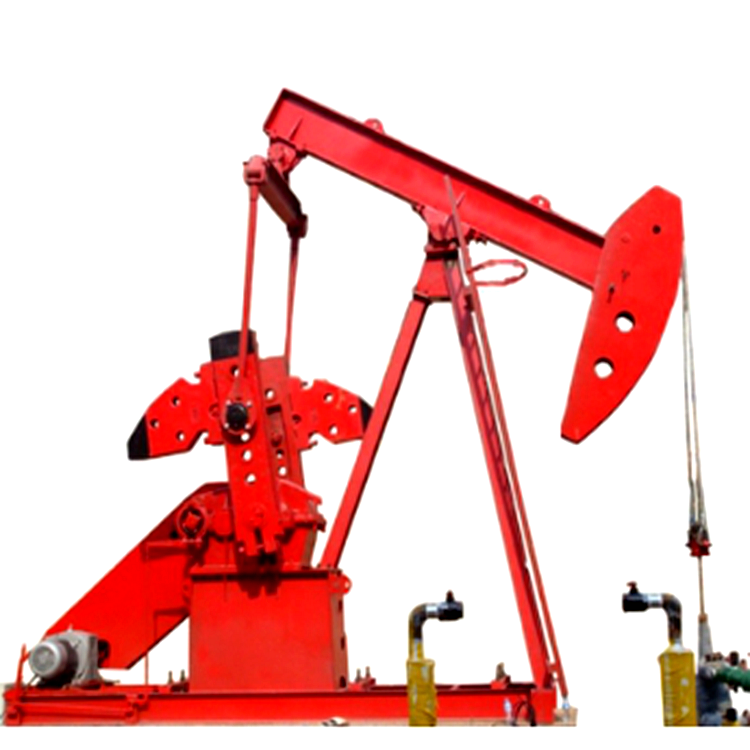

Our API series conventional beam pumping units completely accords with API Specification. Modularization and virtual manufacturing technology have been adopted in the process of designing, product structure has been optimized, and the parts are of high standardization, universalization, and serialization.
|
Model
|
Rated polished rod load (lbs)
|
Stroke length (in)
|
Rated torque of reducer (in.lbs)
|
|
C-912D-470-240
|
47,000
|
240, 211, 181
|
912,000
|
|
C-912D-427-216
|
42,700
|
216, 185, 155
|
912,000
|
|
C-912D-427-192
|
42,700
|
192, 165, 138
|
912,000
|
|
C-912D-305-192
|
30,500
|
192, 165, 138
|
912,000
|
|
C-912D-365-168
|
36,500
|
168, 144, 121
|
912,000
|
|
C-912D-305-168
|
30,500
|
168, 144, 121
|
912,000
|
|
C-912D-427-144
|
42,700
|
144, 123, 102
|
912,000
|
|
C-640D-305-192
|
30,500
|
192, 165, 138
|
640,000
|
|
C-640D-305-168
|
30,500
|
168, 144, 121
|
640,000
|
|
C-640D-365-144
|
36,500
|
144, 123, 102
|
640,000
|
|
C-640D-305-144
|
30,500
|
144, 123, 102
|
640,000
|
|
C-640D-256-144
|
25,600
|
144, 123, 102
|
640,000
|
|
C-640D-305-120
|
30,500
|
120, 102, 84
|
640,000
|
|
C-456D-305-168
|
30,500
|
168, 144, 121
|
456,000
|
|
C-456D-305-144
|
30,500
|
144, 123, 102
|
456,000
|
|
C-456D-256-144
|
25,600
|
144, 123, 102
|
456,000
|
|
C-456D-365-120
|
36,500
|
120, 102, 84
|
456,000
|
|
C-456D-305-120
|
30,500
|
120, 102, 84
|
456,000
|
|
C-456D-256-120
|
25,600
|
120, 102, 84
|
456,000
|
|
C-320D-256-144
|
25,600
|
144, 123, 102
|
320,000
|
|
C-320D-256-120
|
25,600
|
120, 102, 84
|
320,000
|
|
C-320D-213-120
|
21,300
|
120, 102, 84
|
320,000
|
|
C-320D-305-100
|
30,500
|
100, 85, 70
|
320,000
|
Sanmon Machinery equipments ltd. is a professional team and a loyal friend, which has cooperated with customers around the world. Client come first! Our commitment to quality is not only delivering qualified goods but also an attitude throughout our team. We are responsible for every step of our cooperation.
Sanmon Machinery Equipments Co. Ltd. provides many kinds of products, such as sucker rod ,sucker rod pump,pump unit,and some parts. All our sucker rod are according to API 11B, we not only have standard design them, but also provide products according to customer's requirements.
