Quick Details
-
Brand Name:
-
ZYD or custom
-
Product type:
-
access control card reader
-
keyword:
-
UHF reader
-
Application:
-
access control system
-
read range:
-
8-15m
-
weight:
-
180g
-
support card:
-
TK4100,EM4100,EM4200
-
Color:
-
black or customized
-
size:
-
110*80*26mm
-
Function:
-
card reader
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZYD or custom
-
Product type:
-
access control card reader
-
keyword:
-
UHF reader
-
Application:
-
access control system
-
read range:
-
8-15m
-
weight:
-
180g
-
support card:
-
TK4100,EM4100,EM4200
-
Color:
-
black or customized
-
size:
-
110*80*26mm
-
Function:
-
card reader

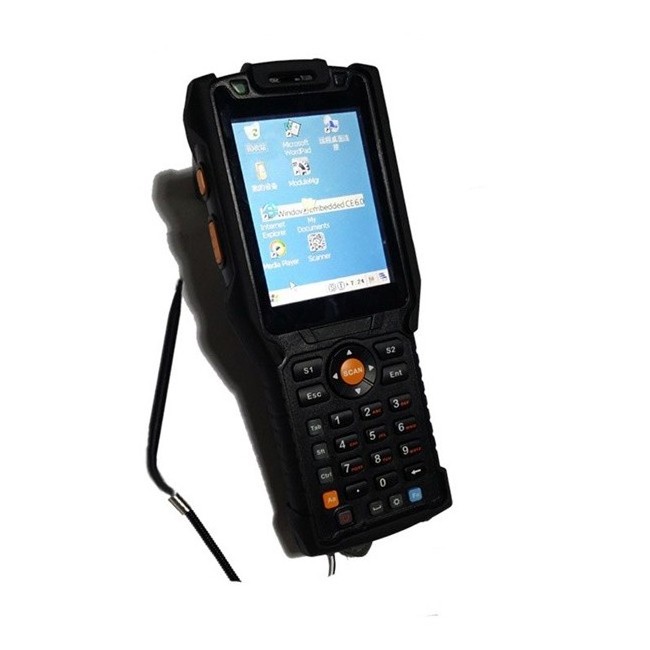

Portable Handheld long range UHF rfid card tag reader
| Operation System |
Microsoft Windows CE 6 .0 OS |
| CPU |
SamSung Cortex-A8 1GH z CPU |
| Memory | 256MB RAM, 256MB ROM |
| Extension Storage | T-Flash/Micro SD Card, up to 32GB |
| Networks |
UMTS2100/900 MHz |
|
UMTS1900/850 MHz |
|
|
GSM850/900/1800/1900 MHz |
|
| wifi | |
| Display | 3.5” TFT LCD, Capacitive Touch Screen |
| Camera | Front 2.0M and Rear 5.0M Pixels, Auto Focus with Flash |
| Wireless Communication | |
| GPS | Integrated, 10m |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | BT 2.1 |
| Optional Parts | |
| UHF RFID | ISO 18000-6C, 0-10m |
| NFC Scanner | Supported |
| Contact IC Card | Compatible with ISO 7816-3 and EMV 4.2 |
| Contactless IC Card | ISO/IEC 14443 Type A/B |
| Fingerprint Reader | Capacitive Sensor, 508 DPI |
| Barcode Scanner (1D) | UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes |
| Barcode Scanner (2D) | PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
| Physical Layer Parameter | |
| Dimensions |
maximum size: 190mm*75mm*30mm Handle: 90mm*60mm*25mm |
| PSAM | 2 slots |
| Battery | 3.7V, 3500mAh |
| USB | Mini-USB 10pin |
| Charger | DC 5.5V 1.2A |
| Headphone | Supported, 3.5mm |
| Speaker | supported |
| Ruggedness | IP65, waterproof, dustproof, shockproof |
| Reliability | MTBF no less than 10000 hours |
| Temperature | -20℃~+70℃ |
packaging:
Q-ty: 2000/5000/10000pcs/roll
Box size: 330*330*370mm
Weight:15-20Kg
P.S. packaging as customized
Shipping:
Shipment as customized
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, Aria air post.
You also can choose your own shipping forwarder.
