Quick Details
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Type:
-
Construction Lift Platform
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
POWERSTON
-
Model Number:
-
ZLP630
-
Model:
-
ZLP630
-
Material:
-
aluminum alloy
-
Platform Length:
-
6m
-
Lifting Height:
-
100m 150m 200m
-
Lifting Speed:
-
8.3m/min
-
Rated load:
-
630kg
-
Color:
-
grey
-
Voltage:
-
380V 50HZ 3 phase
-
Motor power:
-
2*1.5KW
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Type:
-
Construction Lift Platform
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
POWERSTON
-
Model Number:
-
ZLP630
-
Model:
-
ZLP630
-
Material:
-
aluminum alloy
-
Platform Length:
-
6m
-
Lifting Height:
-
100m 150m 200m
-
Lifting Speed:
-
8.3m/min
-
Rated load:
-
630kg
-
Color:
-
grey
-
Voltage:
-
380V 50HZ 3 phase
-
Motor power:
-
2*1.5KW
Products Description

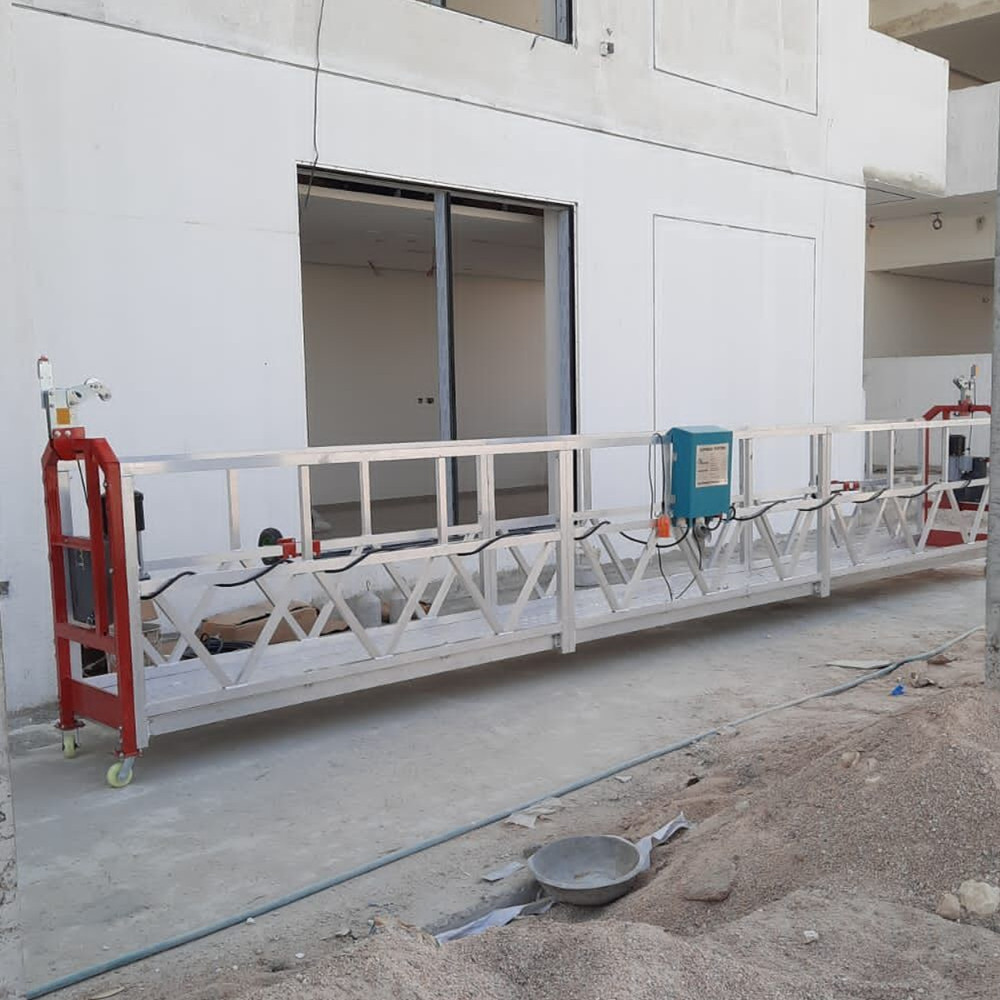

Compared with traditional scaffolding, suspended platform is scientific in design, rational in structure. It is convenient to operate, safe and reliable, and high efficiency. It is widely used for exterior construction of high-rise building, bridge
construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and facade decoration and so on.
Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Rated load of the platform is 500 kg to 1000 kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3 m/min to 9.6 m/min. The suspension mechanism system can be adjusted to complicated buildings in different height.
Three kinds of materials optional: steel painted, steel galvanized, and aluminum alloy. The standard dimension of platform is 2 m*3 sections or 2.5 m* 3 sections in length, 0.69 m in width, and 1.3 m in height, also size can be customized according to your need.
construction, chimney construction, window cleaning, inspection and maintenance, curtain wall installation and facade decoration and so on.
Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Rated load of the platform is 500 kg to 1000 kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3 m/min to 9.6 m/min. The suspension mechanism system can be adjusted to complicated buildings in different height.
Three kinds of materials optional: steel painted, steel galvanized, and aluminum alloy. The standard dimension of platform is 2 m*3 sections or 2.5 m* 3 sections in length, 0.69 m in width, and 1.3 m in height, also size can be customized according to your need.
specification
Details Images
Hoist Motor
Safety Lock
Electric Control Panel
Power Cable
Steel Wire Rope
Sockets
Product Paramenters
|
Model
|
ZLP500
|
ZLP630
|
ZLP800
|
ZLP1000
|
|||
|
Rated load
|
500kg
|
630kg
|
800kg
|
1000kg
|
|||
|
Lifting speed
|
8.3m/min
|
|
|
|
|||
|
Platform length
|
2.5m*2
|
2m*3
|
2.5m*3
|
2.5m*3
|
|||
|
Motor power
|
2*1.5kw
|
2*1.5kw
|
2*1.8kw
|
2*2.2kw
|
|||
|
Lifting height
|
100m/150m
|
|
|
|
|||
|
Counter weight optional
|
25kg*30pcs
|
25kg*36pcs
|
25kg*40pcs
|
25kg*44pcs
|
|||
|
Hoist motor
|
LTD6.3
|
LTD6.3
|
LTD8.0
|
LTD10.0
|
|||
|
Safety lock
|
LST30
|
LST30
|
LST30
|
LST30
|
|||
