Quick Details
-
Max. Lifting Height:
-
9.5m-18m
-
Span:
-
2.905*2.225m
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
liediao
-
Weight (KG):
-
2000 kg
-
Product Type:
-
Electric single boom crane
-
Weight:
-
2000(kg)
-
Usage:
-
Building Material Shops, Machinery Repair Shops, Manufacturing Plant,
-
Size:
-
Customizable
-
Color:
-
Accept Customized
-
Package:
-
Wooden Cases
-
After Warranty Service:
-
Video technical support
-
Customized:
-
Yes
-
Material:
-
Thickened Steel Plate
-
MOQ:
-
1 pcs
Quick Details
-
Application:
-
factory
-
Rated Loading Capacity:
-
500KG
-
Rated Lifting Moment:
-
1220mm
-
Max. Lifting Height:
-
9.5m-18m
-
Span:
-
2.905*2.225m
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
liediao
-
Weight (KG):
-
2000 kg
-
Product Type:
-
Electric single boom crane
-
Weight:
-
2000(kg)
-
Usage:
-
Building Material Shops, Machinery Repair Shops, Manufacturing Plant,
-
Size:
-
Customizable
-
Color:
-
Accept Customized
-
Package:
-
Wooden Cases
-
After Warranty Service:
-
Video technical support
-
Customized:
-
Yes
-
Material:
-
Thickened Steel Plate
-
MOQ:
-
1 pcs
Products Description

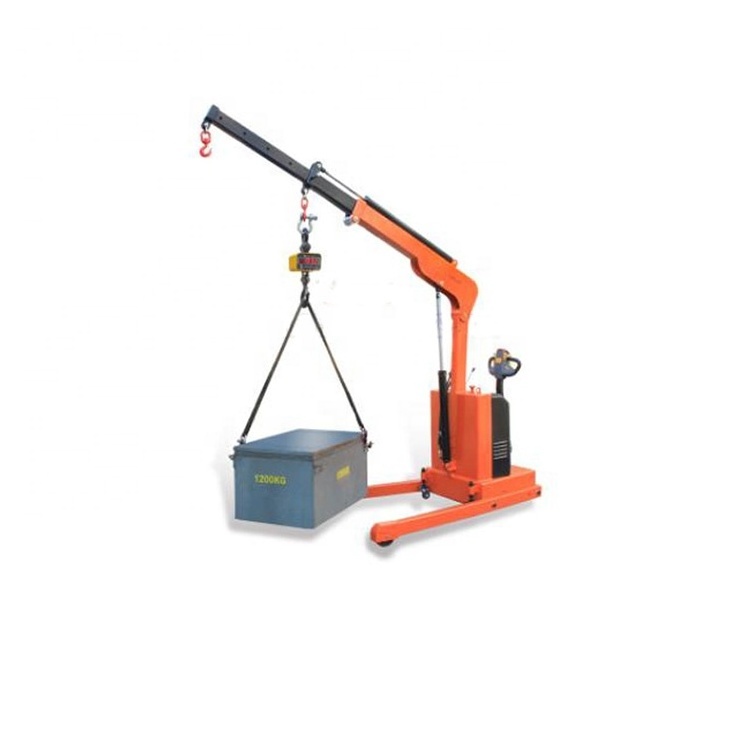

China 1 Ton Electric Extended Boom Telescopic Mobile Crane Small Hydraulic Mobile Crane
Electric jib crane
1: High power traveling driving wheel
2: Joint venture hydraulic pump station, powerful power, Valta maintenance free battery, durable power
3: High quality oil cylinder, heavy reshaping design, easy and convenient adjustment of boom distance through oil cylinder
4: With safety valve, it can be folded and packed with small volume,
5: It is suitable for operation in areas where forklift is not easy to enter
station driven all electric rotary single boom crane
.
Model: YLF01
Name: station driven all electric rotary single boom crane
Load: 300-1000kg
Maximum lifting height: 3.6m
When the boom is fully extended, the total boom length is 3.27M, and the load is 300kg
When the boom is fully retracted, the total boom length is 1.62m, and the load is 1000kg
The rotation range of the boom is 120 degrees (60 degrees to the left and 60 degrees to the right respectively)
The hook is pulled by the steel wire rope when the boom does not move, and can be controlled up and down by remote control
Electric lifting, electric telescoping, electric rotation, electric walking station driving with electronic steering
Driving electric power: 1.2kW
Lifting motor power: 2.2kw
Battery parameters: 24v/1210ah*4 (Valta maintenance free battery)
Minimum overall dimension length, width and height: 2200*110*2155mm
Front wheel: diameter 150*70mm
Drive wheel: diameter 250*80mm
Self weight: 1070kg
fully electric single boom crane
.
Model: YLE01
Name: fully electric single boom crane
Load: 200-1000kg
Maximum ground clearance: 3.5m
When the boom is fully extended, the total boom length is 3.1m, and the load is 200kg
When the boom is fully retracted, the total boom length is 1.44M, and the load is 1000kg
Dead weight: 600kg
Product features: electric lifting, electric telescopic, electric walking
Front wheel size: 150*50mm
Drive wheel size: 250*80mm
Applicable to relatively flat ground
Battery parameters: 12v/120ah*2 (Valta maintenance free battery)
Lifting motor: 2.2kw
Drive motor power: 0.75kw
Turning radius: 1750mm
.
semi electric single boom crane
.
Model: YLD01
Name: semi electric single boom crane
Load: 200-1000kg
Maximum ground clearance: 3.5m
When the boom is fully extended, the total boom length is 3.1m, and the load is 200kg
When the boom is fully retracted, the total boom length is 1.44M, and the load is 1000kg
Product features: electric lifting, electric telescopic, hand push walking
Product weight: 466kg
Battery parameters: 12v/120ah*1 (Valta maintenance free battery)
Lifting motor: 1.6kw
Drive motor power: 0.75kw
Turning radius: 1750mm
.
counterweight full electric single arm crane
.
Model: YLH01
Name: counterweight full electric single arm crane
Load: 200-1000kg
Maximum lifting height: 3.54M
Load 200kg when the arm exceeds 2780mm of the base
Load 2000kg when the arm length is flush with the base
Product features: electric lifting, electric telescopic, electric walking
Driving electric power: 0.75kw
Lifting motor power: 2.2kw
Battery parameters: 12v/120ah*2 (Valta maintenance free battery)
Vehicle length, width and height: 2200*1050*1950mm
Front wheel: diameter 150*70mm
Drive wheel diameter: 250*80mm
Dead weight: 1325kg
.
