Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hwashi
-
Dimension(L*W*H):
-
12000x2500x2200mm
-
Weight:
-
4000
-
Electricity Requirement:
-
Three-phase Four Wires 380V±10%
-
Power:
-
400KVA,air switch 600A
-
Control Method:
-
PLC
-
Effective Welding Width:
-
1200mm
-
Effective Welding Length:
-
4000mm
-
Automatic Moving Speed:
-
200-500mm/s Adjustable
-
Welding Efficiency:
-
60sec/pc
-
Rated Air Pressure:
-
0.6MPa
-
Cooling Water Temperature:
-
15-25℃
-
Required Operator Number:
-
Two people
Quick Details
-
Capacity:
-
1000L
-
Max Working Pressure(MPa):
-
1000 MPa
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hwashi
-
Dimension(L*W*H):
-
12000x2500x2200mm
-
Weight:
-
4000
-
Electricity Requirement:
-
Three-phase Four Wires 380V±10%
-
Power:
-
400KVA,air switch 600A
-
Control Method:
-
PLC
-
Effective Welding Width:
-
1200mm
-
Effective Welding Length:
-
4000mm
-
Automatic Moving Speed:
-
200-500mm/s Adjustable
-
Welding Efficiency:
-
60sec/pc
-
Rated Air Pressure:
-
0.6MPa
-
Cooling Water Temperature:
-
15-25℃
-
Required Operator Number:
-
Two people
Product Description
Hwashi IBC Cage Frame Welding Machine ibc tank Production Line IBC Tank Stainless Steel Tubular Cage Automatic Welding Machine
ibc tank welding machine

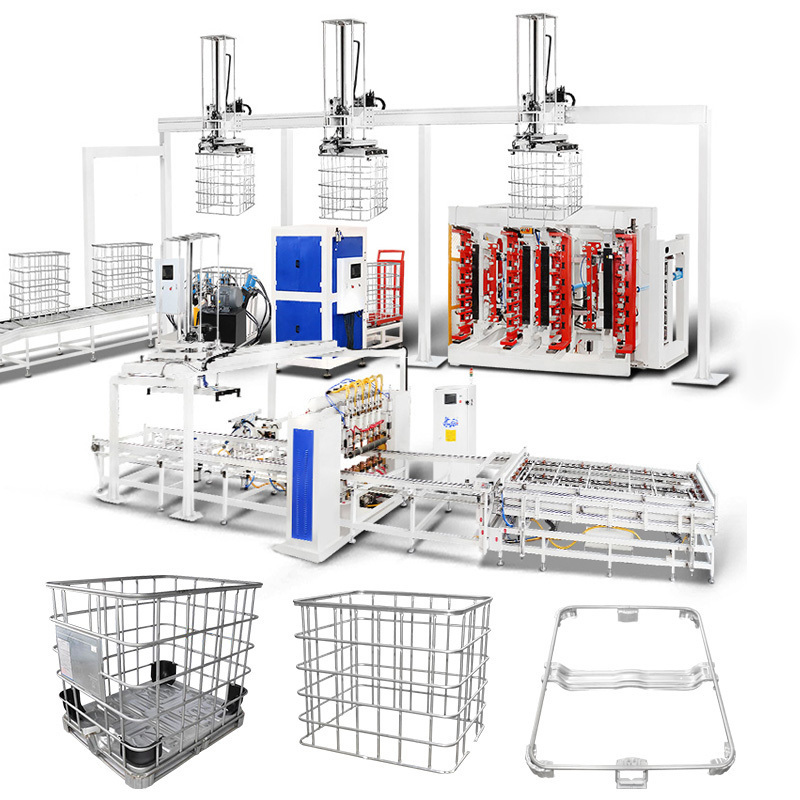

Hwashi IBC Cage Frame Automatic Welding Machine Automatic Production Line is a special designed production line for IBC cage frame. The whole line machine
includes cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 2-3 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.
Running Process
Production Capacity: 90 sec/pc
（including welding, bending, locking, and hole punching process)
IBC tank welding machine Production line equipment
IBC tank frame welding machine、bending
machine
、locking
machine
、hole punching
machine
、base frame welding
machine
the full set of production equipment.
Six-Head IBC Frame Automatic Welding Machine
The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material.
Flat Tube Mesh and Firm Welding Quality
The welding machine will weld the tube into flat mesh type. Firm and strong welding quality. It will take about 60sec to complete the welding process.
Vertical Double Station IBC Frame Bending Machine
IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation and high efficiency.
Bend the Flat Mesh into Square Shape
The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.
IBC Cage Frame Locking Machine
IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.
Locking Efficiency and Quality
The locking machine will lock the ends of the tube frame using hydraulic force. It will takes about 25-30sec to complete the locking process.
IBC Cage Frame Hole Making and Punching Machine
IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.
Hole Making Efficiency and Quality
The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process.
IBC Cage Base Frame Welding Machine
The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically.
Final Product of Base Frame
We can add the automatic loading and unloading device for the base frame welding machine as per your requirement.
The welding efficiency is about 15-20 sec/pc.
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Factory & Certificate
Certifications
We have passed the international certifications such as
CE
certification,
ISO9001
quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting:
1.spot welding machine 1 years warranty except consumable parts;
1.spot welding machine 1 years warranty except consumable parts;
2.Plenty of technical support
online
is available;
3.Quick Back-up Parts Available&Technical Assistance;
4. "Training Video","Instruction Book" ,and "Operation Manual" will be offered;
3.Quick Back-up Parts Available&Technical Assistance;
4. "Training Video","Instruction Book" ,and "Operation Manual" will be offered;
Service Team & feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment
22
years ago
, hwashi technology has traveled to all corners of the world, participated in more than
100
exhibitions
and served more than
8,000
customers
