Quick Details
-
Medium::
-
mud,brine, cement
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name::
-
Annulus casing packer
-
Color::
-
Red as for request
-
Medium::
-
mud,brine, cement

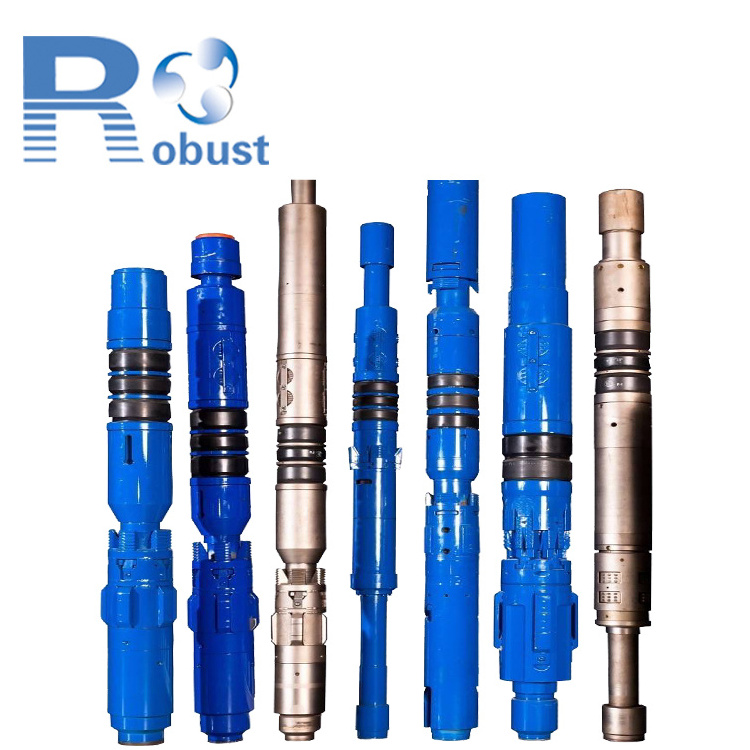

API oil well drilling Annulus casing packer (ACP) for mud
Casing Packer (casing external packer) uses hydraulic expansion type structure, mainly be used in the complex wells'(oil,gas,water) completion project, to achieve downhole packer and bridging and in favor of improvement of the quality of completion. The practice proved that this tool have characters of easy operation,wide adaptability, it has a very important position in the completion project.
Hydraulic expansion packer mainly consists f of e valve m system t joint assembly, rubber barrel, central tube ,casing sub. The valve system s is d divided o into axial valve m system d and l radial e valve system. Radial e valve m system s is d composed of a a set of
Casing Packer Specification
| Model |
Max. OD (mm) |
Nominal Diameters (mm)
|
Effective Length (mm) |
Sealing Length of Rubber Tube (mm) |
Well Diameters Range |
| HXK48 | 78 | 48 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK60 | 89 | 60 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK73 | 102 | 73 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK89 | 114 | 89 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK102 | 133 | 102 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK114 | 146 | 114 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK127 | 154/148 | 127 |
2600/3540/4540/ 5540/7540/11540 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK140 | 178/183/190 | 140 |
2900/3850/4850/ 5850/7850/11850 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK168 | 202 | 168 |
2900/3850/4850/ 5850/7850/11850 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK178 | 206 | 178 |
2900/3850/4850/ 5850/7850/11850 |
1150/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK245 | 286 | 245 |
3180/4280/5280/ 6280/8280/11280 |
1050/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK273 | 324 | 273 |
3180/4280/5280/ 6280/8280/11280 |
1050/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
| HXK298 | 349 | 298 |
3180/4280/5280/ 6280/8280/11280 |
1050/2000/3000/ 4000/6000/10000 |
D+15~1.7D |
