Quick Details
-
Color:
-
VIDEO FULL COLOR, Full-color
-
Panel Size:
-
250*250mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
R-1407
-
Specification:
-
500*500mm
-
Brightness:
-
5000cd, 5000cd/sqm
-
pixel density:
-
65536
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
16bit
-
Lifespan (hours):
-
100000
-
IP Rating:
-
IP65
-
HS Code:
-
8531200000
-
Resolution:
-
32736
-
View Angle（H/V）:
-
160/160
-
Keyword:
-
led screen panel
-
Warranty:
-
3 Years
-
Life span:
-
100000 Hs
-
Module size:
-
250*250 Mm
-
Certificate:
-
CE ROHS FCC
-
Installation:
-
Easy
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
KESUOSI
-
Color:
-
VIDEO FULL COLOR, Full-color
-
Panel Size:
-
250*250mm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
R-1407
-
Specification:
-
500*500mm
-
Brightness:
-
5000cd, 5000cd/sqm
-
pixel density:
-
65536
-
Contrast Ratio:
-
5000:1
-
Color Depth:
-
16bit
-
Lifespan (hours):
-
100000
-
IP Rating:
-
IP65
-
HS Code:
-
8531200000
-
Resolution:
-
32736
-
View Angle（H/V）:
-
160/160
-
Keyword:
-
led screen panel
-
Warranty:
-
3 Years
-
Life span:
-
100000 Hs
-
Module size:
-
250*250 Mm
-
Certificate:
-
CE ROHS FCC
-
Installation:
-
Easy

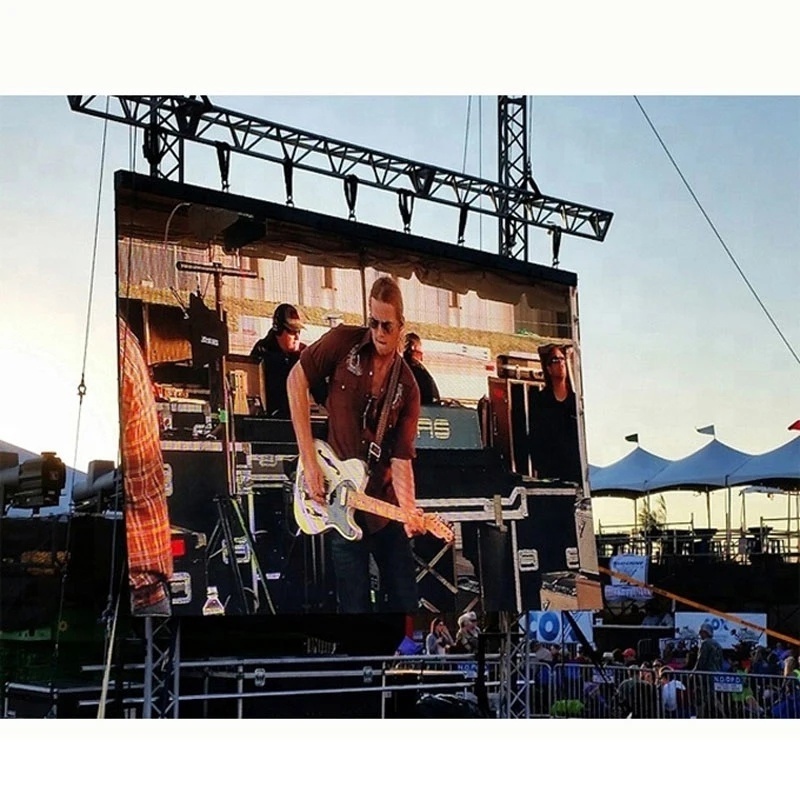

Rental LED Display Series Indoor Outdoor LED Screen HD LED Display Board
P2.6 P2.9 P3.91 P4.81 indoor outdoor stage background led display
* 500*500mm and 500*1000mm die casting aluminum panel for your choose.
* High brightness , high refresh rate.
* Nova star/Color light/Linan control system indoor outdoor led screen
*Free power and signal cables
Products Parameters
|
Model
|
P2.604
|
P2.97
|
P3.91
|
P4.81
|
|
Pixel Pitch(mm)
|
2.604
|
2.97
|
3.91
|
4.81
|
|
Pixel Matrix Per Sq.m
|
147,456dots
|
112,896dots
|
65,536dots
|
43,264dots
|
|
LEDs package
|
SMD1515
|
SMD1515
|
SMD2121
|
SMD2121
|
|
Brightness (cd/㎡)
|
≥5,500cd/㎡
|
≥5,500cd/㎡
|
≥5,500cd/㎡
|
≥5,500cd/㎡
|
|
Scan
|
1/32
|
1/28
|
1/16
|
1/13
|
|
Module Dimension
|
250*250mm
/0.82*0.82ft
|
250*250mm
/0.82*0.82ft
|
250*250mm
/0.82*0.82ft
|
250*250mm
/0.82*0.82ft
|
|
Cabinet Dimension
|
500*500*77mm
/500*1000*77mm
|
500*500*77mm
/500*1000*77mm
|
500*500*77mm
/500*1000*77mm
|
500*500*77mm
/500*1000*77mm
|
|
Cabinet Resolution
|
192*192dots
|
168*168dots
|
128*128dots
|
104*104dots
|
|
Cabinet Material
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
|
Cabinet Weight
|
7KG/13KG
|
7KG/13KG
|
7KG/13KG
|
7KG/13KG
|
|
Max. Power Consumption
|
800W
|
800W
|
800W
|
800W
|
|
Ave. Power Consumption
|
200-300W
|
200-300W
|
200-300W
|
200-300W
|
|
Service Access
|
Rear
|
Rear
|
Rear
|
Rear
|
|
Refresh Rate (HZ)
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|
Grey Scale (bit)
|
16
|
16
|
16
|
16
|
|
Viewing Angle (H/V)
|
160°/160°
|
160°/160°
|
160°/160°
|
160°/160°
|
|
Best Viewing Distance
|
2.6-26meters
|
2.97-29.7meters
|
3.91-39.1meters
|
4.81-48.1meters
|
|
IP Rate
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Input Voltage (AC)
|
110V-240V,50/60HZ
|
110V-240V,50/60HZ
|
110V-240V,
50/60HZ
|
110V-240V,50/60HZ
|
FAQ
Q: Who are we?
A: Our headquarters is located in Zhengzhou, China, and we have over 20 years of experience in LED display screens. Strong technical strength ensures excellent quality.
Q: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED
Screen and Etc.
Q: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How can we guarantee quality?
A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
Q: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED
Screen and Etc.
Q: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How can we guarantee quality?
A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
