Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
940*670*2mm
-
Panel Efficiency:
-
20.6%
-
Cell Type:
-
Hetero-junction cells
-
Pm:
-
130W
-
Vmp:
-
26.4V
-
Imp:
-
4.92A
-
Voc:
-
30.6V
-
Isc:
-
5.32A
-
Dimension:
-
940*670*2mm
-
Front Cover:
-
ETFE or PET
-
Junction Box:
-
IP67
-
Cable:
-
2.5mm², 900mm+MC4 connectors
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
Sunfield
-
Model Number:
-
SFED-F130HDT
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
940*670*2mm
-
Panel Efficiency:
-
20.6%
-
Cell Type:
-
Hetero-junction cells
-
Pm:
-
130W
-
Vmp:
-
26.4V
-
Imp:
-
4.92A
-
Voc:
-
30.6V
-
Isc:
-
5.32A
-
Dimension:
-
940*670*2mm
-
Front Cover:
-
ETFE or PET
-
Junction Box:
-
IP67
-
Cable:
-
2.5mm², 900mm+MC4 connectors
Product Description
Specification
|
MONO/POLY
|
MONO
|
|
Item No.
|
SFED-F130HDT
|
|
Cell brand
|
Hetero-junction solar cells
|
|
Maximum power (Wp)
|
130W
|
|
Maximum power voltage (V)
|
26.4
|
|
Maximum power current (A)
|
4.92
|
|
Open circuit voltage (V)
|
30.6
|
|
Short circuit current (A)
|
5.32
|
|
Cell efficiency (%)
|
≥24%
|
|
Number of cells (Pcs)
|
44 (4*11 pcs of 1/2 cells)
|
|
Size of cell (mm)
|
158.75*158.75
|
|
Size of module (mm)
|
940*670*2mm
|
|
Front side material
|
PET or ETFE
|
|
Junction Box Type
|
IP67, 2 bypass diodes inside
|
|
Cables and length
|
2.5mm², 900mm+MC4 connectors
|
|
Grommets
|
Φ6mm/8mm/10mm
|
|
Connector
|
MC4
|
|
Maximum System Voltage
|
700V
|
|
Maximum Series Fuse Rating
|
15A
|
|
Temperature Range
|
-40---+85℃
|
|
Power guarantee
|
5 years for the whole products, 90% power for 5 years, 80% power for 10 years.
|
Product Details
Product Features

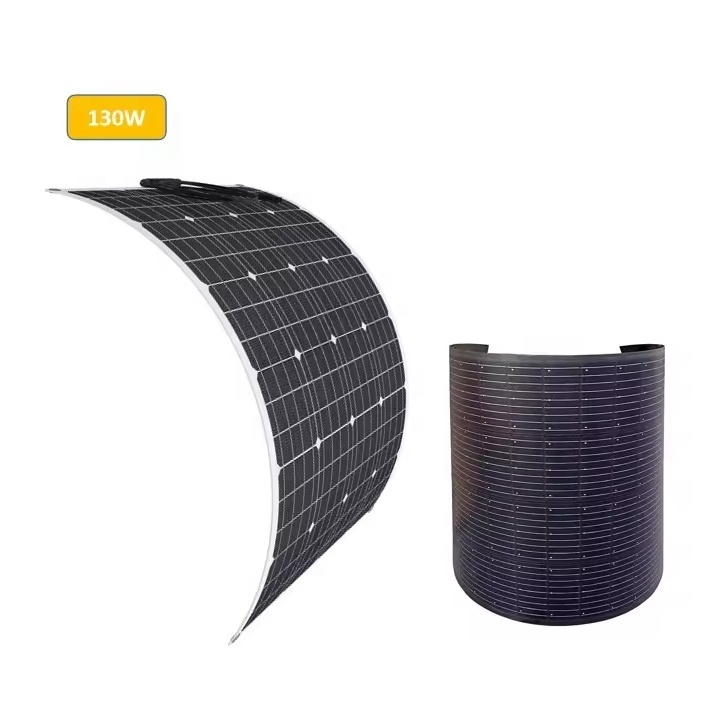

1) Better flexibility: can be bending angle up to 40-50 degrees.
2) Durable with TPT back sheet, no glass, no frame.
3) Light weight for easy carrying&shipment and installation, 83% lighter than normal rigid panel.
4) Thin: the thickness is only 2.0-2.5mm, which is more suitable to your yacht or RV roof , boat etc...
5) Can be stepped on it with soft soled shoes.
6) Made by double-side mono Hetero-junction solar cells, the efficiency can reach 25% max.
7) 30% high power output than market solar panels, steady perfect generate power performance.
8) Rounding corners to prevent from being scratched.
9) Hardening process surface prevent from scratched.
10) Can be installed with clue, adhesive, screws, or grommets at the corners.
11) Widely used: golf cars, yachts, boats, caravans, electric cars, travel tourism cars, patrol cars, roofs, camping, roof power generations, tents, portable bags, backpacks, portable generator kits etc..
Installation Instructions
Product Applications
Applications
Flexible solar panels can be widely used in car, electric vehicles, RVs, yachts, backpacks, tents, lamps, bus stations and other fields as long as there is sunshine, you can use it.
