Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Oreelaser
-
Weight (KG):
-
2000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Laser Metal Cutting Cnc Machine
-
Cutting materials:
-
Metal Materails
-
Model:
-
OR-FM
-
Working area:
-
3000x1500mm
-
Color:
-
Green-white
-
Power:
-
1000w/1500w/2000w/3000w
-
Name:
-
CNC Fiber Metal Laser Cutting Machine
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certificate:
-
CE
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
80m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Oreelaser
-
Weight (KG):
-
2000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Laser Metal Cutting Cnc Machine
-
Cutting materials:
-
Metal Materails
-
Model:
-
OR-FM
-
Working area:
-
3000x1500mm
-
Color:
-
Green-white
-
Power:
-
1000w/1500w/2000w/3000w
-
Name:
-
CNC Fiber Metal Laser Cutting Machine
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certificate:
-
CE

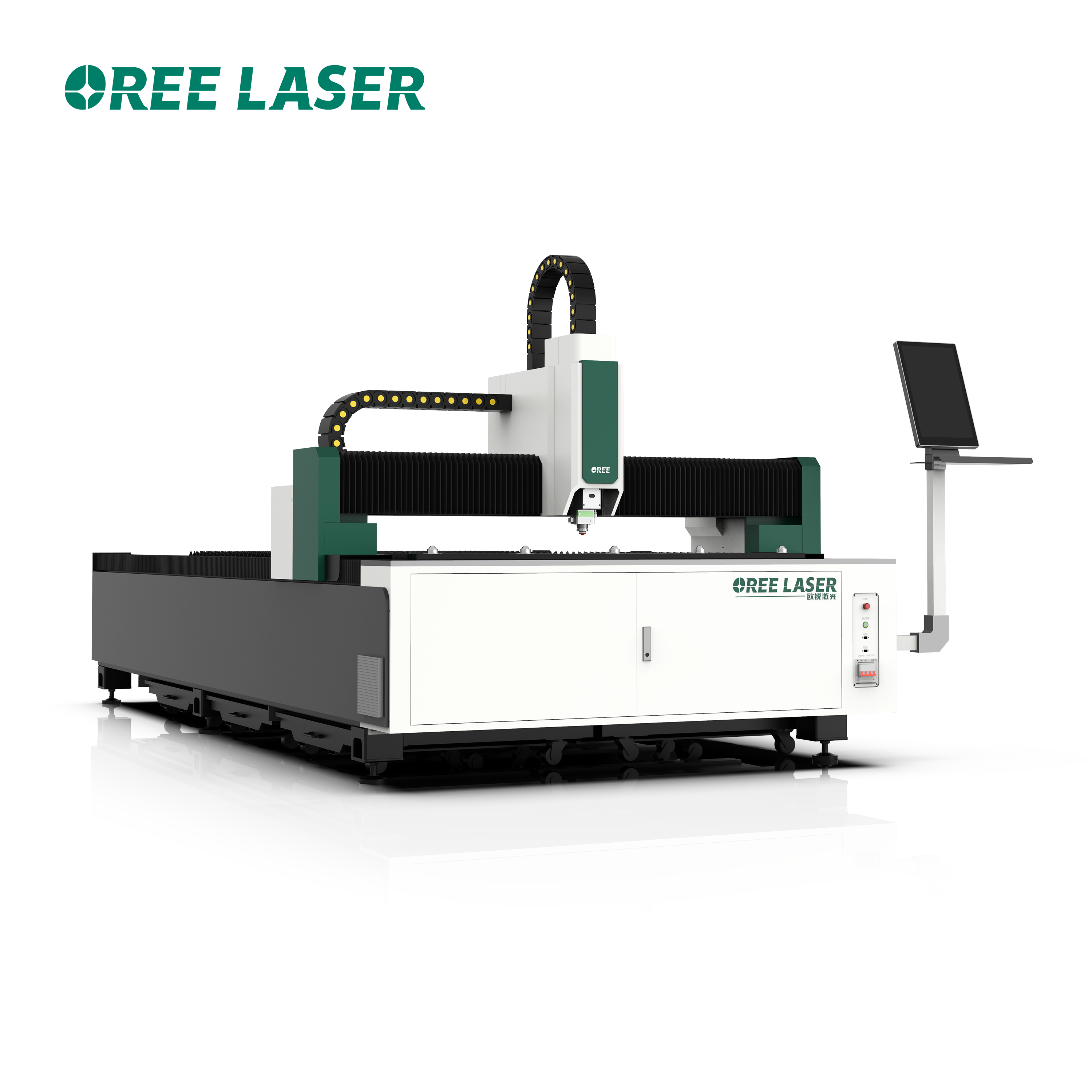

OR-FM Series
Middle Sheet Fiber Laser Cutting Machine
Product Description
Auto Focus Laser Head
Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.
Laser Source
Raycus/MAX/IPG, multiple choice
Different brands and different laser powers are available.
Intelligent Control System
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
High strength Tube Welding Machine Bed
It adopts 8mm high-strength steel pipe laser blanking, plug-in bed structure, adopts 3 welding processes, and the welding seam is not easy to tear.
The Fifth-generation Aviation Aluminum Alloy Beam
The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Partition Dusting
Adopts both sides of the bed exhaust structure, upgraded the air duct optimization, large caliber, multi-area; Compared with the intermediate structure, the pumping effect is significantly improved.
Specification
|
Model
|
OR-FM 3015
|
OR-FM 4015
|
OR-FM 6015
|
||
|
Laser Power
|
1000w~6000w
|
|
|
||
|
Working Area
|
3050*1530mm
|
4050*1530mm
|
6050*1530mm
|
||
|
Accuracy Of Positioning
|
±0.05mm
|
|
|
||
|
Repeat Repositioning Accuracy
|
±0.03mm
|
|
|
||
|
Max Movement Speed
|
80m/min
|
|
|
||
|
Laser source
|
MAX/Raycus/IPG
|
|
|
||
|
Max Acceleration
|
0.8G
|
|
|
||
Application
Oree laser fiber laser cutting machine for sale is an affordable, easy-to-use, and versatile tool that can help you begin a new start-up venture or increase the profits of your well-established company. This type of fiber laser cutter is suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
Widely used in kitchen appliances, sheet metal chassis cabinets, mechanical equipment, electronic equipment, lighting hardware, advertising signs, auto parts, fitness equipment and other metal products, sheet metal cutting processing and other industries.
Service Team& feedback
A
fter
-sales service & Customer visiting:
1.fiber laser cutting tube machine 3 years warranty except consumable parts;
2.Plenty of technical support online is available;
3.Quick Back-up Parts Available&Technical Assistance;
4."Training Video","Instruction Book",and"Operation Manual"will be offered;
