Quick Details
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1330*2400*2010
-
Weight:
-
500 KG
-
Output product name:
-
tea leave
-
Model:
-
DL-6CCQ-63
-
Dimension:
-
1000*780*1270 mm
-
Motor power:
-
0.75 kw
-
Teeth Distance:
-
4/6/8/10 mm
-
Cpacity:
-
300 kg/h
Quick Details
-
Brand Name:
-
DELI ASSISTANT
-
Place of Origin:
-
Fujian, China
-
Voltage:
-
380v, 380V / 50HZ
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1330*2400*2010
-
Weight:
-
500 KG
-
Output product name:
-
tea leave
-
Model:
-
DL-6CCQ-63
-
Dimension:
-
1000*780*1270 mm
-
Motor power:
-
0.75 kw
-
Teeth Distance:
-
4/6/8/10 mm
-
Cpacity:
-
300 kg/h
| *** DESCRIPTION *** |

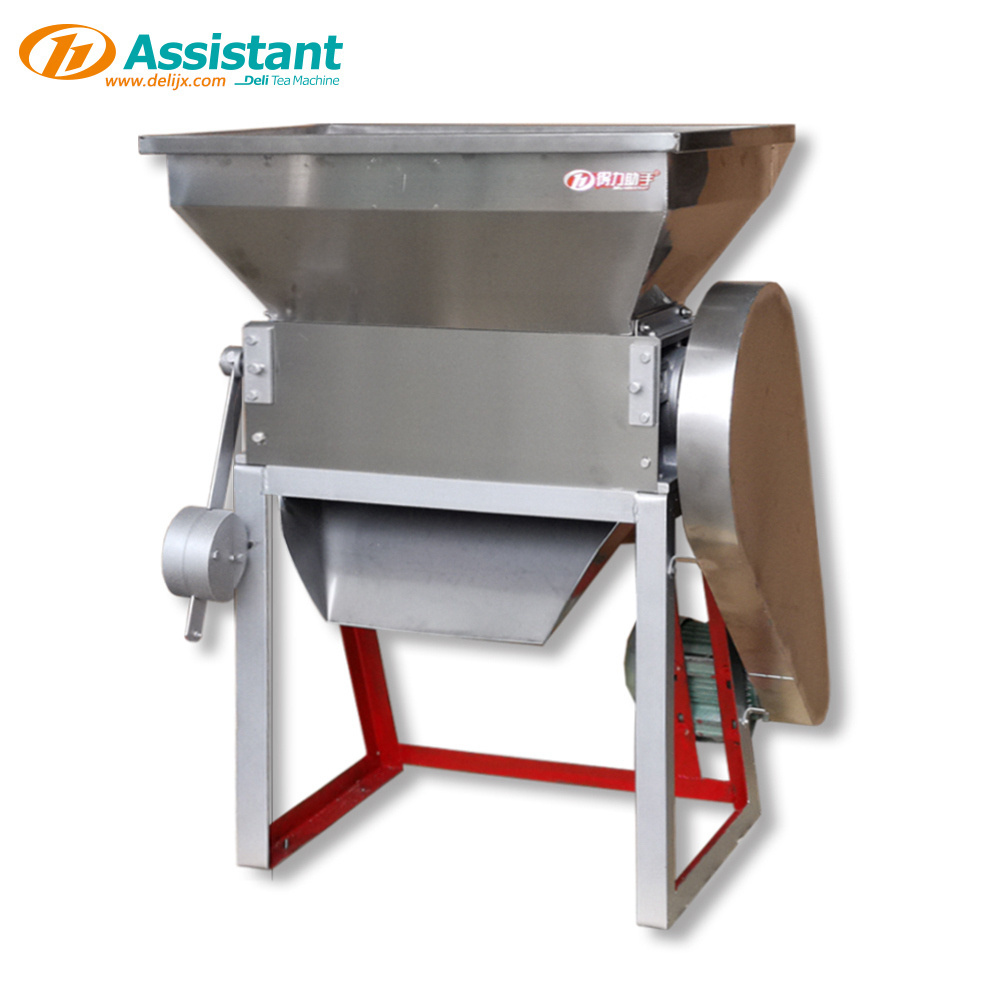

Tea fragments shredder machine
is mainly used in the subsequent processing of tea.Shred the finished tea into small pieces of about 1-3 mm which is convenient for packaging into tea bags for sale.
Not only can shredding tea leaves, but also shredding plant leaves such as herbs, mint, lotus leaves, etc. Using high-strength alloy steel as a grinding roller, and the size of tea powder can be adjusted, which is the ideal supporting equipment for making teabags.
The spacing between each tooth has 4mm, 6mm, 8mm, 10mm and 12mm, you can choose different teeth roller according to your needs
| *** ADVANTAGE *** |
1. Use high hardness alloy steel as grinding roll, which is more durable.
2. Adjustable size and fineness of tea fragments.
3. Reasonable layout, more uniform pulverization of tea.
4. It can not only crush tea, but also process dry mint, dried flowers and other materials.
| *** APPLICATION *** |
Tea Shredder Machine is suitable for processing all kind tea,and packing the powder and tea fragment into tea bags, the following is the working time required for the above tea production.
| Type Of Tea | Shredding Size |
| Black Tea | 1-12 mm |
| Green Tea | 1-12 mm |
| White Tea | 1-12 mm |
| Oolong Tea | 1-12 mm |
| Herbal Tea | 1-12 mm |
The above data is for reference only, and the specific processing time shall be determined according to the actual situation.
| *** SPECIFICATION *** |
Tea Crushing Shredding Machine specification list:
| Model | DL-6CCQ-63 |
| Dimension | 780*1000*1270 mm |
| Input voltage | 380V / 50HZ |
| Cutting roller diameter | 96 mm |
| Cutting roller length | 630 mm |
| Distance of roller and blade | 0.3 mm |
| Cutting roller speed | 260 rpm |
| Motor power | 0.75 kw |
| Cpacity | 300 kg/h |
If you have special need, it can be customized according to the needs of customers.
| *** PHOTOS *** |
| PACKING&DELIVERY |
All models of our machines are in stock. Our delivery time is usually about 1-2 days.
Because tea production equipment is a large cargo, we usually deliver them to you by sea.
1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build a steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.
