Quick Details
-
Product Name:
-

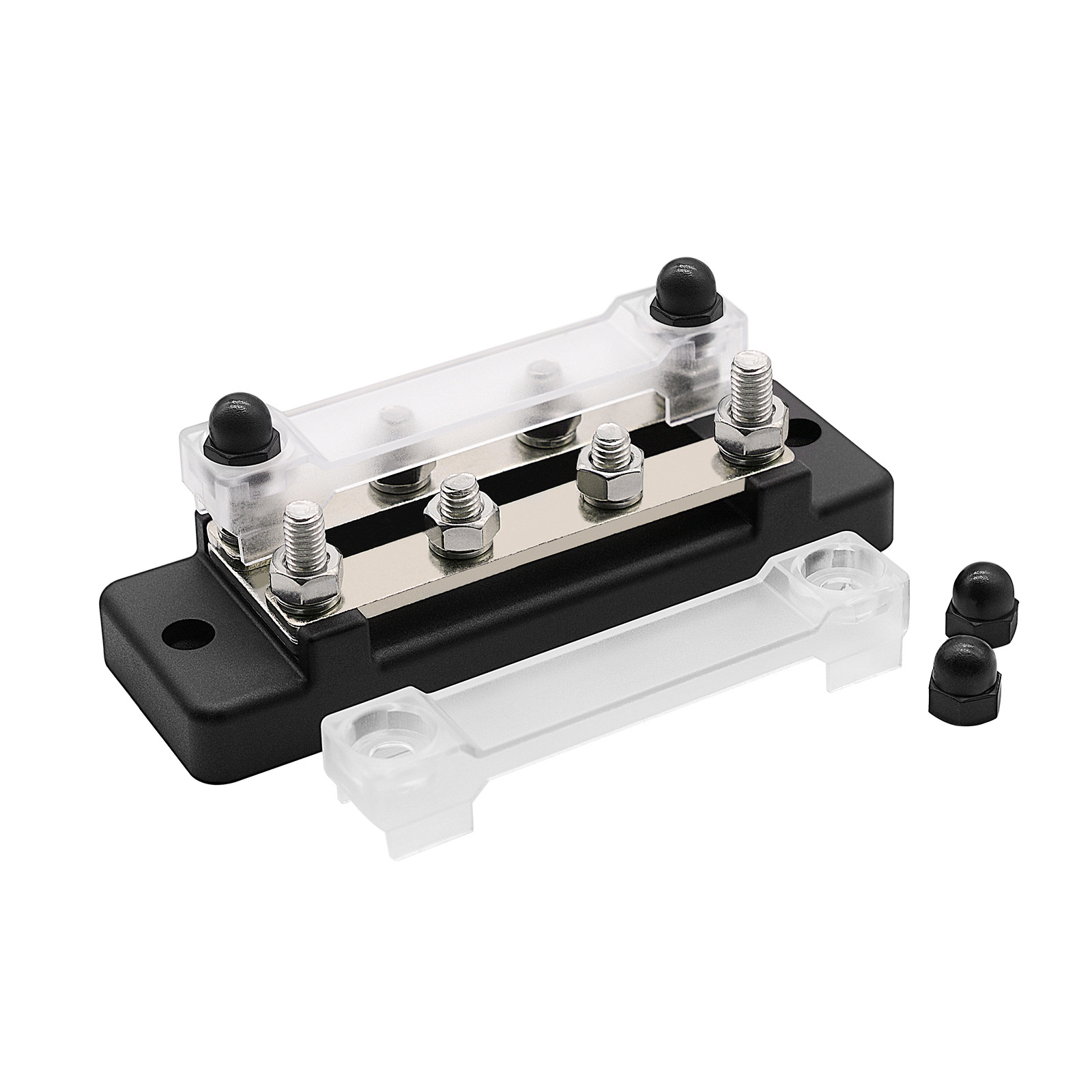

2 Way Double Row Mini Bus Bar with Cover
-
Material:
-
PC/Stainless steel/Brass
-
Input Voltage:
-
12-48V/DC; 110-300V/AC
-
Maximum Voltage:
-
300V/AC; 48V/DC
-
Gross Weight:
-
178g
-
Package Size:
-
225*100*43mm
-
Product type:
-
Power Distribution
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
ZH-1703B3
-
Product Name:
-
2 Way Double Row Mini Bus Bar with Cover
-
Material:
-
PC/Stainless steel/Brass
-
Input Voltage:
-
12-48V/DC; 110-300V/AC
-
Maximum Voltage:
-
300V/AC; 48V/DC
-
Gross Weight:
-
178g
-
Package Size:
-
225*100*43mm
-
Product type:
-
Power Distribution
Products Description
|
Product Name
|
2-way double row solid plastic base with PC dust cover busbar+OT terminal
|
|
Product Model
|
ZH-1703B3
|
|
Product Weight
|
178g
|
|
Product Size
|
120*40*42.8mm
|
|
Package Size
|
225*100*43mm
|
|
Packaging Method
|
PE bag packaging
|
|
Input Voltage
|
12-48V/DC; 110-300V/AC
|
|
Maximum Voltage
|
300V/AC； 48V/DC
|
|
Rated Current
|
130A/AC； 150A/DC
|
|
Product Material
|
Nickel plated brass contact plate/PC insulating cover/polycarbonate nylon base/stainless steel screws
|
|
Terminal Stud
|
M6*4
|
Scope of use:
Automobile, pickup truck, trailer, RV, motorcycle, recreational vehicle, truck, truck, caravan, yacht, ship, etc
Product accessories:
M4 stainless steel fixing screw * 2; O-terminal RV1.25-6 * 8
Product Advantages:
【1】
Nickel plated copper
bus contact plate has low resistance, good conductivity and corrosion resistance protection. Hightemperature resistance, wear resistance, more safe to use. Multiple terminal bus poles are very suitable for automobile and ship wiring, help to sort out and clean up the messy wiring, and are suitable for various types of
power supply and ground distribution.
【2】Reinforce the connection between
polycarbonate cover and nylon nut
to prevent accidental short circuit
【3】The
transparent polycarbonate shell
adds additional protection, fire protection, dust prevention and accidental touch prevention. Environmentally friendly flame retardant nylon base, with the best mechanical strength and durability. Stainless steel studs and screws are rust proof and anti-corrosion, suitable for any environment
【4】
Widely used
in automobiles, pickup trucks, trailers, RV, motorcycles, recreational vehicles, trucks, trucks, caravans, yachts, ships, etc. Multi position single row bus provides a clean and tidy surface for any installation of your ship or car, which is very
suitable for all your electrical wiring projects
.
Easy to install and secure with M4 screws
【5】The terminal thread fastener is made of
stainless steel opening and ring lock washer
, which can maintain stability in high vibration environment
Application Note:
①②③④
interfaces in the picture, any one of them can be connected to the positiveelectrode or negative electrode of the battery.For example:Any one of the
①②③④
is connected to the neg-ative electrode of the battery, and the other three interfaces need to connected to the negative electrodeof the electrical appliance; Other wires are consistent with
②③④
