Quick Details
-
Material Width:
-
40~250mm
-
Machine type:
-
Wound core winding machine
-
Mandrel Diameter:
-
115-750mm
-
Max. Core OD:
-
800mm
-
Max. Core Weight:
-
400kg
-
Material Thickness:
-
0.18 ~ 0.50 mm
-
Max. Speed:
-
60m/min
-
Accuracy:
-
<0.5mm
-
Servo Motor:
-
3 pieces
-
Capacity:
-
10KW
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
TRANSEASE
-
Weight (KG):
-
2450
-
Material Width:
-
40~250mm
-
Machine type:
-
Wound core winding machine
-
Mandrel Diameter:
-
115-750mm
-
Max. Core OD:
-
800mm
-
Max. Core Weight:
-
400kg
-
Material Thickness:
-
0.18 ~ 0.50 mm
-
Max. Speed:
-
60m/min
-
Accuracy:
-
<0.5mm
-
Servo Motor:
-
3 pieces
-
Capacity:
-
10KW

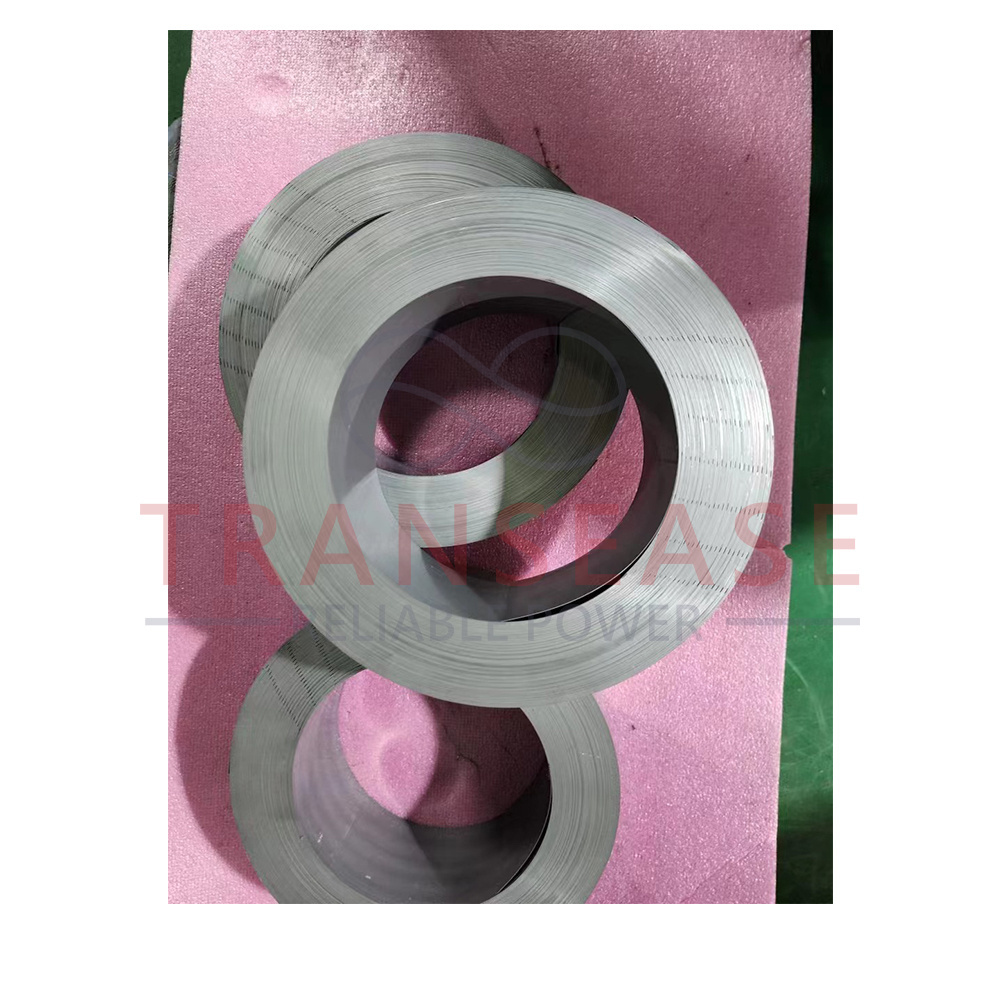

Wound Core Winding Machine is designed and built for the production of
toroidal core, toroidal wound core with gap or step-lap, it equipped with the latest computer
system and servo drive to control the feed, the cut and winding mechanisms, and it can process the
strip up to 250 mm, Max core OD up to 800mm.
For Distribution Transformers provides a highly flexible, accurate and reliable production system
with all the inherent advantages of wound core technology, such as very low core loss, fast
assembly and high output relative to capital investment.
Main Features
Automatic feeding, guiding, wrapping, winding and cutting.
Germany Siemens Control System and Siemens HMI Touch Screen with high arithmetic
speed and powerful functions.
Produce both distributed gap core and toroidal core.
With vertical 2-15 steps, 1-3 pieces per step.
The gas size and feed speed can be adjustable on the HMI.
The less labour and less errors by auto wrapping technology.
Equipped with tungsten steel cutting units to improve the durability.
SMC (Japan) pneumatic components, other electrical components from Europe and Japan.
Germany Siemens Servo motor , imported servo reducer, linear guideway and bearings
Winding core: OD(Max)=Ø800mm , Height=40-250mm
|
Material Width
|
40~250mm
|
|
Mandrel Diameter
|
115-750mm
|
|
Max. Core OD
|
800mm |
| Max. Core Weight | 400kg |
| Material Thickness | 0.18 ~ 0.50 mm |
| Max. Speed | 60m/min |
| Accuracy | <0.5mm |
