Quick Details
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
110V/220V/230V
-
Power:
-
16kw
-
Dimension(L*W*H):
-
1750*660*1660mm
-
Weight:
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
honey extractor
-
Application:
-
Original Honey Processing
-
Usage:
-
Honey Extrator
-
Material:
-
Stainless Steel
-
Capacity:
-
1.2-1.5T/hour
-
Model:
-
FM-400/600
-
Package:
-
1 Set/ Carton
-
MOQ:
-
1 Set
-
Color:
-
Gray
-
Certification:
-
ISO9001:2008
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
110V/220V/230V
-
Power:
-
16kw
-
Dimension(L*W*H):
-
1750*660*1660mm
-
Weight:
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
honey extractor
-
Application:
-
Original Honey Processing
-
Usage:
-
Honey Extrator
-
Material:
-
Stainless Steel
-
Capacity:
-
1.2-1.5T/hour
-
Model:
-
FM-400/600
-
Package:
-
1 Set/ Carton
-
MOQ:
-
1 Set
-
Color:
-
Gray
-
Certification:
-
ISO9001:2008
Introduction of honey processing machine :
Currently, honey extractor main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
Technical parameters of honey processing machine :
|
Model |
FM-600 |
FM-400 |
|
Production capacity |
1.2-1.5t/8h |
0.4-0.5t/8h |
|
Machine dimension |
1750*600*1660 |
1600*500*1555 |
|
Tank diameter |
600mm |
400mm |
|
Tank height |
600mm |
600mm |
|
The overall volume |
140L |
70L |
|
Effective volume |
120L |
60L |
|
Preheat tank power |
6KW |
|
|
Vacuum concentration tank power |
9KW |
|
Features
of honey processing machine
:
1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.
Structural drawing of honey processing machine :

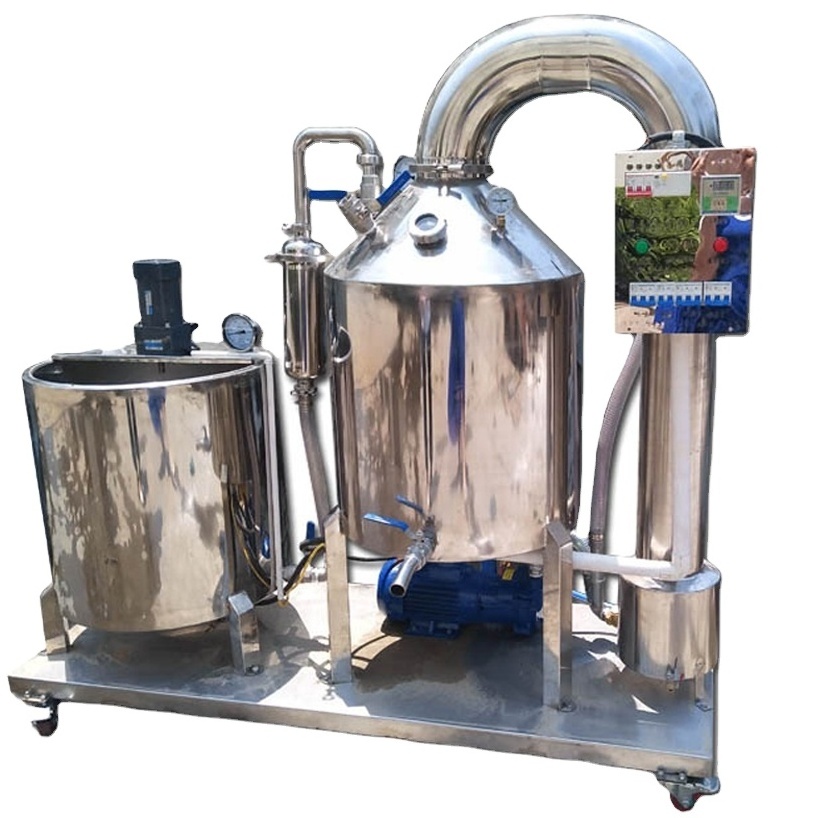

Actual pictures of honey processing machine :
Working pictures of honey processing machine :
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
