Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIANDA
-
Model Number:
-
ASTM
-
Type:
-
Roofing Felt
-
Brand name:
-
Jianda
-
Material:
-
mat paer and asphalt
-
Size:
-
36*72
-
Tensile:
-
133,9 +/- 59,5 N
-
Usage:
-
steep slope roofing underlayment
-
Smell:
-
no smell
-
Package:
-
packed in rolls with pallet
-
MOQ:
-
1000rolls
-
Mass:
-
238,8 +/- 1,3 g/m2
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIANDA
-
Model Number:
-
ASTM
-
Type:
-
Roofing Felt
-
Brand name:
-
Jianda
-
Material:
-
mat paer and asphalt
-
Size:
-
36*72
-
Tensile:
-
133,9 +/- 59,5 N
-
Usage:
-
steep slope roofing underlayment
-
Smell:
-
no smell
-
Package:
-
packed in rolls with pallet
-
MOQ:
-
1000rolls
-
Mass:
-
238,8 +/- 1,3 g/m2
kraft ASTM waterproof building paper
|
rooifng felt
|
|||||||||||||||||||||||||||
|
Roofing Felt

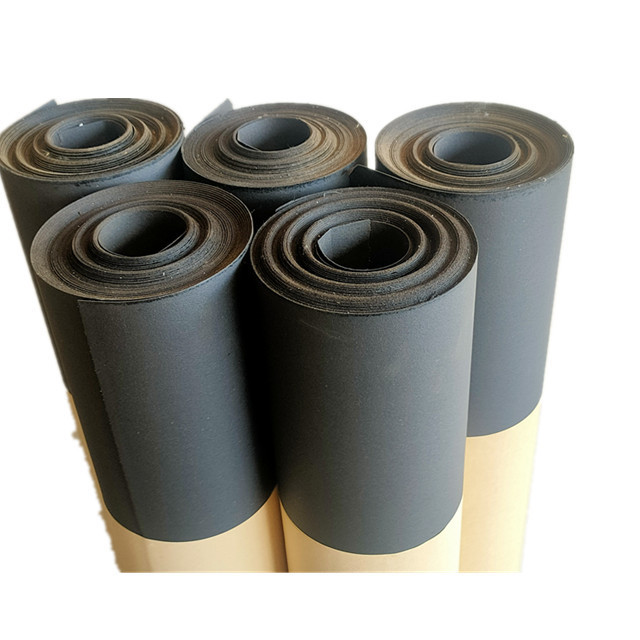

Description: A heavy-weight asphalt roofing felt made of a specially formulated organic sheet which has been fully saturated with waterproofing asphalt.
Uses: A roofing felt used as an underlay beneath asphalt shingles, wood shakes, tiles and other sloped coverings.
Physical Specificatons: Average roll weight,Lbs/roll:54lbs
Packaging:
Width:36''(0.914m)
Rolls per pallet:30 |
Physical requirements:
|
Test item |
ASTM D-226 15# |
ASTM D-226 30# |
ASTM D-4869 15# |
ASTM D-4689 30# |
|
Pliability at 23±2°C.tested shall not crack when bent 90°at a uniform speed over a rounded corner of radius in table for each |
12.7mm (radius) |
12.7mm (radius) |
12.7mm (radius) |
12.7mm (radius) |
|
Tear strength at 23±2°C min |
2.5N |
2.5N |
2.5N |
2.5N |
|
Breaking strength at 23±2°C min MD |
30LBF/in |
40lbf/in |
30lbf/in |
40lbf/in |
|
Breaking strength at 23±2°C min CD |
15lbf/in |
20lbf/in |
15lbf/in |
20lbf/in |
|
Loss on heating at 105°Cfor 5h max |
4.0% |
4.0% |
6.0% |
6.0% |
|
Width of the roll |
36 in |
36 in |
36 in |
36 in |
|
Area of the roll |
432 ft2 |
216 ft2 |
216 ft2 |
216 ft2 |
|
Net mass of saturated felt,min |
560 g/m2 |
1270g/m2 |
400g/m2 |
660g/m2 |
|
Saturation,%by wt., min |
120% |
150% |
100% |
120% |
